Family specifications
Ranges across every order code of the family. The exact values of a specific order code are in the table below: the «Specifications» button in its row.
Light technical
Luminous flux (lm)
595–2,805 lm
Efficacy (lm/W)
80–90 lm/W
CCT (K)
3000 / 4000
Color rendering
90-99
Light distribution
Medium beam angle 24º / Medium beam / Medium beam angle 36º / Wide beam
UGR value
Not applicable
Optical cover
Polycarbonate
Electrical and controls
Wattage (W)
7–33 W
Dimming controls
-
Mechanical and housing
Mounting type
-
Housing material
Aluminium
Color of Housing
Black / White
IP rating
IP20
IK rating
IK03

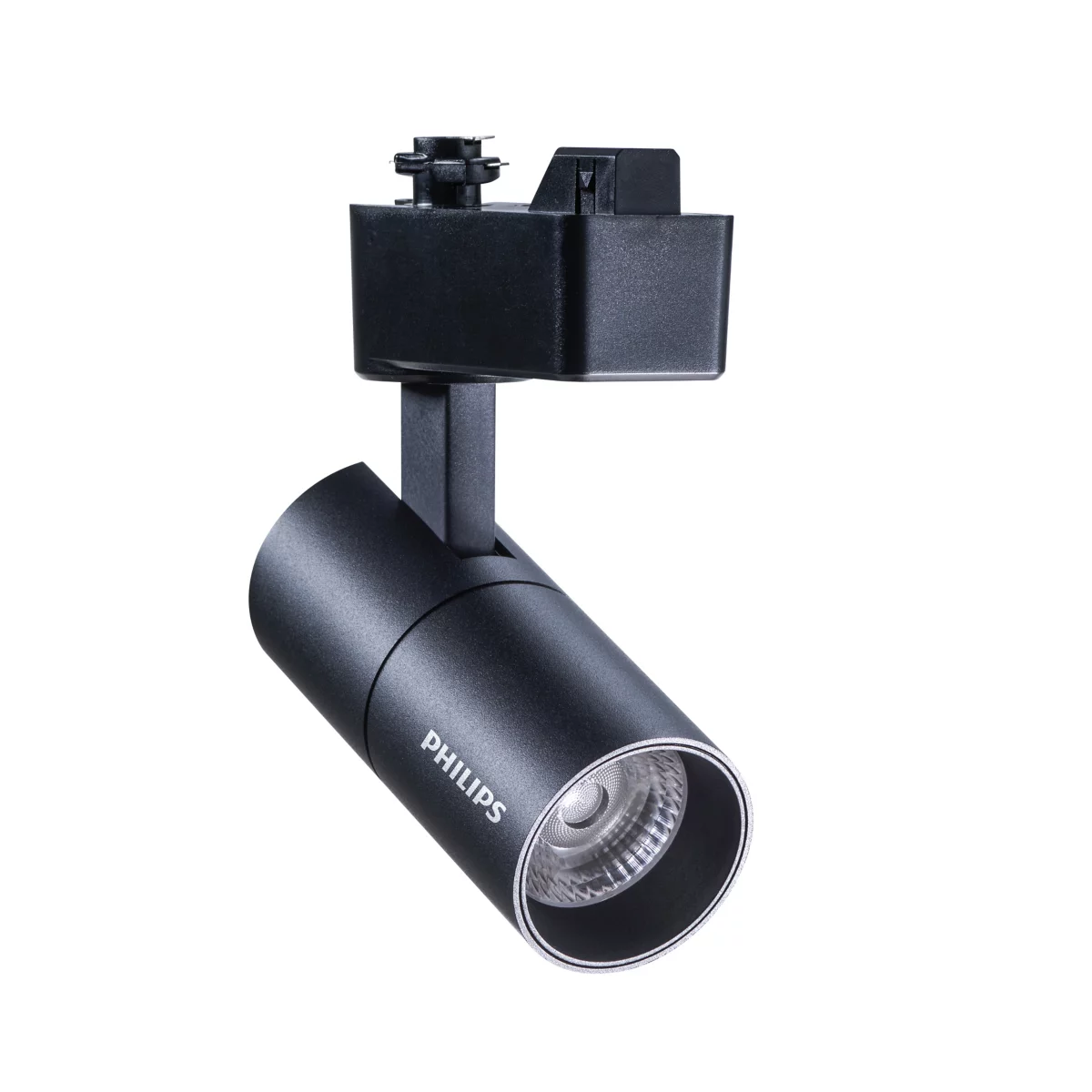

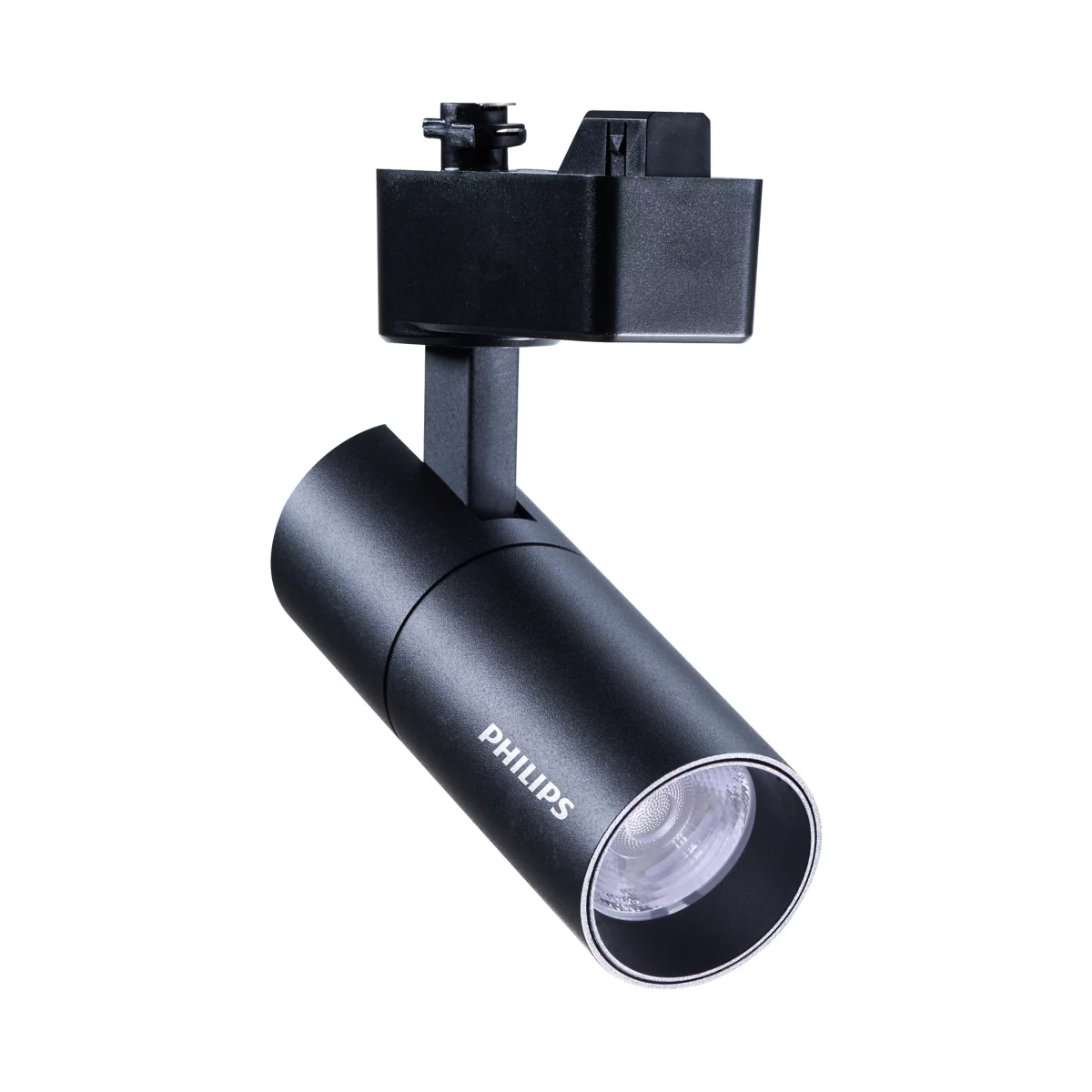

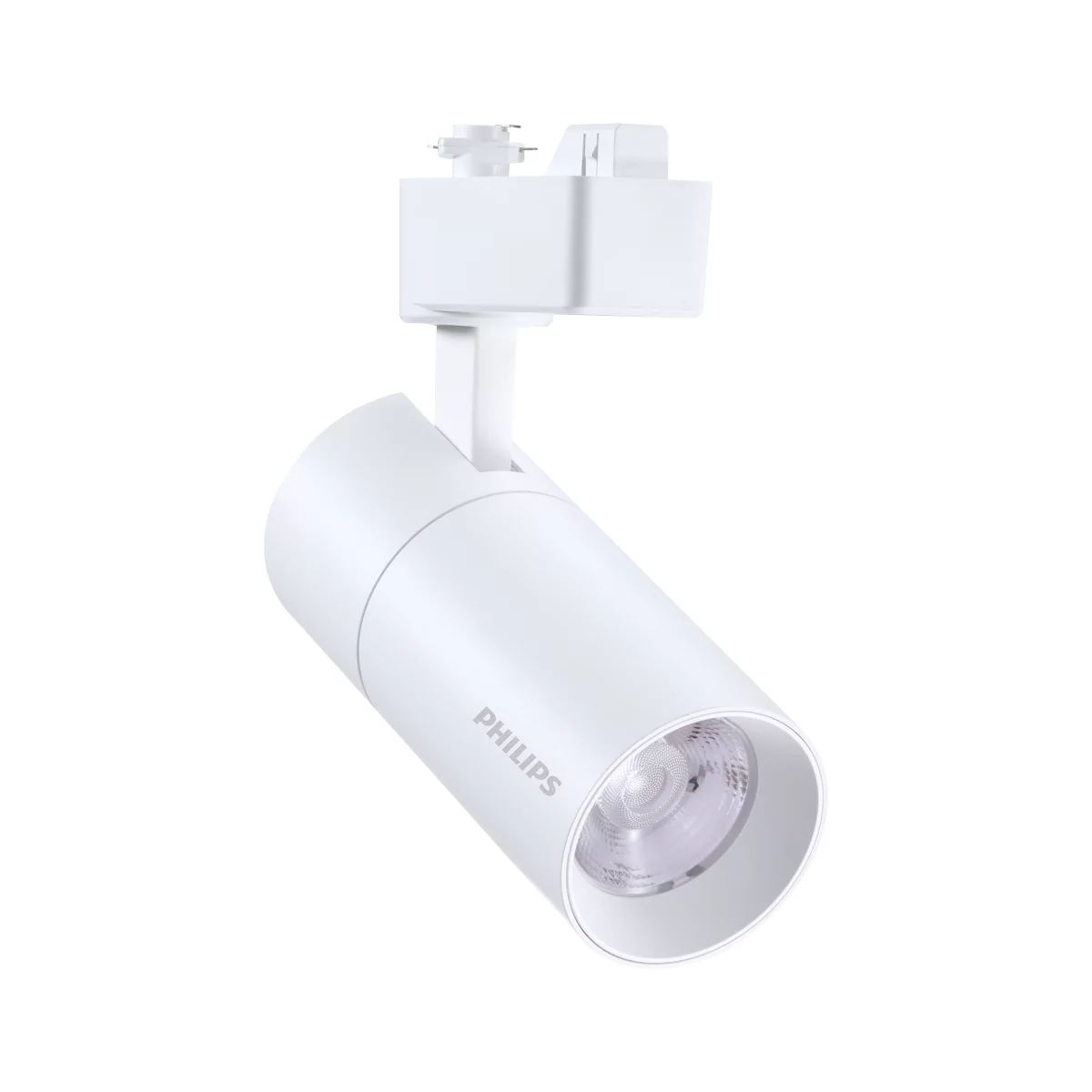

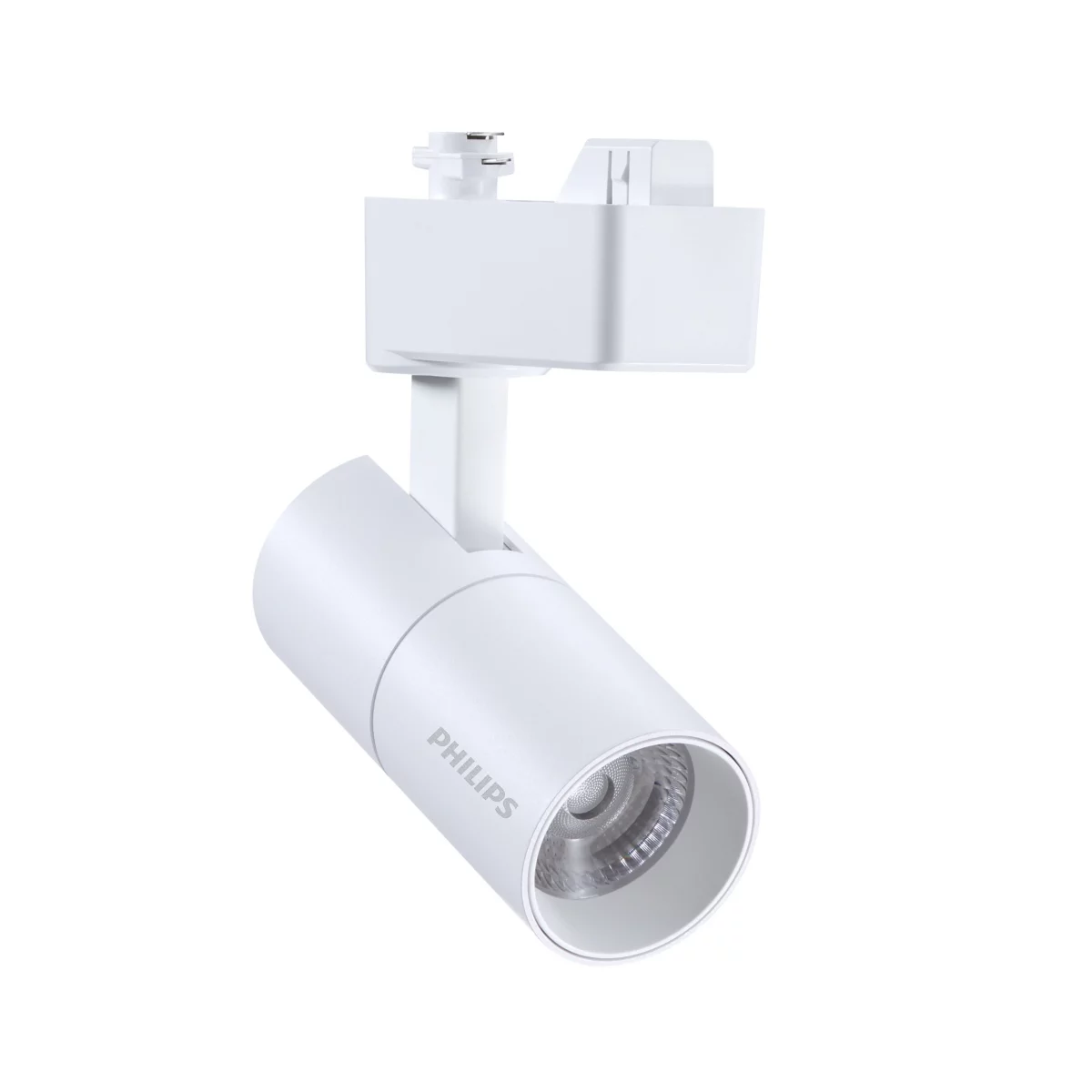

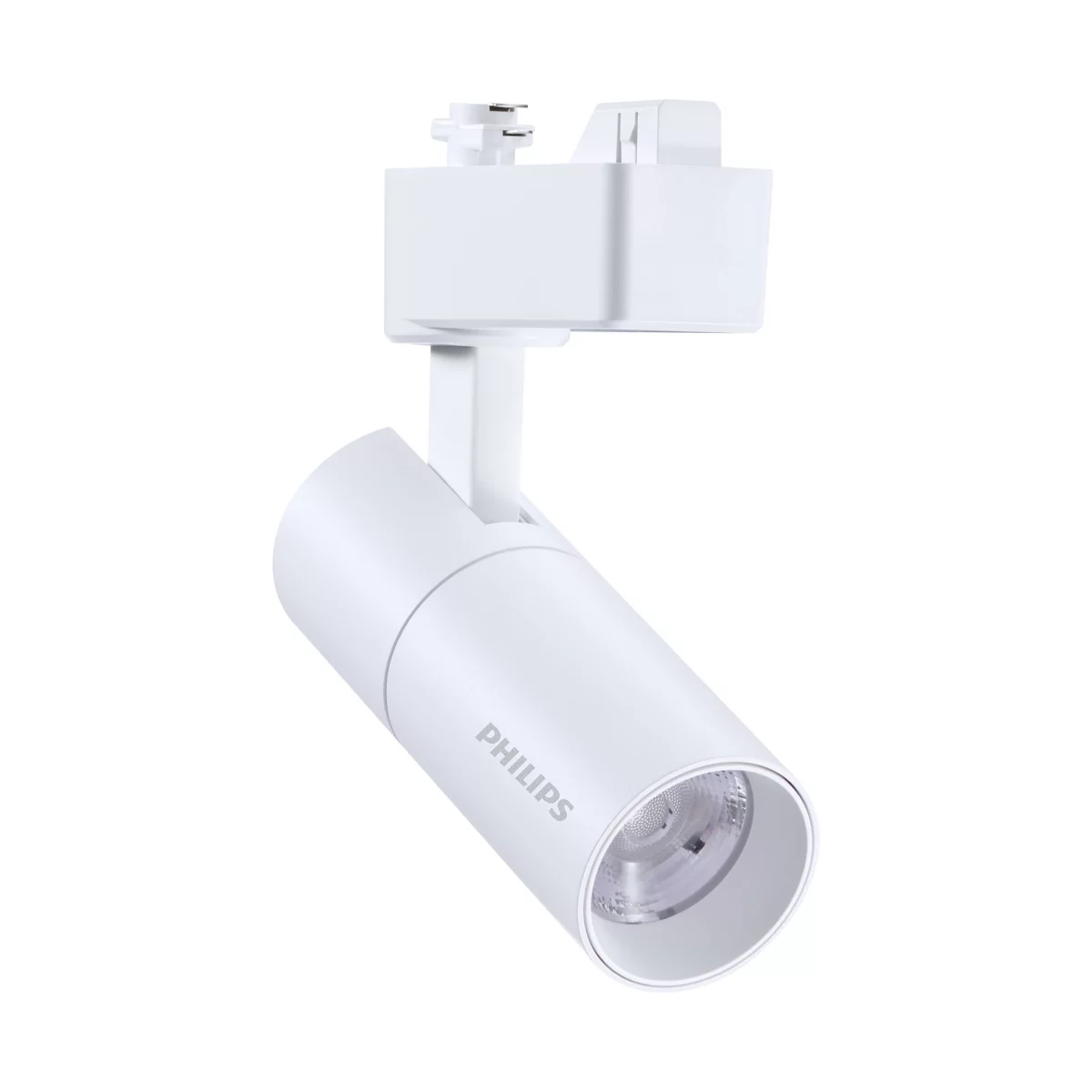

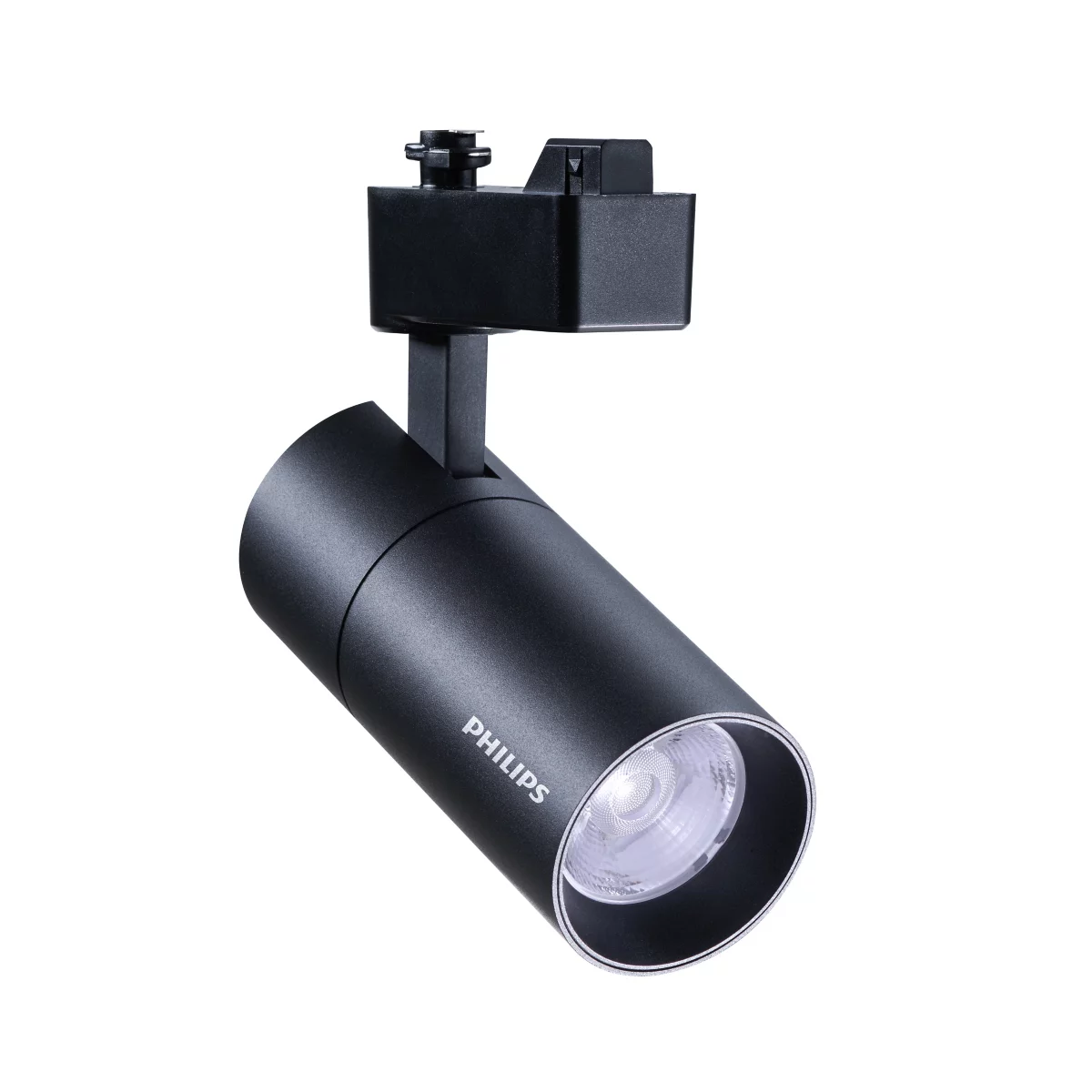

Essential SmartBright Projector ST033T is a value for money product designed for Mass market trade. It is designed to replace halogen and CDM-standard-based projectors for retail and hospitality applications. This track based luminaire supports retailers to let their products stand out, or highlight certain objects. The clean and contemporary design with integrated driver, and choice in 24 or 36 degree beam angle makes the Essential SmartBright Projector relevant to many applications. The choice of 2 colors in White and Black helps the Retailer to choose products best suited to blend into the Store Environment. Compared to it’s predecessor, it is not only cost effective, but also a more sleek and lighter product design. The product family includes 1M and 2M Track in Black and white color with I and L connector to support various applications.
Features
Unobtrusive design in white or black finish
24 and 36 degree beam angle with Lumen output ranging from 800-2500 Lm.
Energy-efficient: 80 lm/W
Integrated driver and uniform track adaptor
color temperature 3000 or 4000 K
Benefits
Reduced operating costs thanks to energy savings and longer lifetime, compared to conventional CDM-standard-based projectors
Value for Money product for Mass market retail applications
Clean, simple finish ensures Essential SmartBright Projector blends into many interior designs.
