List the order codes — we prepare a quotation and check availability. · 45 order codes
Family specifications
Ranges across every order code of the family. The exact values of a specific order code are in the table below: the «Specifications» button in its row.
Light technical
Luminous flux (lm)
1,900–8,000 lm
Efficacy (lm/W)
90.5–155 lm/W
CCT (K)
2200 / 2700 / 3000 / 4000 +1
Color rendering
80-89 / 90-99
Light distribution
High-reflective metal reflector Rectangular beam / Narrow beam angle 12° / Medium beam angle 24º / Medium beam +8
UGR value
19 / 22
Electrical and controls
Wattage (W)
17.4–59 W
Dimming controls
DALI / Wireless
Connectivity
Interact Ready
Mechanical and housing
Housing material
Polycarbonate
Color of Housing
Black / Grey / White
IP rating
IP20
IK rating
IK02
Length (mm)
158–565 mm
Width (mm)
92 mm
Height (mm)
180–200 mm

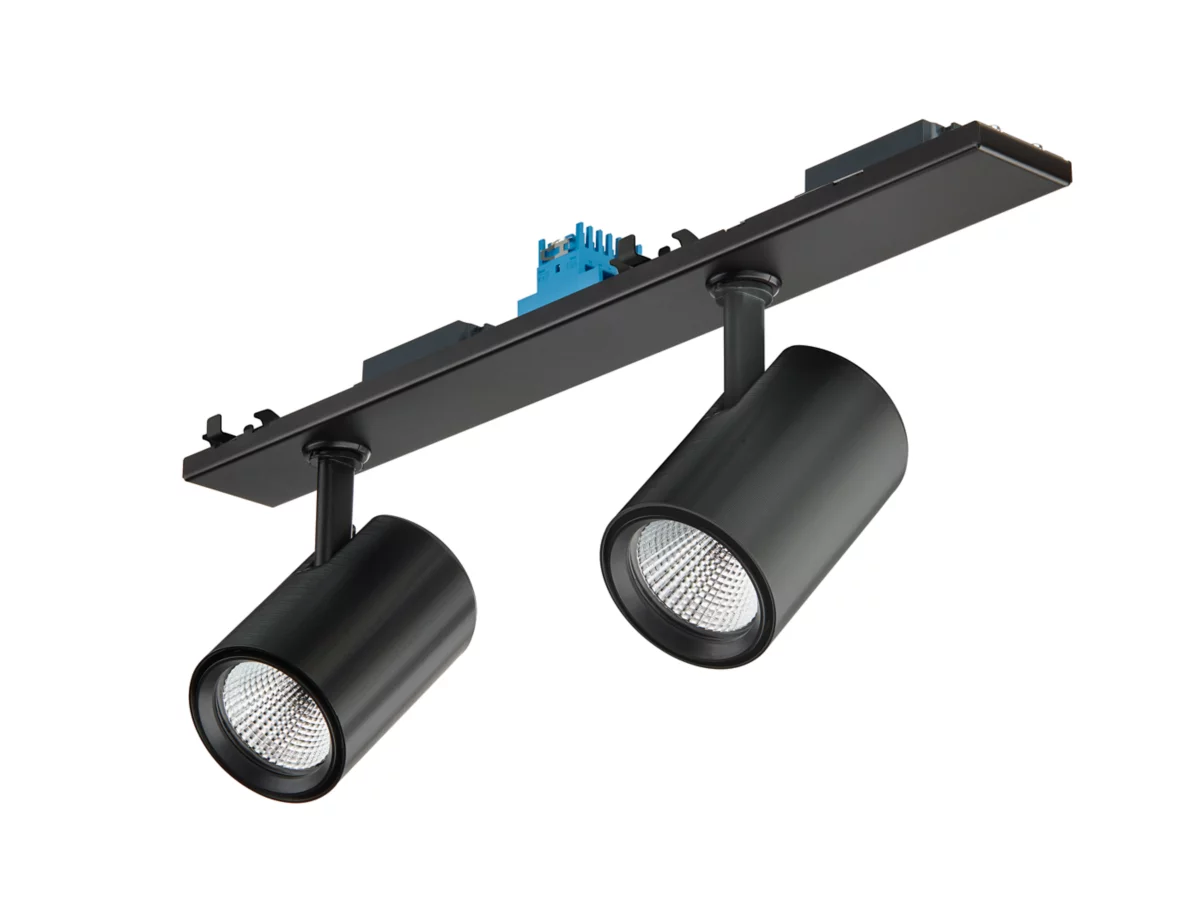

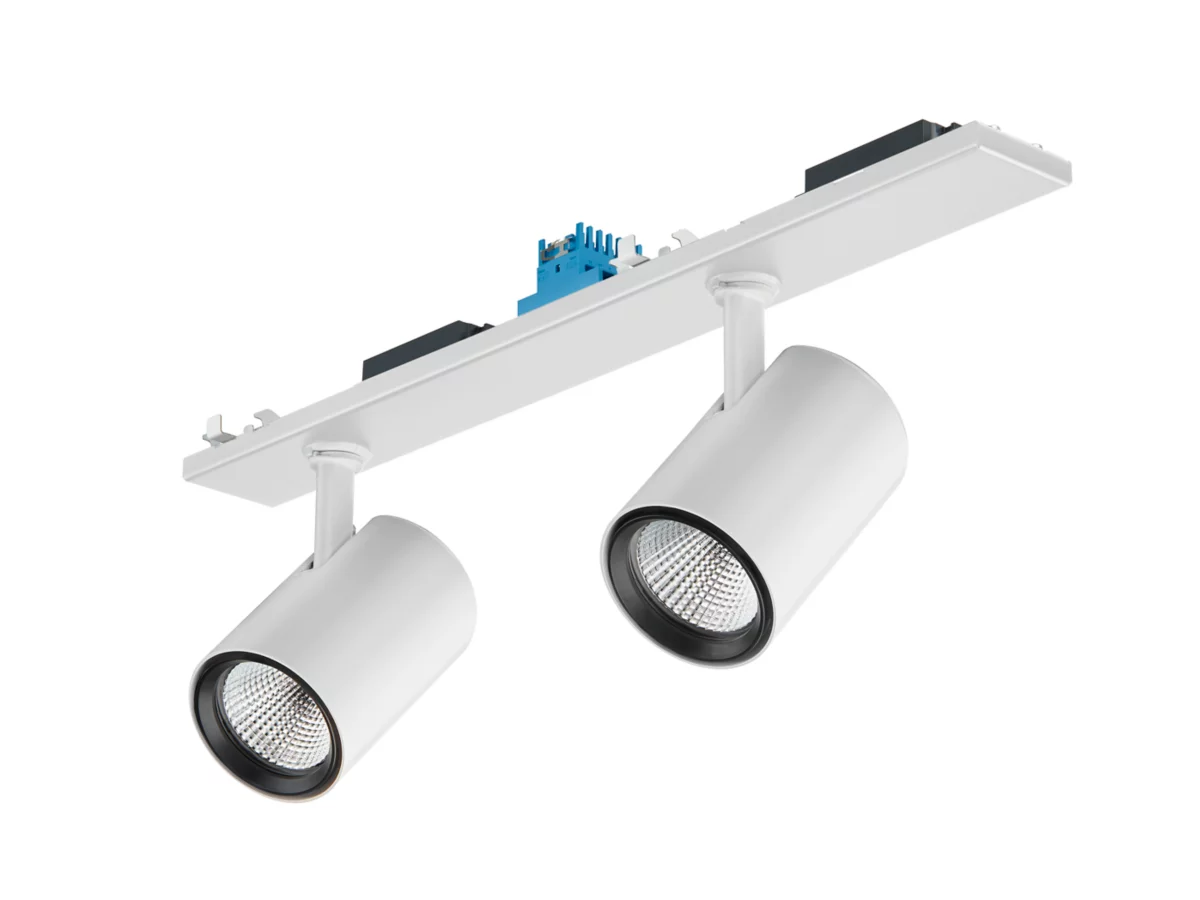

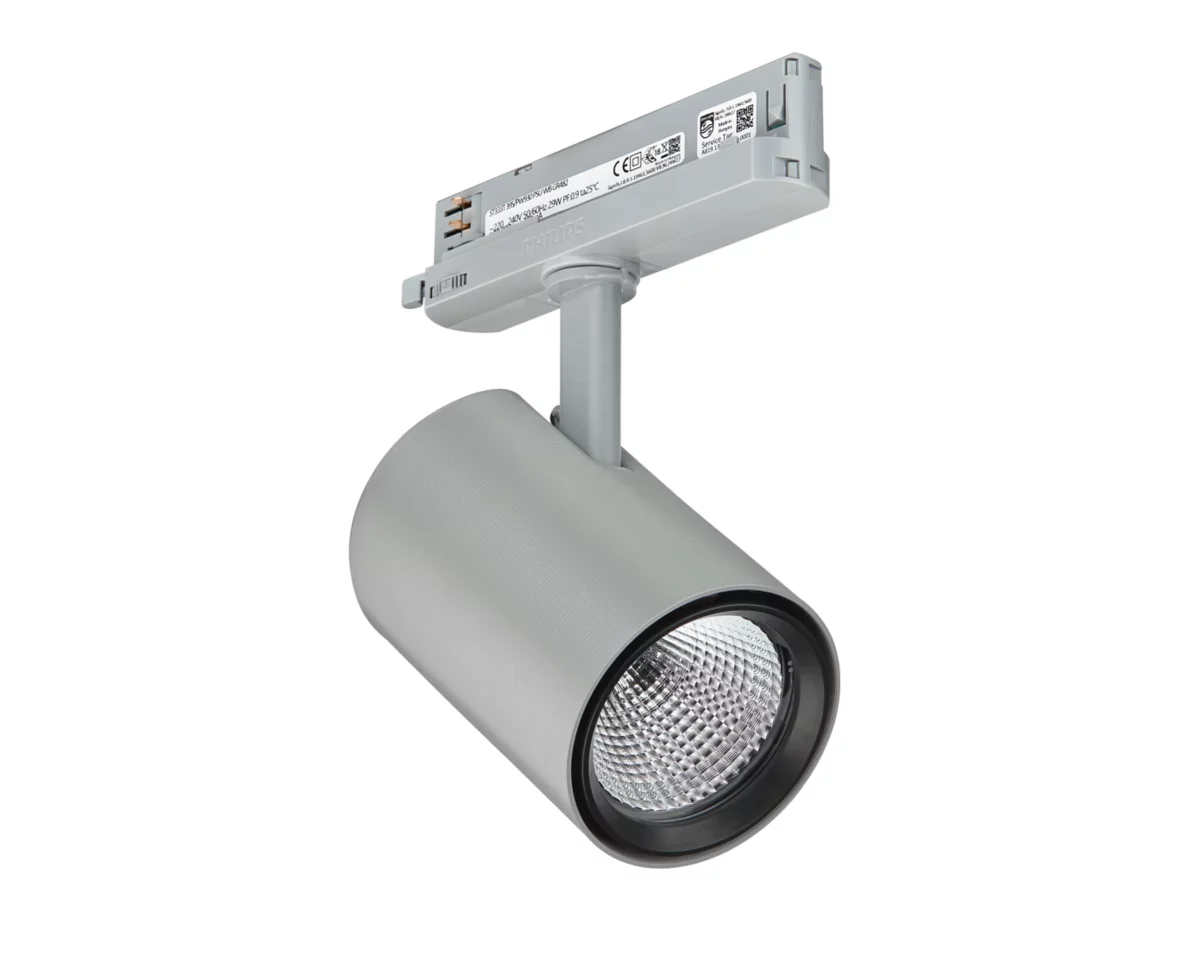

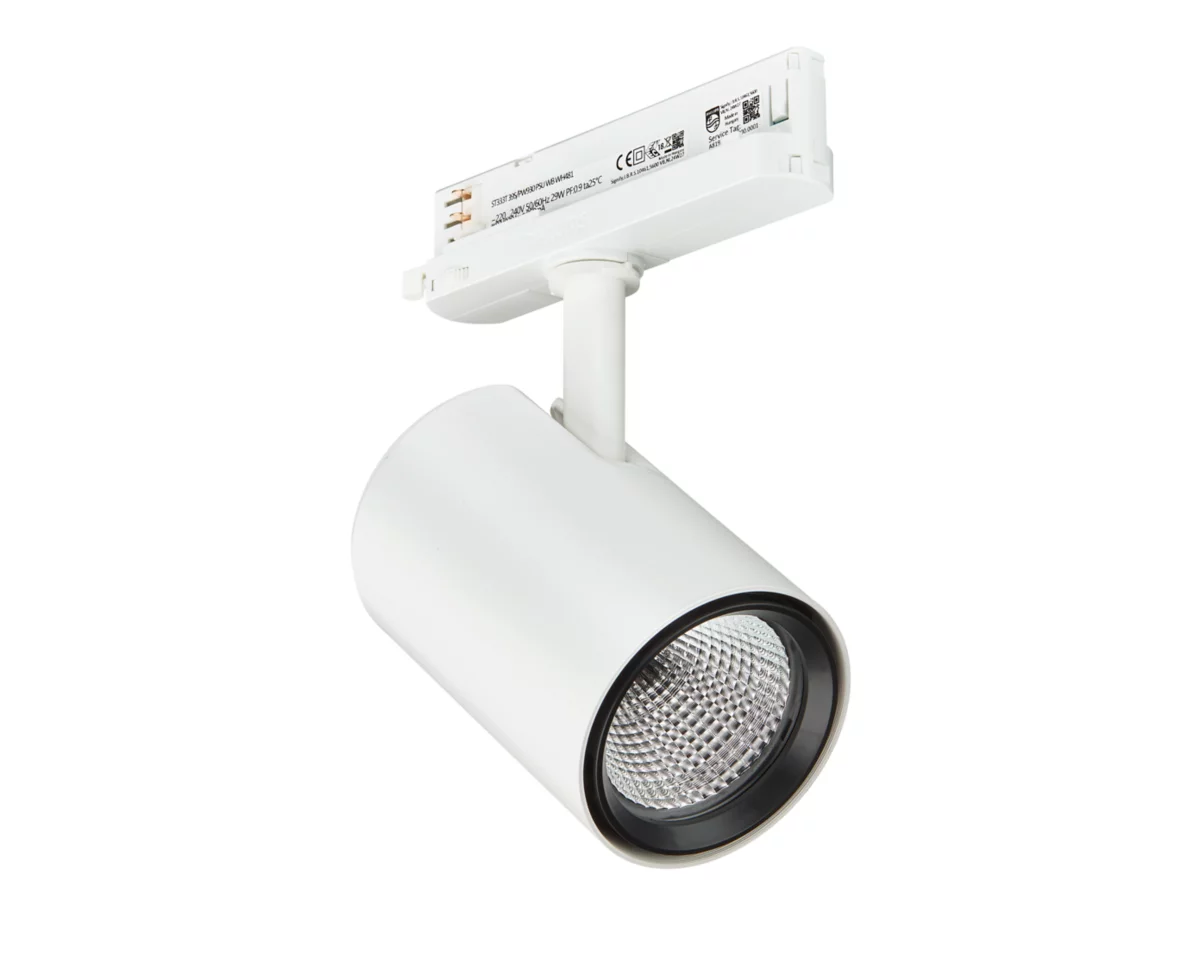

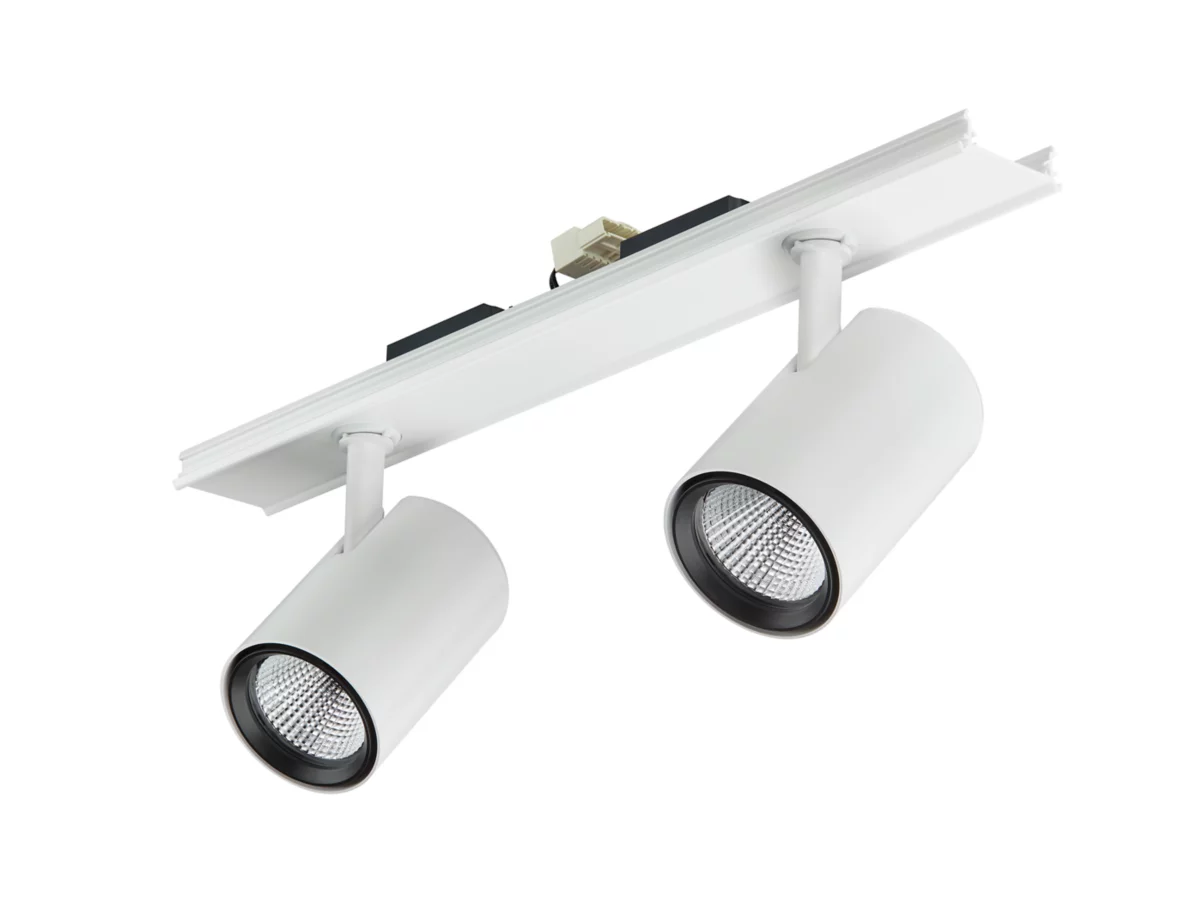

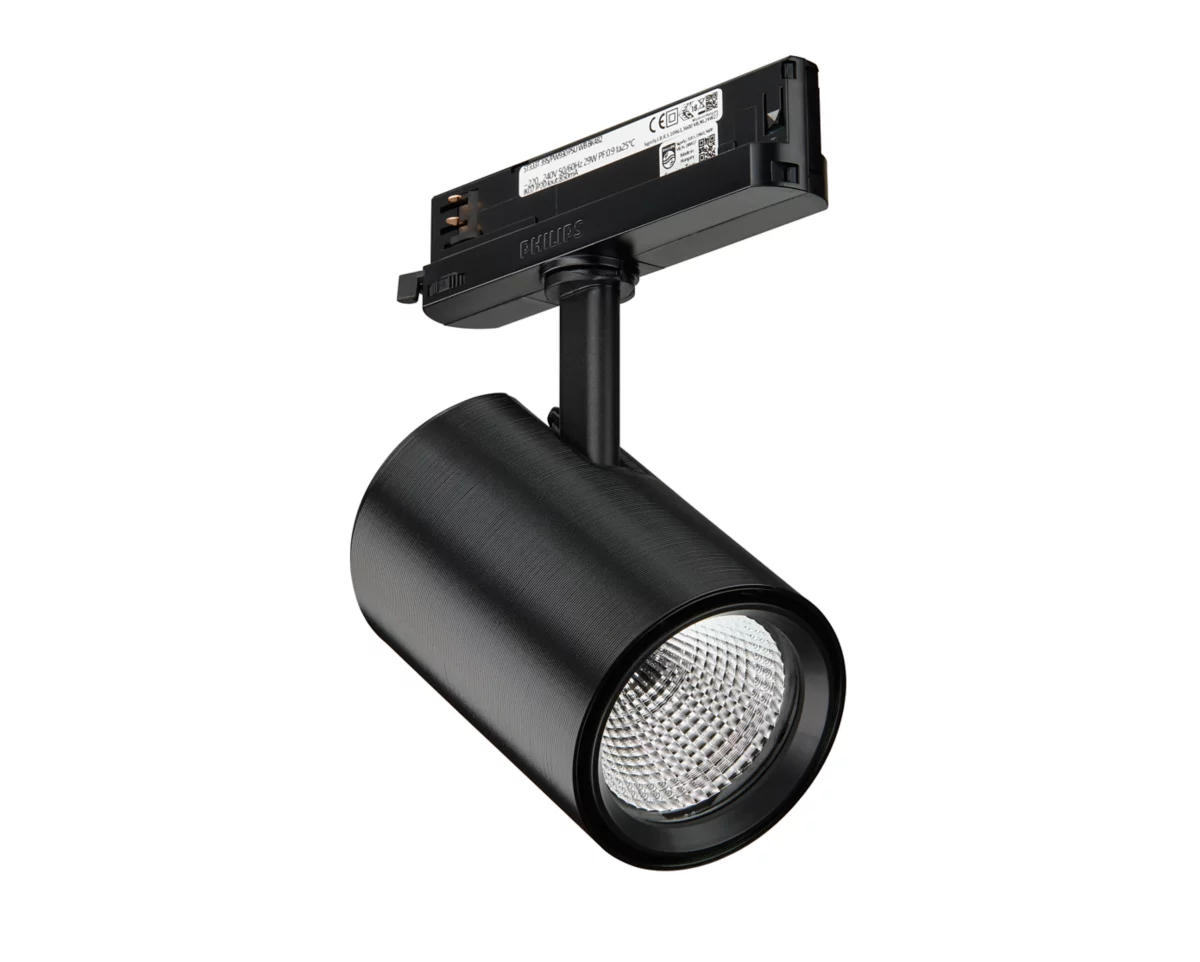

GreenSpace Evo Projector is a powerful and flexible projector for retail with a subtle and neutral design. The 3D printed housing is crafted from at least 65% recycled or bio-circular materials, while the heatsink is made from 85% recycled aluminium. Because of its circular design, the luminaire is upgradable, reusable, fully serviceable and recyclable. Combined with the high energy efficiency, this makes the GreenSpace Evo a sustainable projector choice. The PerfectAccent reflectors ensure a light effect with increased sparkle and improved shopper eye comfort. The OptiAccent (FPO) Lens technology for maximizing central light intensity. GreenSpace Evo also comes in state-of-the-art ultra-efficient variants and integrates seamlessly onto 3C- and DALI-tracks, CoreLine Trunking and Maxos fusion.Further customization of colors and textures is possible via Philips MyCreation
Features
Toolless access to the optics, LED and front glass
Serviceable and upgradeable with standard tools
Reduced carbon footprint due to high efficacy (ultra-efficient versions available)
Equipped with state-of-the-art PerfectAccent reflectors or OptiAccent (FPO) Lens technology
OptiAccent (FPO) Lens technology for maximizing central intensity, eliminating spill light/halo in compared to a traditional LED and reflector optical system, hence offering high contrast accentuation as opposed to a flat and vague light effect
Very broad aiming flexibility, including upward lighting
Connectivity options: Interact compatible DALI (DIA), Indoor positioning (DIA-VLC) and Wireless (WIA)
Optional front glass (recommended for dusty environments)
Safety and installation: Cleaning of the optic should only be done with pressurized air. Touching the LED or reflector is forbidden. For food preparation areas and areas with high levels of dust, the use of the optional front glass is strongly advised, as it can be cleaned with a (dry) microfiber cloth During maintenance, the product must be switched off and cooled down The product must be installed out of arm’s reach. Manipulating the product when hot is only possible with an insulated glove
Benefits
Blends into stores with a clean and neutral design
More sparkle and enhanced shopper eye comfort with PerfectAccent reflectors
Extend the useful life of the product with easy serviceability and upgradeability
The recycled materials and high energy efficiency help further reduce the carbon footprint of the product
GreenSpace Evo Projector, 44 W, 5800 lm, PremiumWhite, 3000 K, CRI>90, DALI, Interact Ready, High-reflective metal reflector Medium beam 20 to 40 degrees, Black
5,800 lm
44 W
3000
IP20
High-reflective metal reflector Medium beam 20 to 40 degrees
GreenSpace Evo Projector, 58 W, 7600 lm, PremiumWhite, 3000 K, CRI>90, DALI, Interact Ready, High-reflective metal reflector Medium beam 20 to 40 degrees, Black
7,600 lm
58 W
3000
IP20
High-reflective metal reflector Medium beam 20 to 40 degrees
