Family specifications
Ranges across every order code of the family. The exact values of a specific order code are in the table below: the «Specifications» button in its row.
Light technical
Luminous flux (lm)
2,700–8,400 lm
Efficacy (lm/W)
79–147 lm/W
CCT (K)
3000 / 4000
Color rendering
80-89 / 90-99
Light distribution
Medium beam / Wide beam
UGR value
22 / Not applicable
Electrical and controls
Wattage (W)
20–62 W
Dimming controls
DALI / - / Wireless
Connectivity
Interact Ready
Mechanical and housing
Housing material
Aluminum
Color of Housing
Black / White
IP rating
IP20
IK rating
IK02
Length (mm)
162–565 mm
Width (mm)
83 mm
Height (mm)
167–176 mm

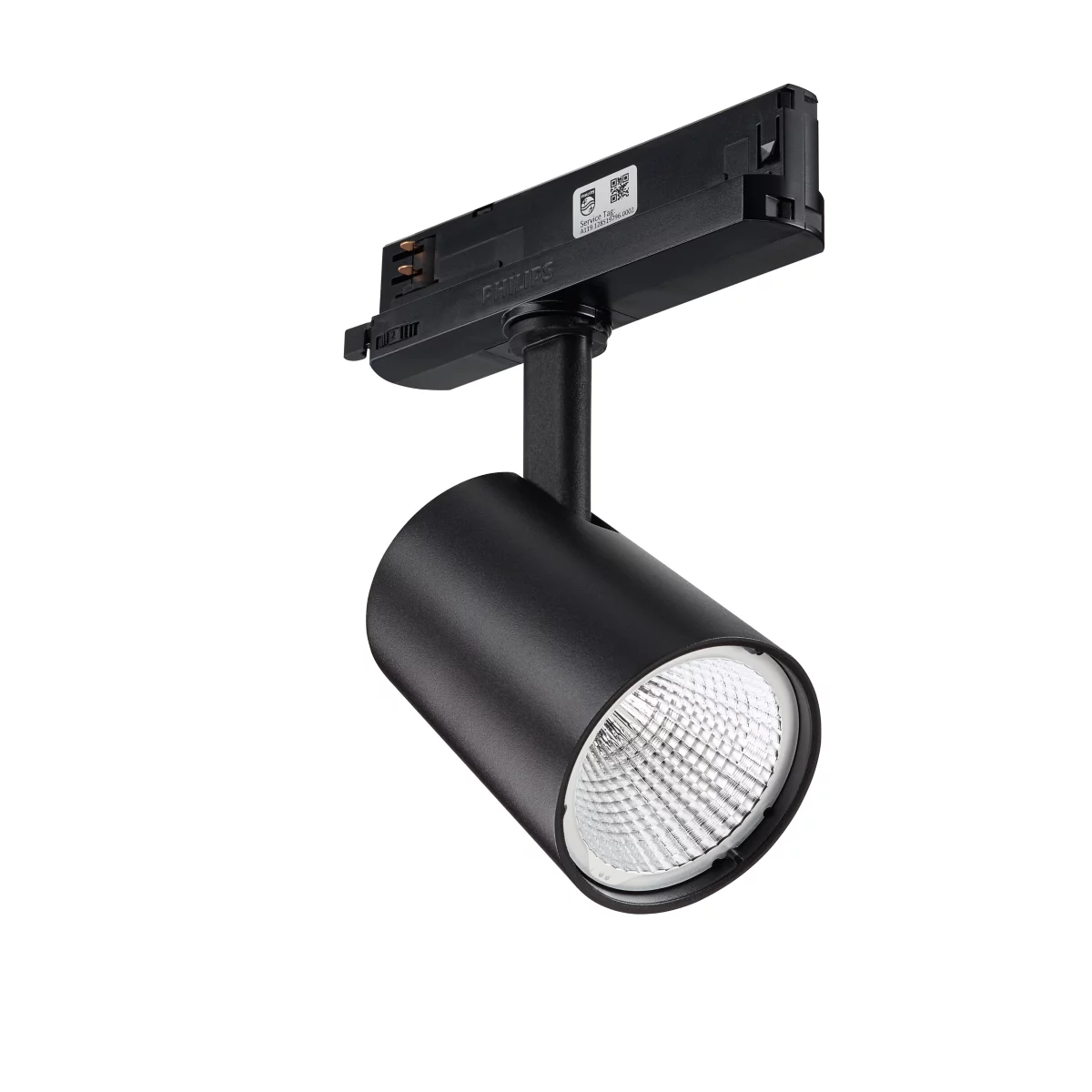

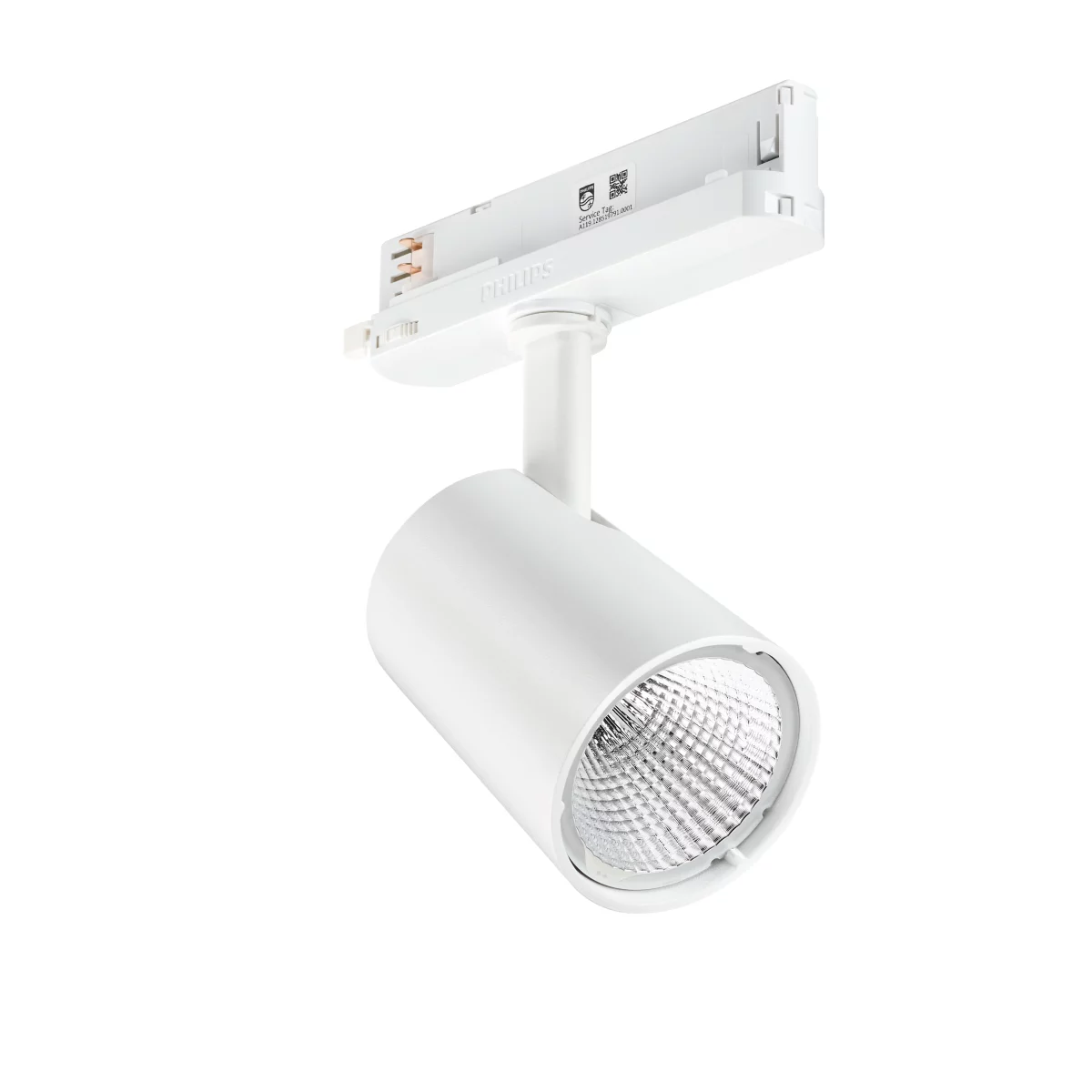

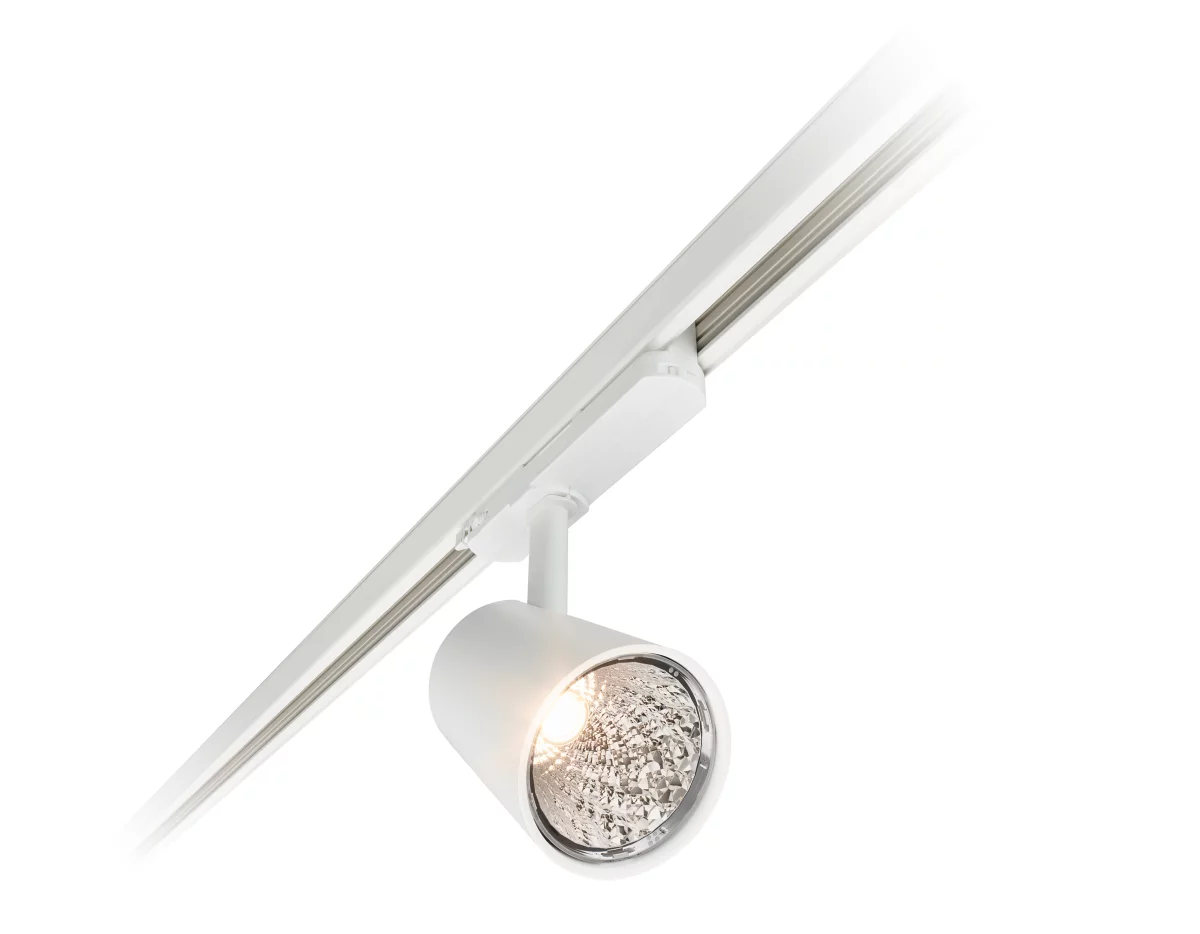

Retailers are always looking for ways to reduce their environmental footprint and energy cost. With this StoreFit projector, conventional CDM luminaires can be replaced effortlessly with LED, leading to significantly less power consumption. The subtle and compact design reduces the visibility of the StoreFit projector in the store, and keeps shoppers’ attention on the merchandise available on the shelves. As an affordable LED projector, this spot will enable you to start saving on energy costs straight away.
Features
Up to 3900 lm

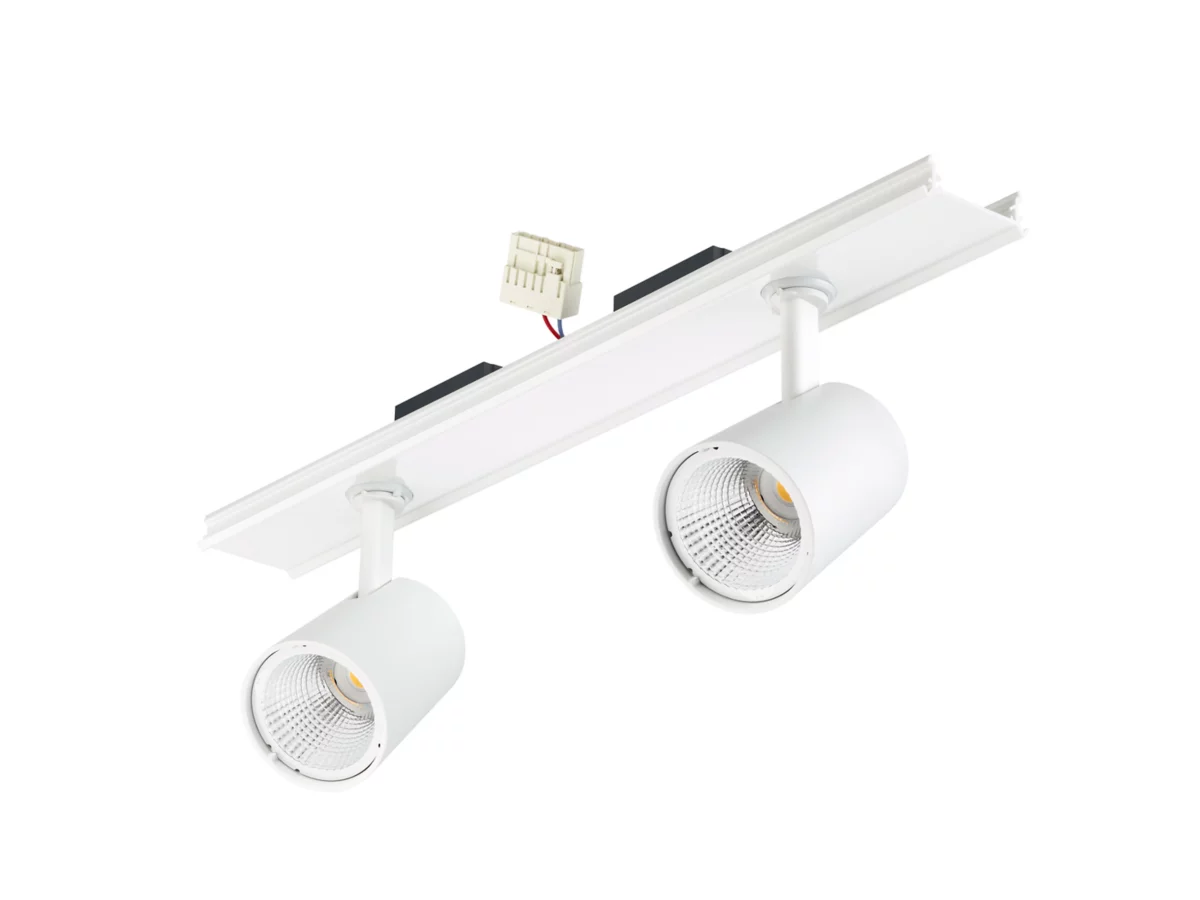

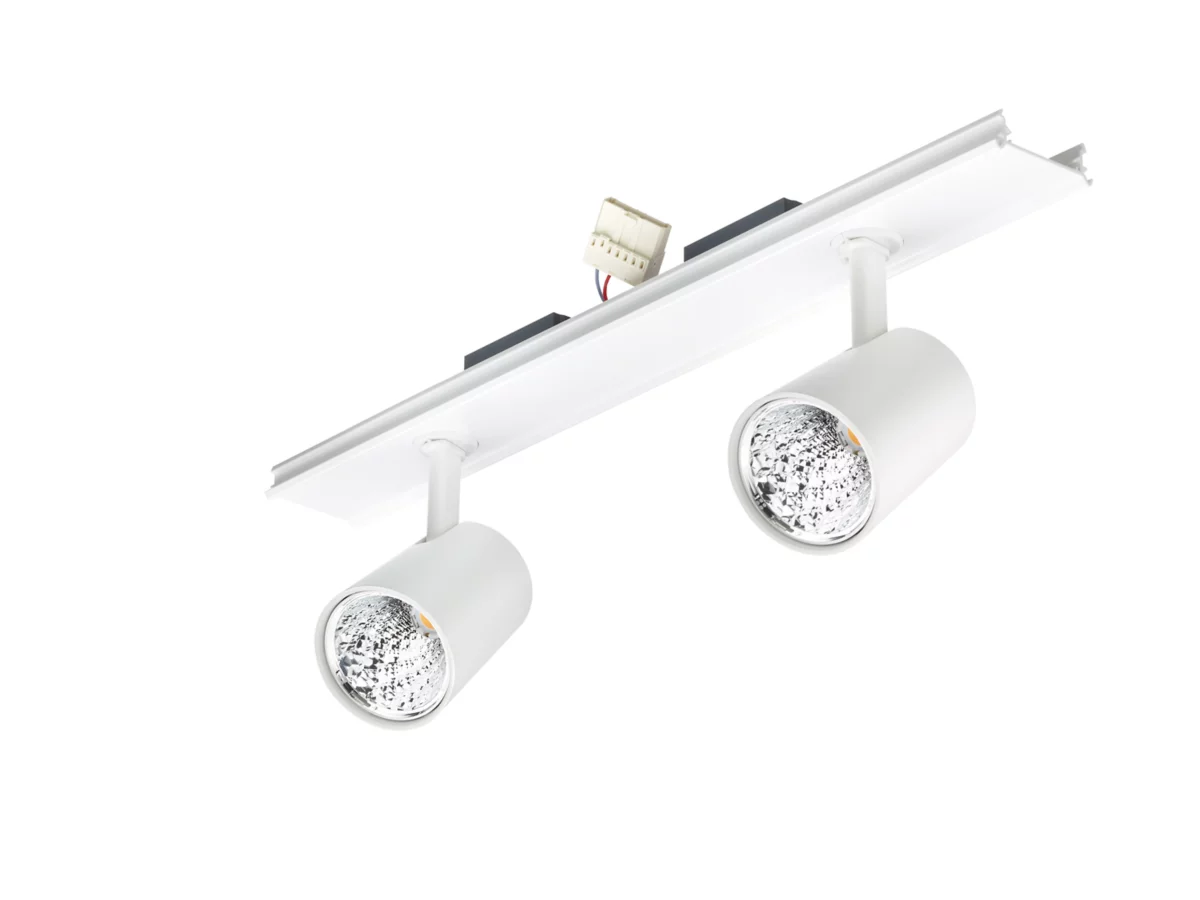

Choose from a white or black finish (ST201T and ST210Y)
Available in 3000K, 4000K and PremiumWhite 3000K
Medium beam or wide beam reflector options
Safety and installation: Cleaning the optic should only be done with pressurized air. Touching the LED or reflector is forbidden. During maintenance, the product must be switched off and cooled down The product must be installed out of arm’s reach. Manipulating the product when hot is only possible with an insulated glove
Benefits
The small spot head results in a very discreet design
Perfect LED replacement for CDM conventional luminaires
