Data and documents come from the official Signify (Philips) catalogue.
Office lightingIndustrial lightingSurface mounted
CoreLine surface mounted gen 4
SM136V
Introducing Philips CoreLine surface-mounted gen4, a family of high-quality and innovative light fixtures designed to deliver energy-efficient and long-lasting illumination for your home or office
List the order codes — we prepare a quotation and check availability. · 12 order codes
Family specifications
Ranges across every order code of the family. The exact values of a specific order code are in the table below: the «Specifications» button in its row.
Light technical
Luminous flux (lm)
3.4–4,300 lm
Efficacy (lm/W)
145–160 lm/W
CCT (K)
3000 / 4000
Light distribution
Wide beam office compliant / Very wide beam
UGR value
19 / 25
Electrical and controls
Wattage (W)
27.5–43.5 W
Dimming controls
DALI / Wireless
Connectivity
Interact Ready
Mechanical and housing
Housing material
Steel
IP rating
IP20/44
IK rating
IK03
Length (mm)
1,200–1,570 mm
Width (mm)
200 mm
Height (mm)
53 mm
Introducing Philips CoreLine surface-mounted gen4, a family of high-quality and innovative light fixtures designed to deliver energy-efficient and long-lasting illumination for your home or office. With higher lumen packages up to 6800 lm, improved efficiency of up to 160 lm/W, and a longer lifetime of L90@50K hrs/ L80@100K hrs, our CoreLine family provides bright and long-lasting illumination. Our surface-mounted light fixtures feature DC plugs in all versions, packaging from a single box to 4-in-1, and plastics-free packaging, making them eco-friendly and cost-effective. Our CoreLine surface-mounted gen4 features the same green quick connectors as the CoreLine panel, and is compatible with Wieland GSTi3 and GST/5 connectors. Upgrade your lighting today with Philips CoreLine surface-mounted gen4, a high-quality and innovative solution that delivers on the Philips promise of energy-efficient and long-lasting illumination.
Features
Higher lumen packages: up to 6800 lm (replacing 2 x 58W conventional light sources) for bright and effective illumination
Improved efficiency: up to 160 lm/W for energy-saving and eco-friendly lighting
Improved lifetime: L90@50K hrs/ L80@100K hrs for long-lasting and durable lighting
Plastics-free packaging for an eco-friendly solution
EPDs available for all listed products

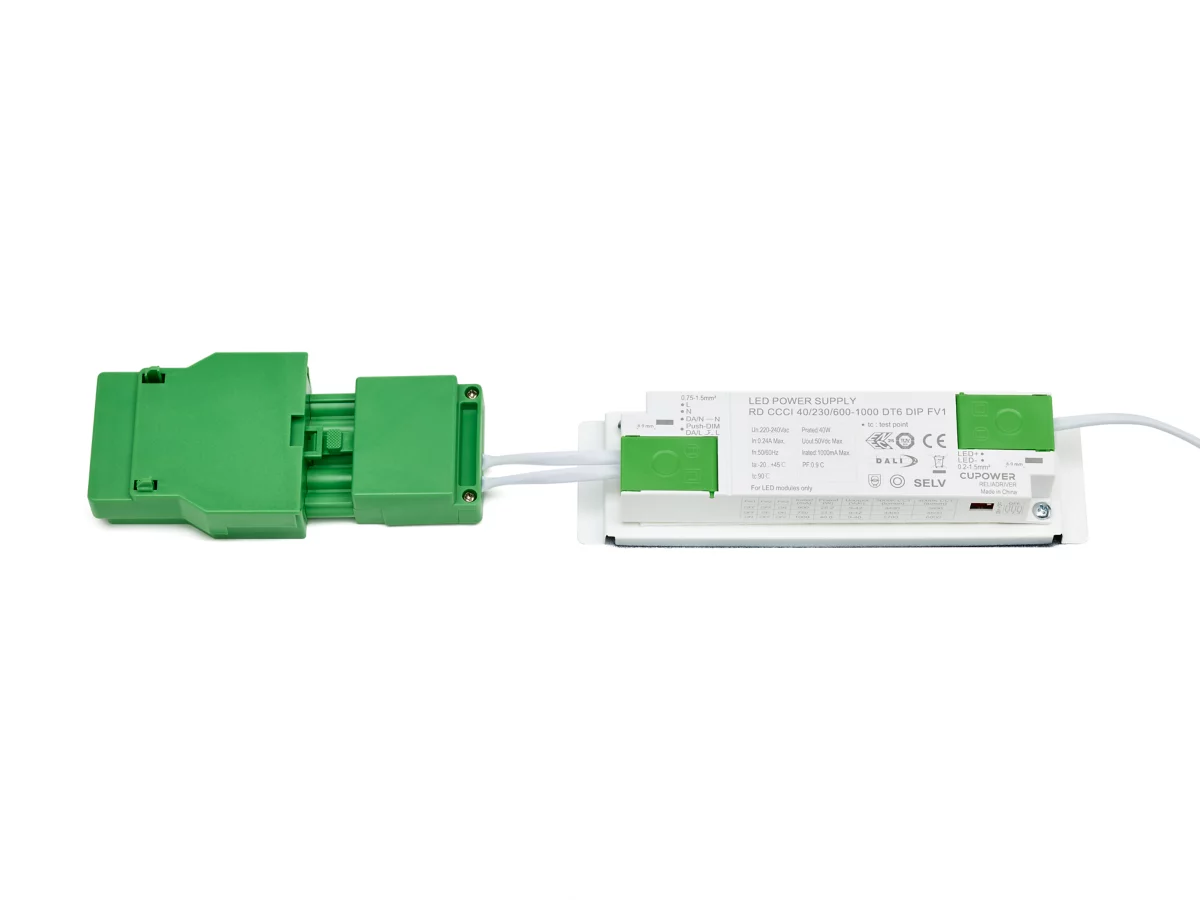

Improved all-in driver: more user-friendly, with no dipswitches for ease of use
Benefits
Energy-efficient: Our state-of-the-art LED technology ensures that CoreLine surface-mounted gen4 is both eco-friendly and cost-effective, saving you money on your energy bills while helping to reduce your carbon footprint.
Bright and effective: With higher lumen packages up to 6800 lm, CoreLine surface-mounted gen4 provides bright and effective illumination for your home or office.
Easy installation: Quick connectors make installation a breeze, ensuring a hassle-free and user-friendly experience.
Modern design: With its sleek and modern design, CoreLine surface-mounted gen4 blends seamlessly with any interior décor, enhancing the atmosphere of any space.
Long-lasting: Improved efficiency and lifetime ensure long-lasting and eco-friendly lighting that will last for years to come.
