Data and documents come from the official Signify (Philips) catalogue.

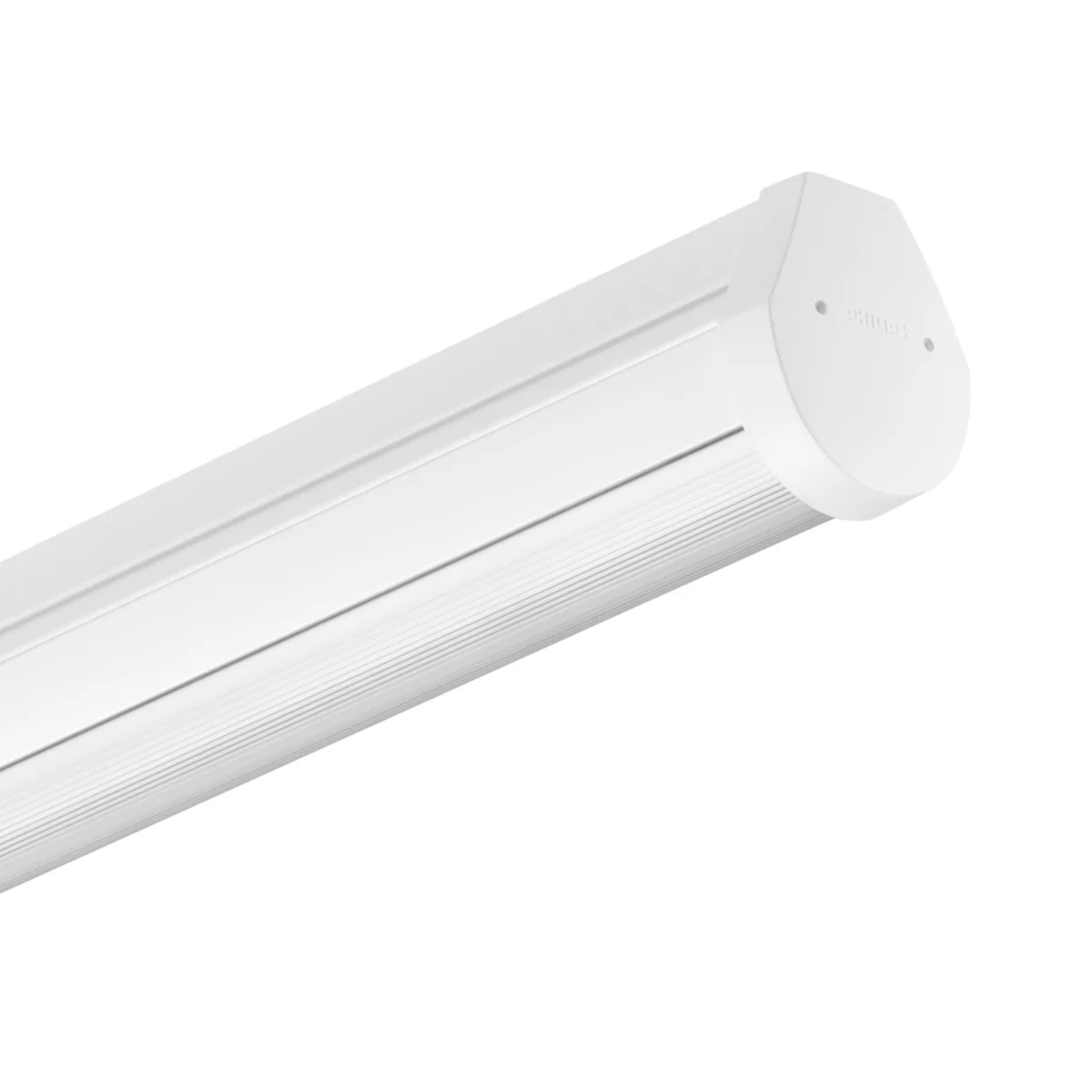

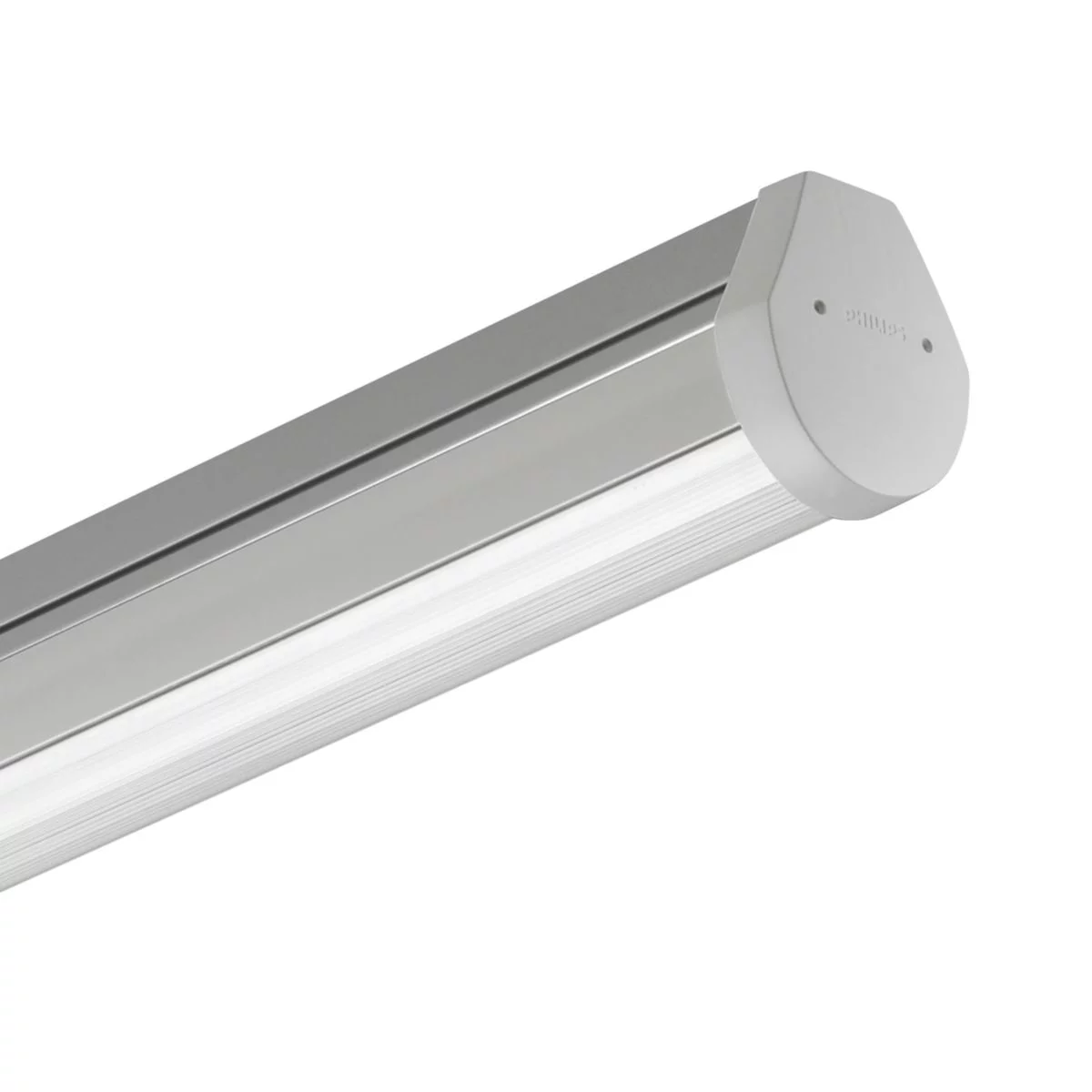

4MX900 / 4MX933
Customers want to save energy and reduce cost compared to what they are used to with conventional lighting
List the order codes — we prepare a quotation and check availability. · 49 order codes
Customers want to save energy and reduce cost compared to what they are used to with conventional lighting. At the same time, excellent lighting conditions are needed: in industrial environments, to guarantee safety and productivity; and in retail environments, to make the merchandise stand out and attract shoppers. Maxos LED Performer is an extremely flexible solution that delivers low energy consumption and excellent beam shaping at an attractive investment level.
Every version of the family from the official catalogue. Click PDF to download the datasheet of a specific order code.
| Order code | Name | Luminous flux | Wattage | CCT | IP | Optic | |
|---|---|---|---|---|---|---|---|
| 910500458125 | 4MX900 581 LED75S/840 PSD-CLO MB WH Maxos LED Performer, 50.2 W, 7500 lm, 4000 K, DALI, Medium beam, Clear, White, IP40 | 7,500 lm | 50.2 W | 4000 | IP40 | Medium beam, - | |
| 910500458678 | 4MX900 491 LED50S/840 PSD-CLO WB WH Maxos LED Performer, 32.2 W, 5000 lm, 4000 K, DALI, Wide beam, Clear, White, IP40 | 5,000 lm | 32.2 W | 4000 | IP40 | Wide beam, - | |
| 910500460303 | 4MX900 491 LED75S/840 PSD-CLO WB WH Maxos LED Performer, 40.16 W, 7500 lm, 4000 K, DALI, Wide beam, Clear, White, IP40 | 7,500 lm | 40.16 W | 4000 | IP40 | Wide beam, - | |
| 910500460305 | 4MX900 491 LED75S/840 PSD MB WH C-2R 4MX900 | Maxos LED Performer, 75S | LED Module, system flux 7500 lm, 840 neutral white, Power supply unit with DALI interface, Medium beam, Connector with 2 additional wires for light regulation, White | 7,500 lm | 50.2 W | 4000 | IP40 | Medium beam, - | |
| 910500460307 | 4MX900 491 LED75S/840 PSD WB WH C-2R 4MX900 | Maxos LED Performer, 75S | LED Module, system flux 7500 lm, 840 neutral white, Power supply unit with DALI interface, Wide beam, Connector with 2 additional wires for light regulation, White | 7,500 lm | 50.2 W | 4000 | IP40 | Wide beam, - | |
| 910500460311 | 4MX900 581 LED40S/840 PSD WB WH 4MX900 | Maxos LED Performer, 40S | LED module, system flux 4000 lm, 840 neutral white, Power supply unit with DALI interface, Wide beam, White | 4,000 lm | 25.2 W | 4000 | IP40 | Wide beam, - | |
| 910500460377 | 4MX933 581 LED50S/840 PSU WB WH ELB3 4MX933 | MAXOS LED PERFORMER EM, 50S | LED module, system flux 5000 lm, 840 neutral white, Power supply unit (On/Off), Wide beam, White | 5,000 lm | 32.2 W | 4000 | IP40 | Wide beam, - | |
| 910629131626 | 4MX900 LED40S/840 PSD WB SI L1200 Maxos LED Performer, Trunking light panel, 25.9 W, L1200 mm, 4000 lm, 4000 K, DALI, Wide beam, Clear, Silver, IP40 | 4,000 lm | 25.9 W | 4000 | IP40 | Wide beam | |
| 910629132426 | 4MX900 LED40S/840 PSD WB WH L1200 Maxos LED Performer, Trunking light panel, 25.9 W, L1200 mm, 4000 lm, 4000 K, DALI, Wide beam, Clear, White, IP40 | 4,000 lm | 25.9 W | 4000 | IP40 | Wide beam | |
| 910629136426 | 4MX900 LED60S/840 PSD WB SI L1800 Maxos LED Performer, Trunking light panel, 37.3 W, L1800 mm, 6000 lm, 4000 K, DALI, Wide beam, Clear, Silver, IP40 | 6,000 lm | 37.3 W | 4000 | IP40 | Wide beam | |
| 910629138026 | 4MX900 LED90S/840 PSD WB SI L1800 Maxos LED Performer, Trunking light panel, 60.1 W, L1800 mm, 9000 lm, 4000 K, DALI, Wide beam, Clear, Silver, IP40 | 9,000 lm | 60.1 W | 4000 | IP40 | Wide beam | |
| 910629138126 | 4MX900 LED90S/840 PSD MB SI L1800 Maxos LED Performer, Trunking light panel, 60.1 W, L1800 mm, 9000 lm, 4000 K, DALI, Medium beam, Clear, Silver, IP40 | 9,000 lm | 60.1 W | 4000 | IP40 | Medium beam | |
| 910629138826 | 4MX900 LED90S/840 PSD WB WH L1800 Maxos LED Performer, Trunking light panel, 60.1 W, L1800 mm, 9000 lm, 4000 K, DALI, Wide beam, Clear, White, IP40 | 9,000 lm | 60.1 W | 4000 | IP40 | Wide beam | |
| 910629138926 | 4MX900 LED90S/840 PSD MB WH L1800 Maxos LED Performer, Trunking light panel, 60.1 W, L1800 mm, 9000 lm, 4000 K, DALI, Medium beam, Clear, White, IP40 | 9,000 lm | 60.1 W | 4000 | IP40 | Medium beam | |
| 910629141226 | 4MX900 491 LED40S/840 PSU WB SI Maxos LED Performer, Trunking light panel, 25.2 W, L1479 mm, 4000 lm, 4000 K, Wide beam, Clear, Silver, IP40 | 4,000 lm | 25.2 W | 4000 | IP40 | Wide beam | |
| 910629141326 | 4MX900 491 LED40S/840 PSU MB SI Maxos LED Performer, Trunking light panel, 25.2 W, L1479 mm, 4000 lm, 4000 K, Medium beam, Clear, Silver, IP40 | 4,000 lm | 25.2 W | 4000 | IP40 | Medium beam | |
| 910629142026 | 4MX900 491 LED40S/840 PSU WB WH Maxos LED Performer, Trunking light panel, 25.2 W, L1479 mm, 4000 lm, 4000 K, Wide beam, Clear, White, IP40 | 4,000 lm | 25.2 W | 4000 | IP40 | Wide beam | |
| 910629142126 | 4MX900 491 LED40S/840 PSU MB WH Maxos LED Performer, Trunking light panel, 25.2 W, L1479 mm, 4000 lm, 4000 K, Medium beam, Clear, White, IP40 | 4,000 lm | 25.2 W | 4000 | IP40 | Medium beam | |
| 910629144426 | 4MX900 491 LED40S/840 PSD WB WH Maxos LED Performer, Trunking light panel, 25.2 W, L1479 mm, 4000 lm, 4000 K, DALI, Wide beam, Clear, White, IP40 | 4,000 lm | 25.2 W | 4000 | IP40 | Wide beam | |
| 910629144526 | 4MX900 491 LED40S/840 PSD MB WH Maxos LED Performer, Trunking light panel, 25.2 W, L1479 mm, 4000 lm, 4000 K, DALI, Medium beam, Clear, White, IP40 | 4,000 lm | 25.2 W | 4000 | IP40 | Medium beam | |
| 910629144626 | 4MX900 491 LED40S/840 PSD NB WH Maxos LED Performer, Trunking light panel, 25.2 W, L1479 mm, 4000 lm, 4000 K, DALI, Narrow beam, Clear, White, IP40 | 4,000 lm | 25.2 W | 4000 | IP40 | Narrow beam | |
| 910629144826 | 4MX900 491 LED50S/840 PSD WB WH Maxos LED Performer, Trunking light panel, 32.2 W, L1479 mm, 5000 lm, 4000 K, DALI, Wide beam, Clear, White, IP40 | 5,000 lm | 32.2 W | 4000 | IP40 | Wide beam | |
| 910629144926 | 4MX900 491 LED50S/840 PSD MB WH Maxos LED Performer, Trunking light panel, 32.2 W, L1479 mm, 5000 lm, 4000 K, DALI, Medium beam, Clear, White, IP40 | 5,000 lm | 32.2 W | 4000 | IP40 | Medium beam | |
| 910629145526 | 4MX900 LED60S/840 PSD A30 WH L1800 Maxos LED Performer, Trunking light panel, 37.3 W, L1800 mm, 6000 lm, 4000 K, DALI, Asymmetrical mirror axis angle 30°, Clear, White, IP40 | 6,000 lm | 37.3 W | 4000 | IP40 | Asymmetrical mirror axis angle 30° | |
| 910629145726 | 4MX900 581 LED50S/840 PSU A30 WH Maxos LED Performer, Trunking light panel, 32.2 W, L1530 mm, 5000 lm, 4000 K, Asymmetrical mirror axis angle 30°, Clear, White, IP40 | 5,000 lm | 32.2 W | 4000 | IP40 | Asymmetrical mirror axis angle 30° | |
| 910629145826 | 4MX900 491 LED40S/840 PSU A30 WH Maxos LED Performer, Trunking light panel, 25.2 W, L1479 mm, 4000 lm, 4000 K, Asymmetrical mirror axis angle 30°, Clear, White, IP40 | 4,000 lm | 25.2 W | 4000 | IP40 | Asymmetrical mirror axis angle 30° | |
| 910629145926 | 4MX900 491 LED50S/840 PSU A30 WH Maxos LED Performer, Trunking light panel, 32.2 W, L1479 mm, 5000 lm, 4000 K, Asymmetrical mirror axis angle 30°, Clear, White, IP40 | 5,000 lm | 32.2 W | 4000 | IP40 | Asymmetrical mirror axis angle 30° | |
| 910629146026 | 4MX900 581 LED50S/840 PSU WB WH Maxos LED Performer, Trunking light panel, 32.2 W, L1530 mm, 5000 lm, 4000 K, Wide beam, Clear, White, IP40 | 5,000 lm | 32.2 W | 4000 | IP40 | Wide beam | |
| 910629146426 | 4MX900 491 LED50S/840 PSU WB WH Maxos LED Performer, Trunking light panel, 32.2 W, L1479 mm, 5000 lm, 4000 K, Wide beam, Clear, White, IP40 | 5,000 lm | 32.2 W | 4000 | IP40 | Wide beam | |
| 910629146526 | 4MX900 491 LED50S/840 PSU MB WH Maxos LED Performer, Trunking light panel, 32.2 W, L1479 mm, 5000 lm, 4000 K, Medium beam, Clear, White, IP40 | 5,000 lm | 32.2 W | 4000 | IP40 | Medium beam | |
| 910629147026 | 4MX900 LED90S/840 PSD A30 WH L1800 Maxos LED Performer, Trunking light panel, 60.1 W, L1800 mm, 9000 lm, 4000 K, DALI, Asymmetrical mirror axis angle 30°, Clear, White, IP40 | 9,000 lm | 60.1 W | 4000 | IP40 | Asymmetrical mirror axis angle 30° | |
| 910629147226 | 4MX900 LED90S/840 PSD A30 SI L1800 Maxos LED Performer, Trunking light panel, 60.1 W, L1800 mm, 9000 lm, 4000 K, DALI, Asymmetrical mirror axis angle 30°, Clear, Silver, IP40 | 9,000 lm | 60.1 W | 4000 | IP40 | Asymmetrical mirror axis angle 30° | |
| 910629148526 | 4MX900 491 LED75S/840 PSU A30 WH Maxos LED Performer, Trunking light panel, 50.2 W, L1479 mm, 7500 lm, 4000 K, Asymmetrical mirror axis angle 30°, Clear, White, IP40 | 7,500 lm | 50.2 W | 4000 | IP40 | Asymmetrical mirror axis angle 30° | |
| 910629170326 | 4MX900 491 LED75S/840 PSU WB WH Maxos LED Performer, Trunking light panel, 50.2 W, L1479 mm, 7500 lm, 4000 K, Wide beam, Clear, White, IP40 | 7,500 lm | 50.2 W | 4000 | IP40 | Wide beam | |
| 910629170426 | 4MX900 491 LED75S/840 PSU MB WH Maxos LED Performer, Trunking light panel, 50.2 W, L1479 mm, 7500 lm, 4000 K, Medium beam, Clear, White, IP40 | 7,500 lm | 50.2 W | 4000 | IP40 | Medium beam | |
| 910629170826 | 4MX900 581 LED75S/840 PSU WB WH Maxos LED Performer, Trunking light panel, 50.2 W, L1530 mm, 7500 lm, 4000 K, Wide beam, Clear, White, IP40 | 7,500 lm | 50.2 W | 4000 | IP40 | Wide beam | |
| 910629170926 | 4MX900 581 LED75S/840 PSU MB WH Maxos LED Performer, Trunking light panel, 50.2 W, L1530 mm, 7500 lm, 4000 K, Medium beam, Clear, White, IP40 | 7,500 lm | 50.2 W | 4000 | IP40 | Medium beam | |
| 910629171026 | 4MX900 581 LED75S/840 PSU NB WH Maxos LED Performer, Trunking light panel, 50.2 W, L1530 mm, 7500 lm, 4000 K, Narrow beam, Clear, White, IP40 | 7,500 lm | 50.2 W | 4000 | IP40 | Narrow beam | |
| 910629171326 | 4MX900 491 LED75S/840 PSD WB WH Maxos LED Performer, Trunking light panel, 50.2 W, L1479 mm, 7500 lm, 4000 K, DALI, Wide beam, Clear, White, IP40 | 7,500 lm | 50.2 W | 4000 | IP40 | Wide beam | |
| 910629171426 | 4MX900 491 LED75S/840 PSD MB WH Maxos LED Performer, Trunking light panel, 50.2 W, L1479 mm, 7500 lm, 4000 K, DALI, Medium beam, Clear, White, IP40 | 7,500 lm | 50.2 W | 4000 | IP40 | Medium beam |
910500458125
4MX900 581 LED75S/840 PSD-CLO MB WH
910500458678
4MX900 491 LED50S/840 PSD-CLO WB WH
910500460303
4MX900 491 LED75S/840 PSD-CLO WB WH
910500460305
4MX900 491 LED75S/840 PSD MB WH C-2R
910500460307
4MX900 491 LED75S/840 PSD WB WH C-2R
910500460311
4MX900 581 LED40S/840 PSD WB WH
910500460377
4MX933 581 LED50S/840 PSU WB WH ELB3
910629131626
4MX900 LED40S/840 PSD WB SI L1200
910629132426
4MX900 LED40S/840 PSD WB WH L1200
910629136426
4MX900 LED60S/840 PSD WB SI L1800
910629138026
4MX900 LED90S/840 PSD WB SI L1800
910629138126
4MX900 LED90S/840 PSD MB SI L1800
910629138826
4MX900 LED90S/840 PSD WB WH L1800
910629138926
4MX900 LED90S/840 PSD MB WH L1800
910629141226
4MX900 491 LED40S/840 PSU WB SI
910629141326
4MX900 491 LED40S/840 PSU MB SI
910629142026
4MX900 491 LED40S/840 PSU WB WH
910629142126
4MX900 491 LED40S/840 PSU MB WH
910629144426
4MX900 491 LED40S/840 PSD WB WH
910629144526
4MX900 491 LED40S/840 PSD MB WH
910629144626
4MX900 491 LED40S/840 PSD NB WH
910629144826
4MX900 491 LED50S/840 PSD WB WH
910629144926
4MX900 491 LED50S/840 PSD MB WH
910629145526
4MX900 LED60S/840 PSD A30 WH L1800
910629145726
4MX900 581 LED50S/840 PSU A30 WH
910629145826
4MX900 491 LED40S/840 PSU A30 WH
910629145926
4MX900 491 LED50S/840 PSU A30 WH
910629146026
4MX900 581 LED50S/840 PSU WB WH
910629146426
4MX900 491 LED50S/840 PSU WB WH
910629146526
4MX900 491 LED50S/840 PSU MB WH
910629147026
4MX900 LED90S/840 PSD A30 WH L1800
910629147226
4MX900 LED90S/840 PSD A30 SI L1800
910629148526
4MX900 491 LED75S/840 PSU A30 WH
910629170326
4MX900 491 LED75S/840 PSU WB WH
910629170426
4MX900 491 LED75S/840 PSU MB WH
910629170826
4MX900 581 LED75S/840 PSU WB WH
910629170926
4MX900 581 LED75S/840 PSU MB WH
910629171026
4MX900 581 LED75S/840 PSU NB WH
910629171326
4MX900 491 LED75S/840 PSD WB WH
910629171426
4MX900 491 LED75S/840 PSD MB WH
