Family specifications
Ranges across every order code of the family. The exact values of a specific order code are in the table below: the «Specifications» button in its row.
Light technical
Luminous flux (lm)
3,900–7,000 lm
Efficacy (lm/W)
150–161 lm/W
CCT (K)
3000 / 4000
Light distribution
Very wide beam angle 120° / Oval reflector
UGR value
30
Electrical and controls
Wattage (W)
26–43.5 W
Dimming controls
DALI / Wireless
Connectivity
Interact Ready
Emergency Lighting
DC operated central emergency lighting
Mechanical and housing
Housing material
Polycarbonate / Plastic
IP rating
IP67 / IP68
IK rating
IK06 / IK10
Length (mm)
1,310–1,610 mm
Height (mm)
79 mm

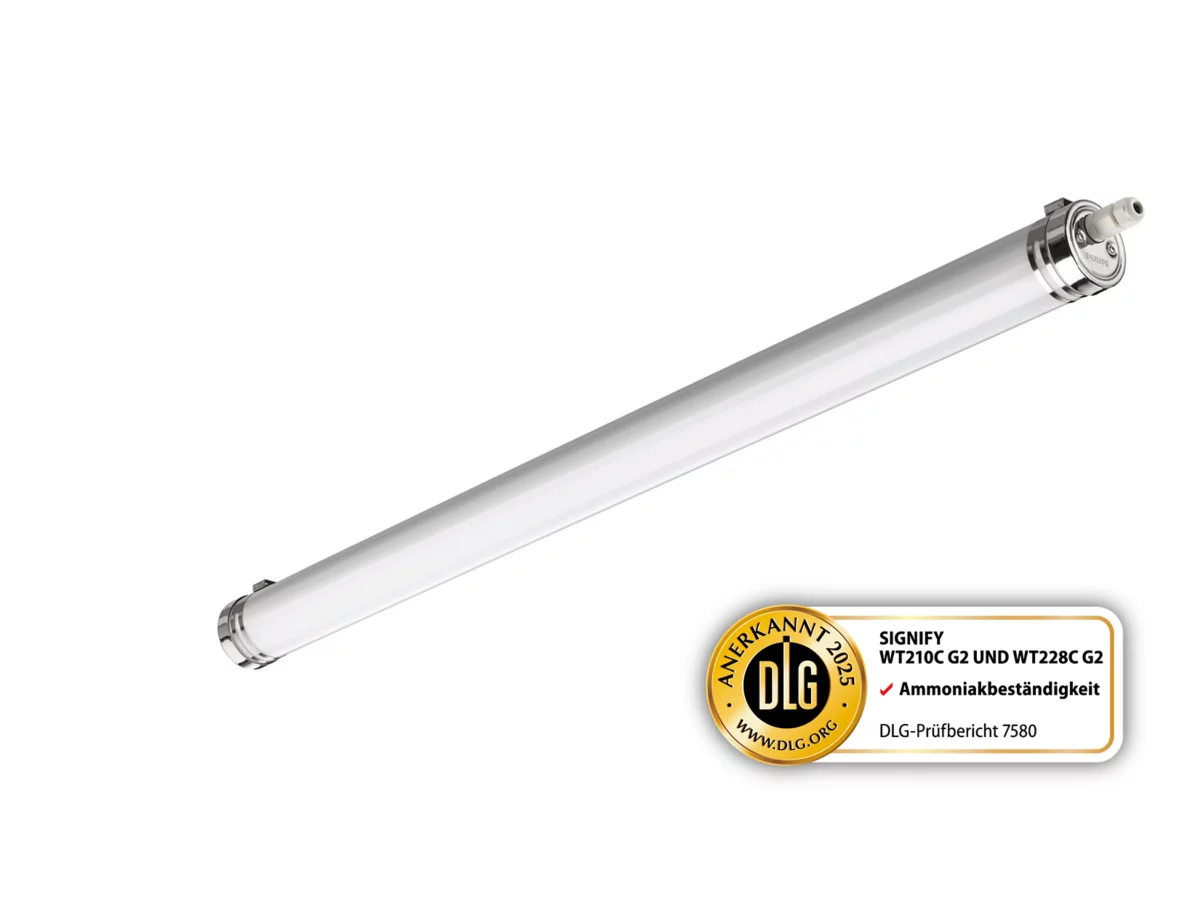

CoreLine Tubular Waterproof delivers on the CoreLine promise of innovative, easy-to-use and high-quality luminaires. A reliable, efficient luminaire with a very long lifetime, CoreLine Tubular Waterproof comes in two versions to meet various applications needs. The ammonia-resistant luminaire (PMMA tube) is suitable for animal lighting, livestock and food applications, while the PC tube version offers a modern and industrial design that is suitable for a wide range of general lighting applications. Both versions come with significant dust, water and impact protection, making them relevant for specific applications. CoreLine Tubular Waterproof WT210C luminaires promise energy savings and less maintenance. They can be installed in next to no time and without tools, thanks to pre-installed through-wiring and an external connector, which means the luminaire does not require opening. These waterproof lighting solutions are flexible to mount on ceilings or suspended in both indoor and (protected) outdoor environments. A choice of on/off, DALI dimming and an Interact ready option with integrated wireless communications is also available in this family, which can be used with Interact gateways, sensors and software.
Features
2 versions: Ammonia-resistant - PMMA tube and Polycarbonate tube (PC)
High water, dust and impact protection: IP67/IP69K/IK06 (PMMA), IP68/IP69K/IK10 (PC)
Long lifetime and high efficiency: 100,000 hours with flux at 80% min. compared to initial level; up to 160lm/W
Choice of color temperatures: 3000K and 4000K

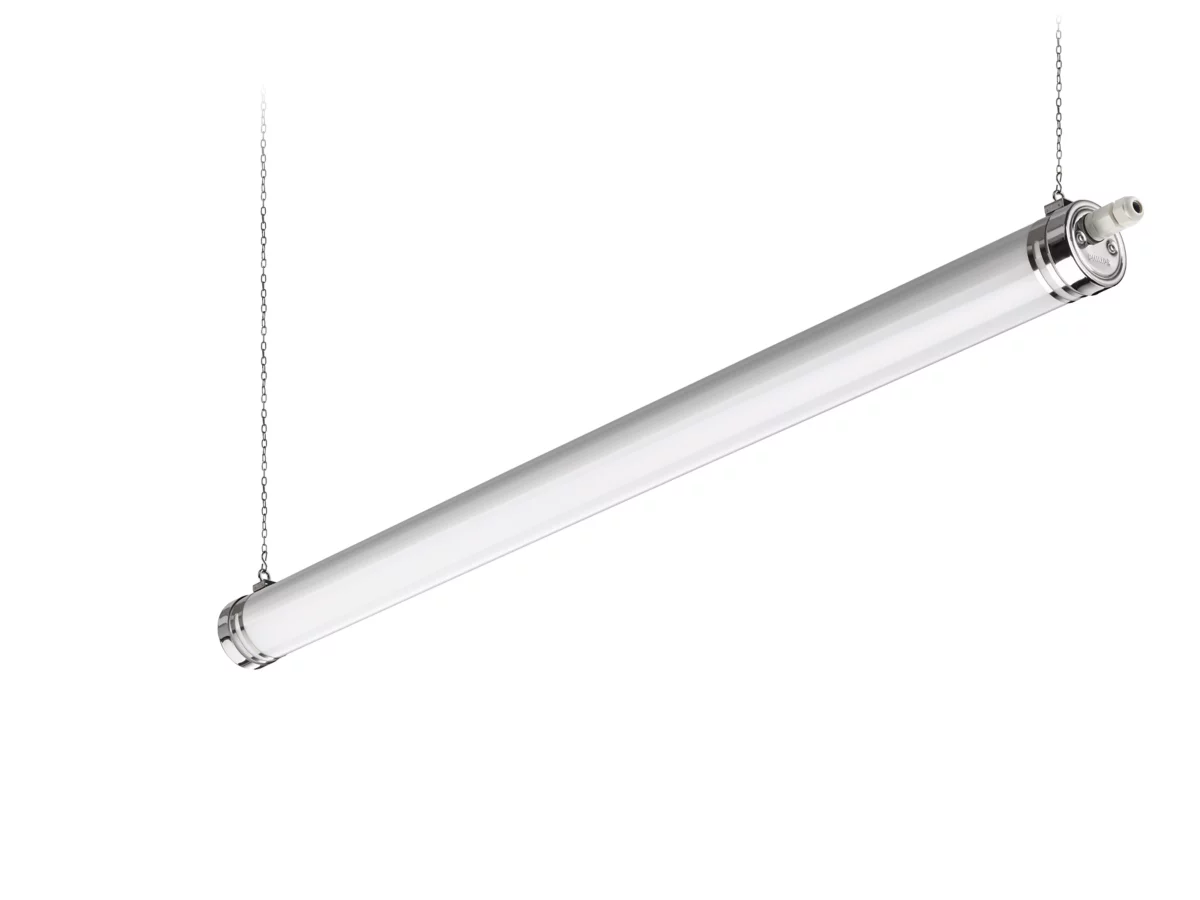

Stainless steel (316) mounting brackets and optional suspended mounting sets for indoor and outdoor installation

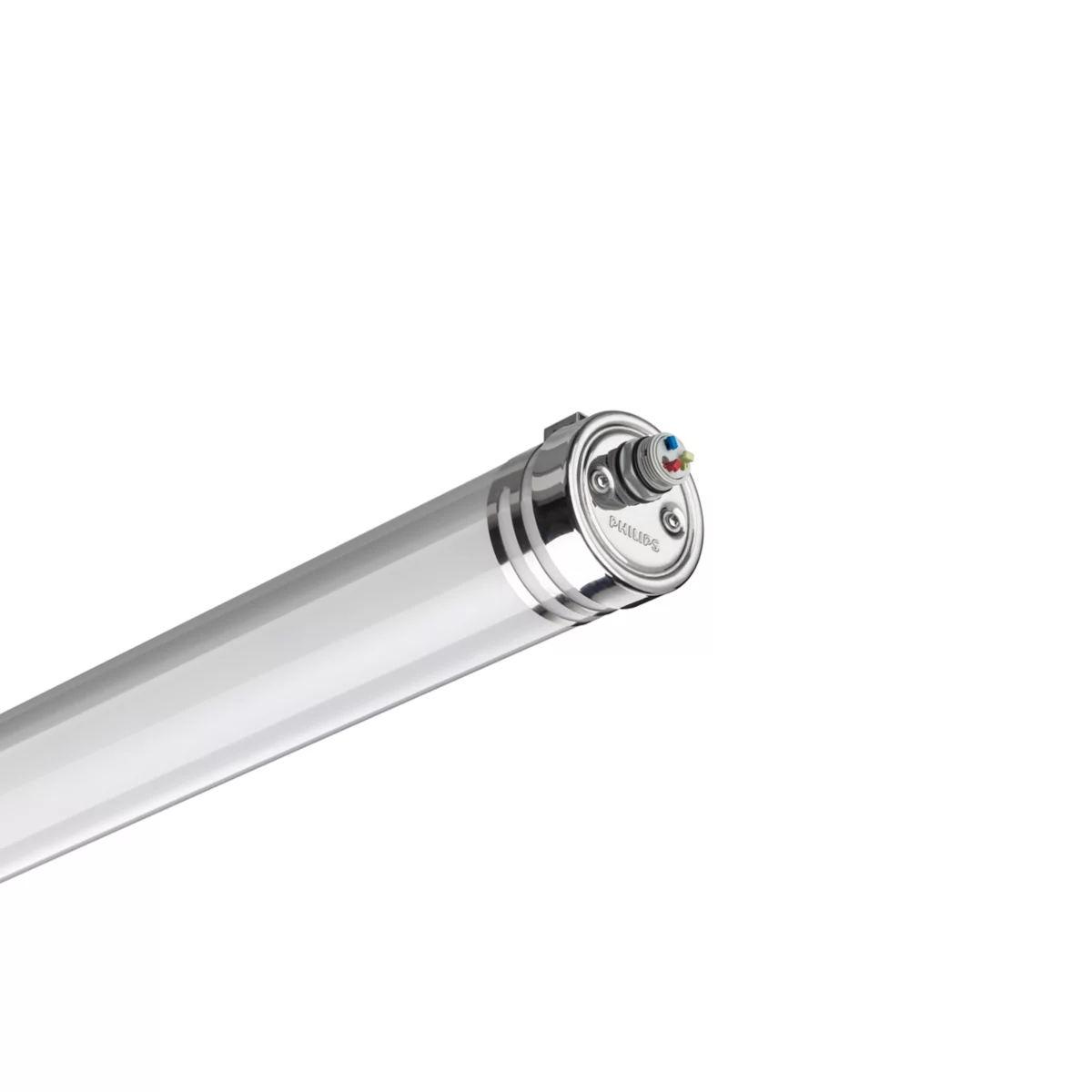

Through wiring installed with external push in connector for fast installation
Choice of drivers: ON/OFF (PSU), DALI (PSD) and wireless with Interact ready (WIA)
Benefits
Saves on energy and maintenance costs
Quick, toolless installation on ceilings or suspended mounted (indoors and outdoors)
