Family specifications
Ranges across every order code of the family. The exact values of a specific order code are in the table below: the «Specifications» button in its row.
Light technical
Luminous flux (lm)
1.2–7,000 lm
Efficacy (lm/W)
154–161 lm/W
CCT (K)
4000
Light distribution
Symmetrical
UGR value
26 / 27 / 28
Electrical and controls
Wattage (W)
13–50 W
Dimming controls
DALI / Wireless
Connectivity
Interact Ready
Emergency Lighting
DC operated central emergency lighting / -
Mechanical and housing
Housing material
Polycarbonate
IP rating
IP65
IK rating
IK08
Length (mm)
630–1,530 mm
Width (mm)
74 mm
Height (mm)
69 mm
CoreLine waterproof quick-fit delivers on the CoreLine promise of innovative, easy-to-use and high-quality luminaires. Its modern architecture, with quick access to connector enables fast and easy installation. An efficient design ensures flexibility with “All-in” settings, allowing on-site adjustments to better suit various application conditions. Single-material paper packaging simplifies waste management on-site. DALI and Interact Ready options enable driver replacement for extended product lifecycle, further strengthen with access to Signify ServiceTag app. CoreLine waterproof quick-fit can directly replace traditional waterproof luminaires with fluorescent lamps ranging from 18W up to 58W, delivering significant energy savings. The product family also includes a range of options, such as on/off, DALI dimming, and Interact Ready option with integrated wireless communications which can be used with Interact gateways, sensors and software, is also available in this family.
Features
Long lifetime of 100,000 hours at L80 with 5 years warranty
High efficiency: up to 160 lm/W,
All-in: multiple lumen packages in one luminaire (optional)

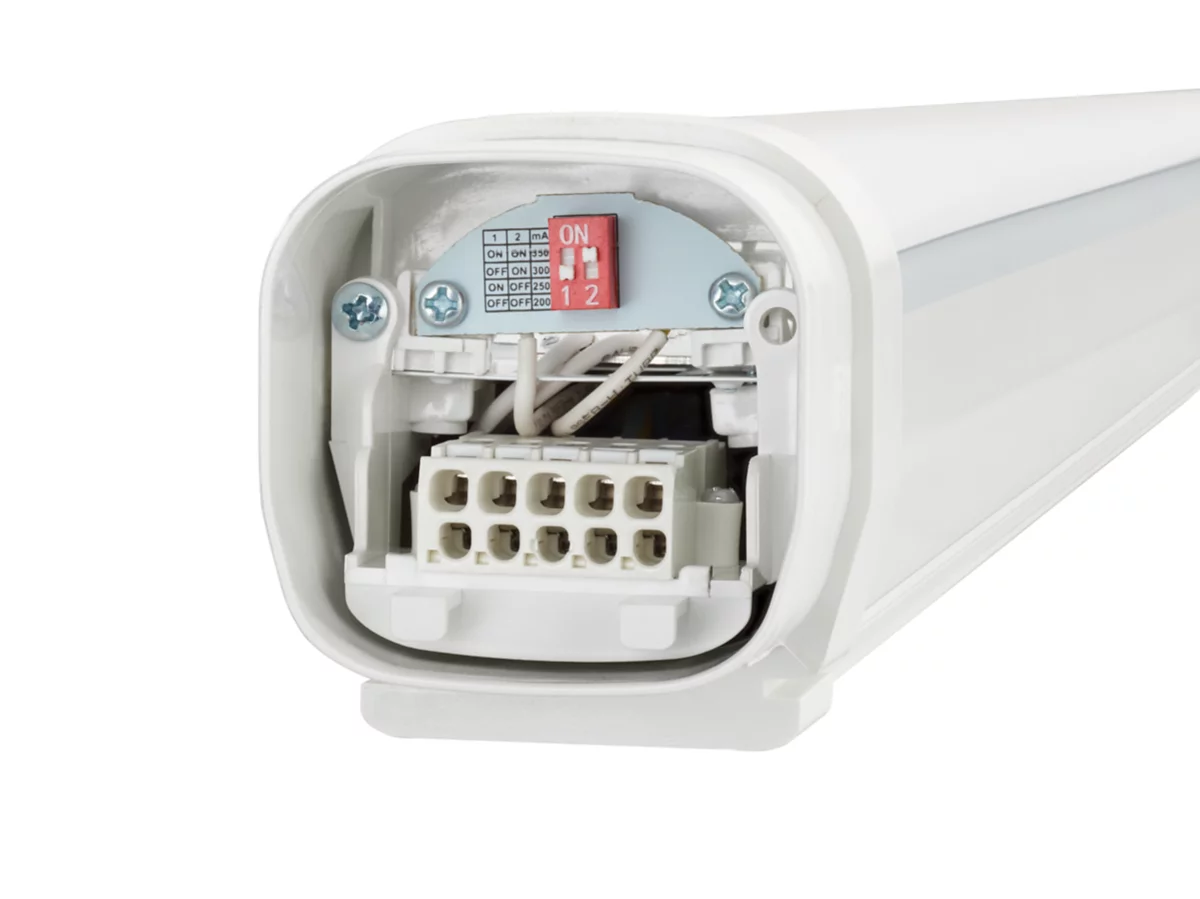

Toolless electrical connections, easy access to all_in settings, supporting ease and flexibility of installation
Optional controls and versions: DALI dimming, integrated wireless connectivity (Interact Ready), through wiring 1- and 3-phase (TW1/3)
Safety and installation: UV radiation will damage the material over time resulting in loss of waterproof sealing and IP66 rating. Do not install the luminaire in locations where it will be exposed to direct sunlight.
Benefits
Hassle-free and fast installation
Fulfils needs of general applications projects, with robust design (IK08) and high water and dust-proof rating (IP65)
Sustainability in scope: Driver replacement (DALI, Interact Ready), with access to Signify ServiceTag app. Environmental Product Declaration available.
Interact Ready connectivity for smart lighting and easy commissioning.
