Family specifications
Ranges across every order code of the family. The exact values of a specific order code are in the table below: the «Specifications» button in its row.
Light technical
Luminous flux (lm)
2,992–12,325 lm
Efficacy (lm/W)
147–181 lm/W
CCT (K)
3000 / 4000
Color rendering
70-79
Light distribution
Distribution wide / Distribution medium / Distribution medium version 32 Peformance (for 5050) / Distribution medium version 11 Peformance (for 5050)
Optical cover
Flat glass
Electrical and controls
Wattage (W)
19–81 W
Dimming controls
DynaDimmer / -
Connectivity
Interact Ready
Embedded control
Constant light output and DynaDimmer fixed presets version 2
Mechanical and housing
Mounting type
Side-entry for diameter 42 to 60 mm / Side-entry for diameter 48 to 60 mm / Universal for diameter 48 to 60 mm adjustable
Housing material
Aluminum die cast / Aluminium die-cast ADC1 - alloy grade (EN AC-47100)
Color of Housing
Grey
IP rating
IP66
IK rating
IK08 / IK09
Length (mm)
428–592 mm
Width (mm)
230 mm
Height (mm)
88–112 mm

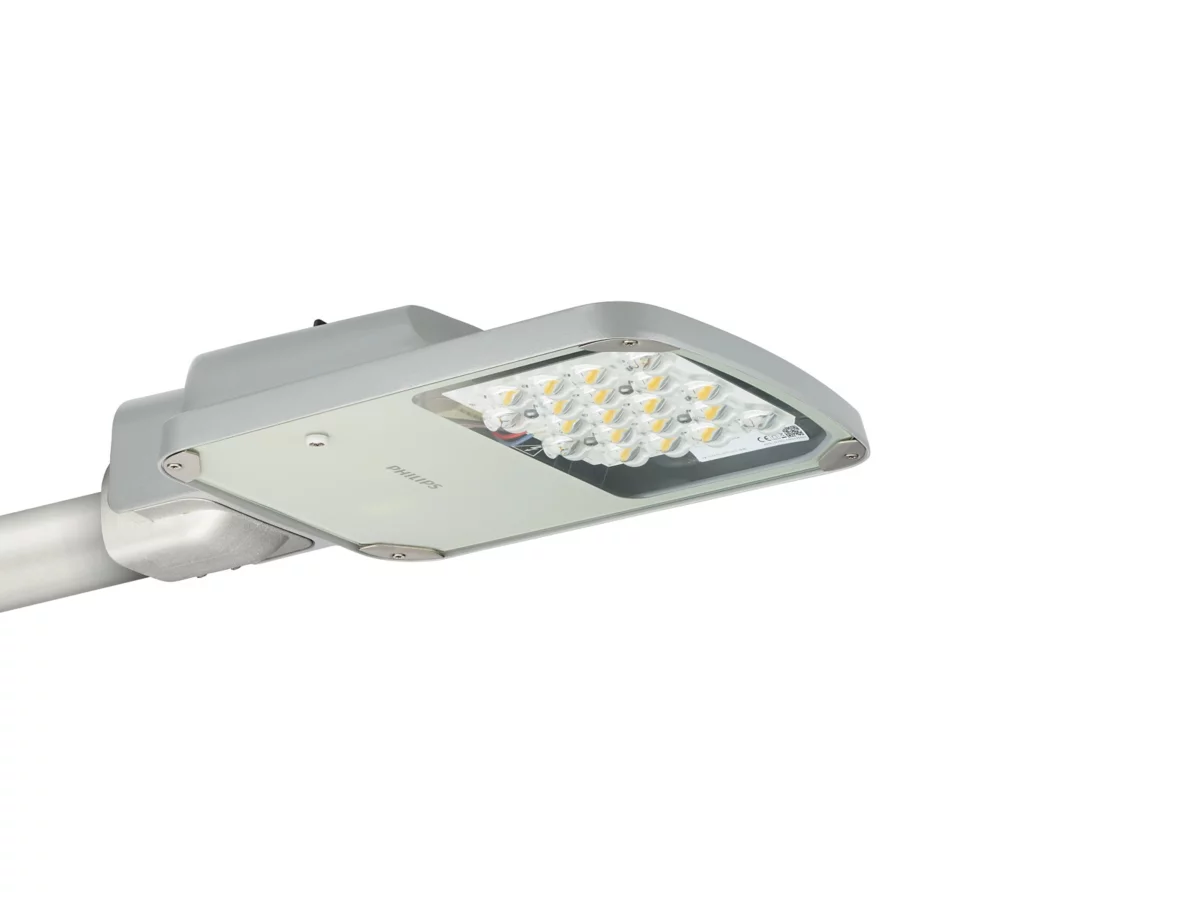

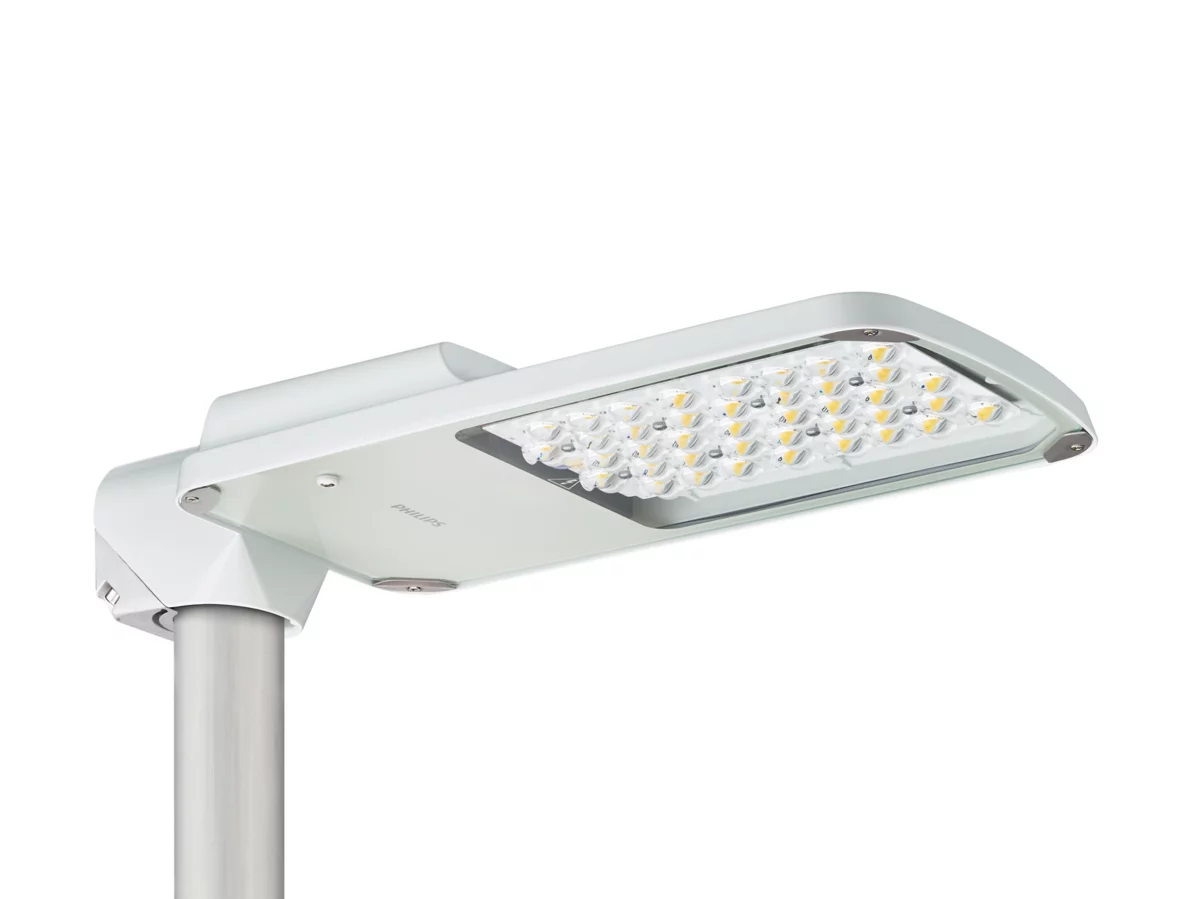

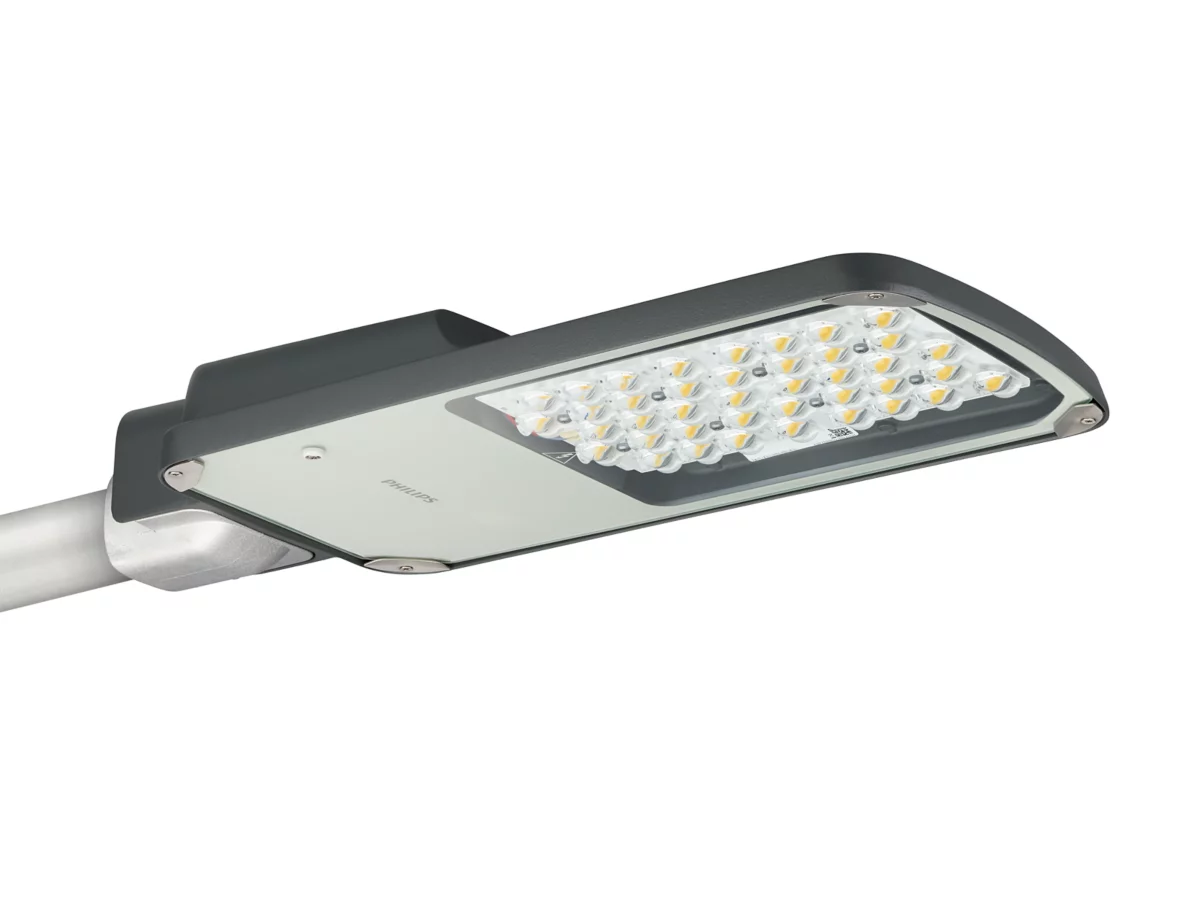

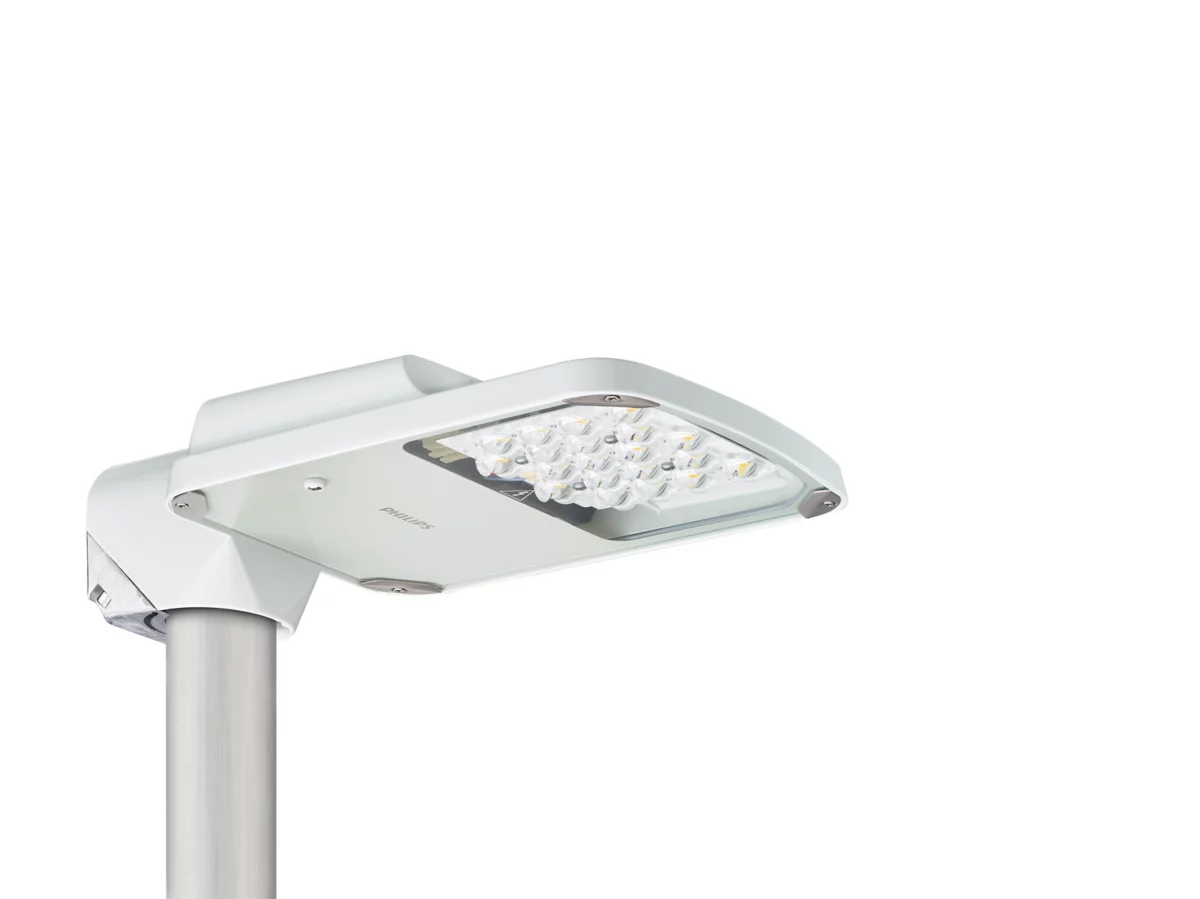

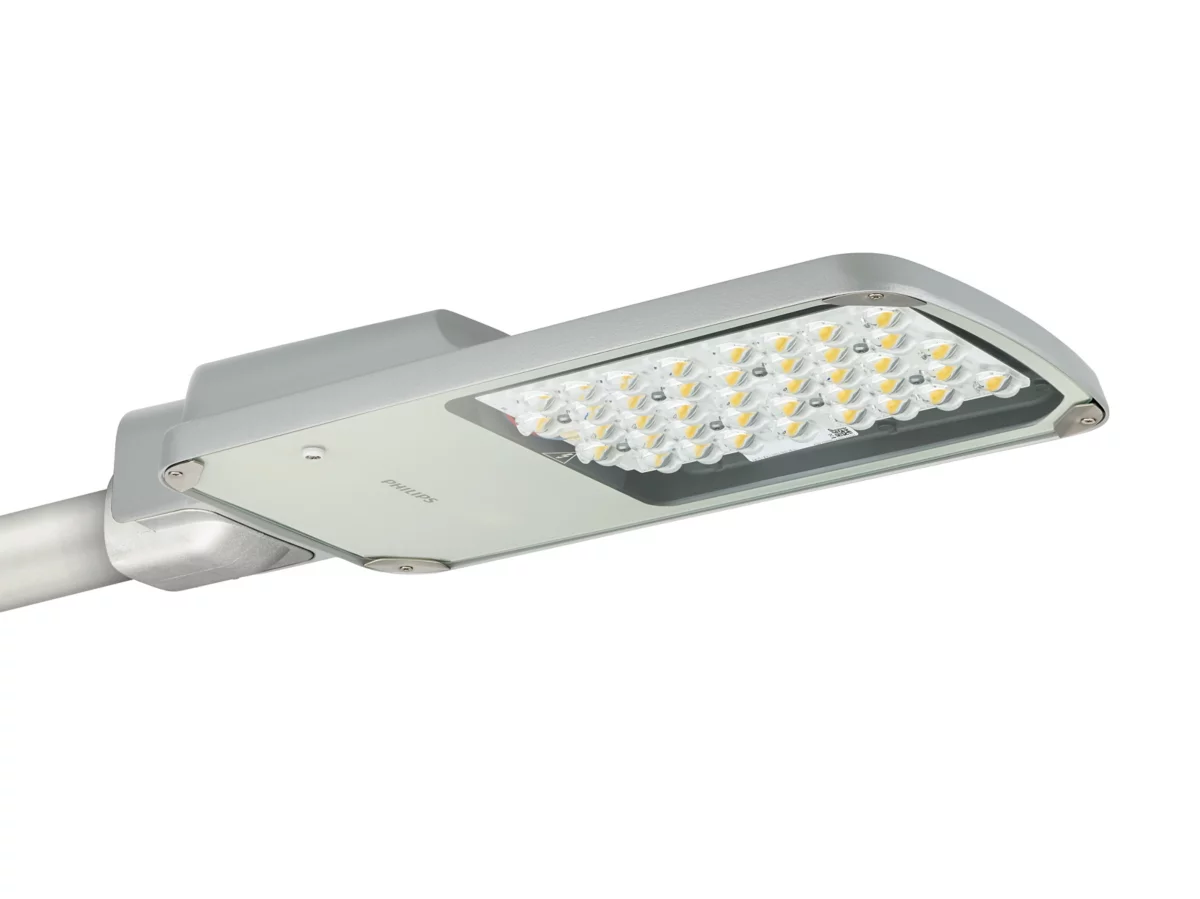

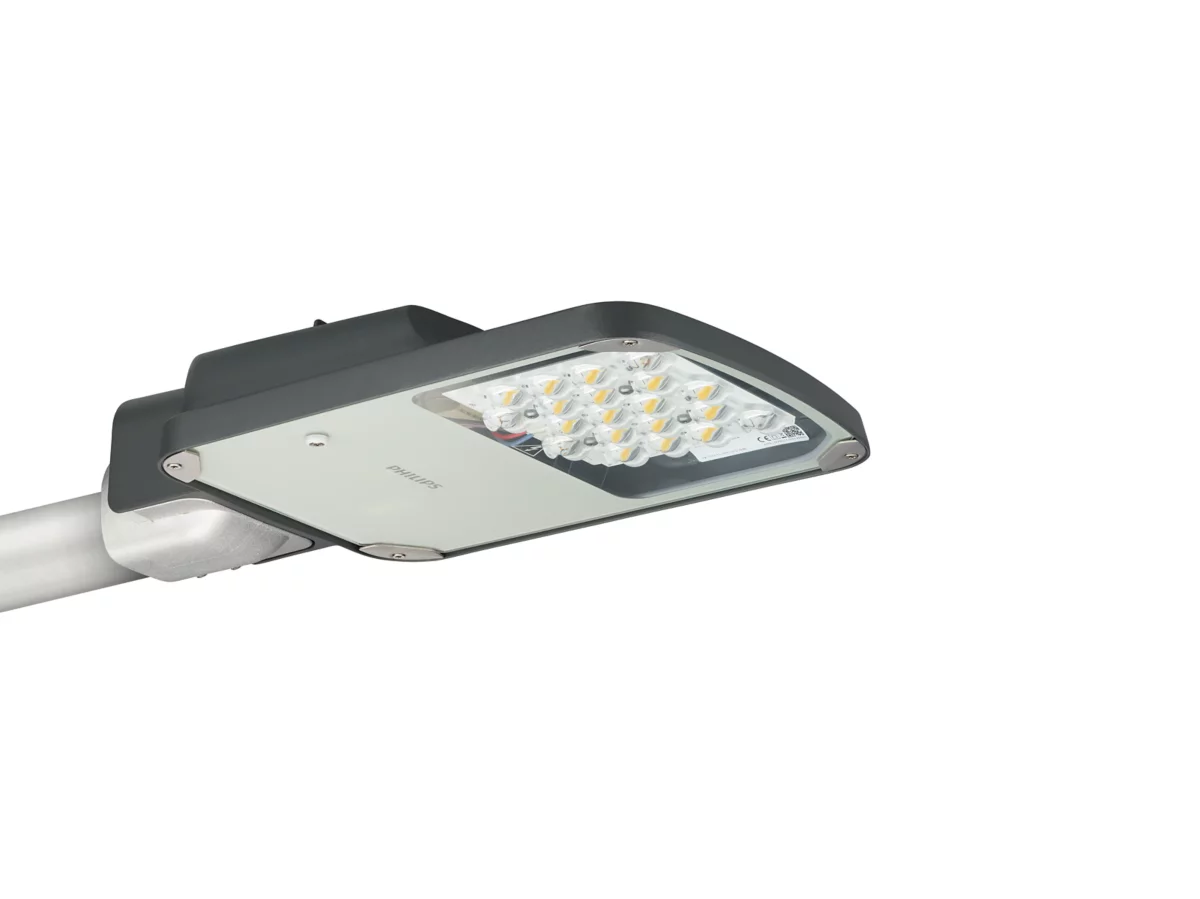

The AluRoad gen2 family is available in 2 versions, standard AluRoad gen2 and AluRoad gen2 Pro. These are available in 2 sizes, Mini and Medium. Standard AluRoad gen2 as BGP020 Mini and BGP025 Medium, AluRoad gen2 Pro as BGP021 Mini and BGP026 Medium. Standard AluRoad gen2 features a fixed spigot for both post top 0 degrees tilt and side entry with limited negative tilt. AluRoad gen2 Pro is equipped with an adjustable spigot allowing tilt settings in both post top and side entry, positive and negative. AluRoad gen2 enables you to easily upgrade your city’s lighting and enjoy the benefits of LED technology, designated to further minimize Total Cost of Investment and Ownership. The family is ideally suited for both new build areas and streets as well as renovation of existing installations. This affordable family not only offers a clean and timeless design to blend in with the environment, but also brings high quality lighting and future proof solutions with significant energy and maintenance savings over a long operational life.
Features
Easy to install in both post top and side entry application.
Interesting total cost of ownership through future proof energy savings.
Limited initial investment.
Considerable reduction in energy usage and carbon footprint
further energy savings achievable when using CLO or standalone dimming such as Dynadim. Certainly, when using the Ultra Efficient versions available within the family.
Signify Service tag (unique QR identification) for maintenance, installation, and spare part information.
Benefits
Easy to install in both post top and side entry application.
Interesting total cost of ownership.
Limited initial investment.
Considerable reduction in energy usage and carbon footprint
further energy savings achievable when using CLO or stand alone dimming such as Dynadim.
Signify Service tag (unique QR identification) for maintenance, installation, and spare part information.
Every version of the family from the official catalogue. Click PDF to download the datasheet of a specific order code.
Tick up to 4 order codes to see their specifications side by side.
Compare⇄
Order code
Name
Luminous flux
Wattage
CCT
IP
Optic
Specifications
PDF
910925869085
BGP020 LED51/740 II DM CLO-DDF2
AluRoad gen2, Road & street light, 28.5 W, 4312 lm, 4000 K, CRI70, Programmable (via DALI or NFC) stand-alone dimming, Distribution medium, Safety class II, IP66
AluRoad gen2, Road & street light, 39 W, 5742 lm, 4000 K, CRI70, Programmable (via DALI or NFC) stand-alone dimming, Distribution medium, Safety class II, IP66
AluRoad gen2, Road & street light, 49.5 W, 7482 lm, 4000 K, CRI70, Programmable (via DALI or NFC) stand-alone dimming, Distribution medium, Safety class II, IP66
AluRoad gen2, Road & street light, 61 W, 9030 lm, 4000 K, CRI70, Programmable (via DALI or NFC) stand-alone dimming, Distribution medium, Safety class II, IP66
AluRoad gen2, Road & street light, 81 W, 11475 lm, 4000 K, CRI70, Programmable (via DALI or NFC) stand-alone dimming, Distribution medium, Safety class II, IP66
AluRoad gen2, Road & street light, 81 W, 11475 lm, 4000 K, CRI70, Programmable (via DALI or NFC) stand-alone dimming, Distribution wide, Safety class II, IP66
AluRoad gen2, Road & street light, 30 W, 4312 lm, 3000 K, CRI70, Programmable (via DALI or NFC) stand-alone dimming, Distribution medium, Safety class II, IP66
AluRoad gen2, Road & street light, 64 W, 9030 lm, 3000 K, CRI70, Programmable (via DALI or NFC) stand-alone dimming, Distribution medium, Safety class II, IP66
