This Philips pathway is a high endurance and low maintenance product which has high specs to fit common prof applications. It's a reliable product with peace of mind.
Data and documents come from the official Signify (Philips) catalogue.
BRP121
This Philips pathway is a high endurance and low maintenance product which has high specs to fit common prof applications
List the order codes — we prepare a quotation and check availability. · 29 order codes
This Philips pathway is a high endurance and low maintenance product which has high specs to fit common prof applications. It's a reliable product with peace of mind.
Every version of the family from the official catalogue. Click PDF to download the datasheet of a specific order code.
| Order code | Name | Luminous flux | Wattage | CCT | IP | Optic | |
|---|---|---|---|---|---|---|---|

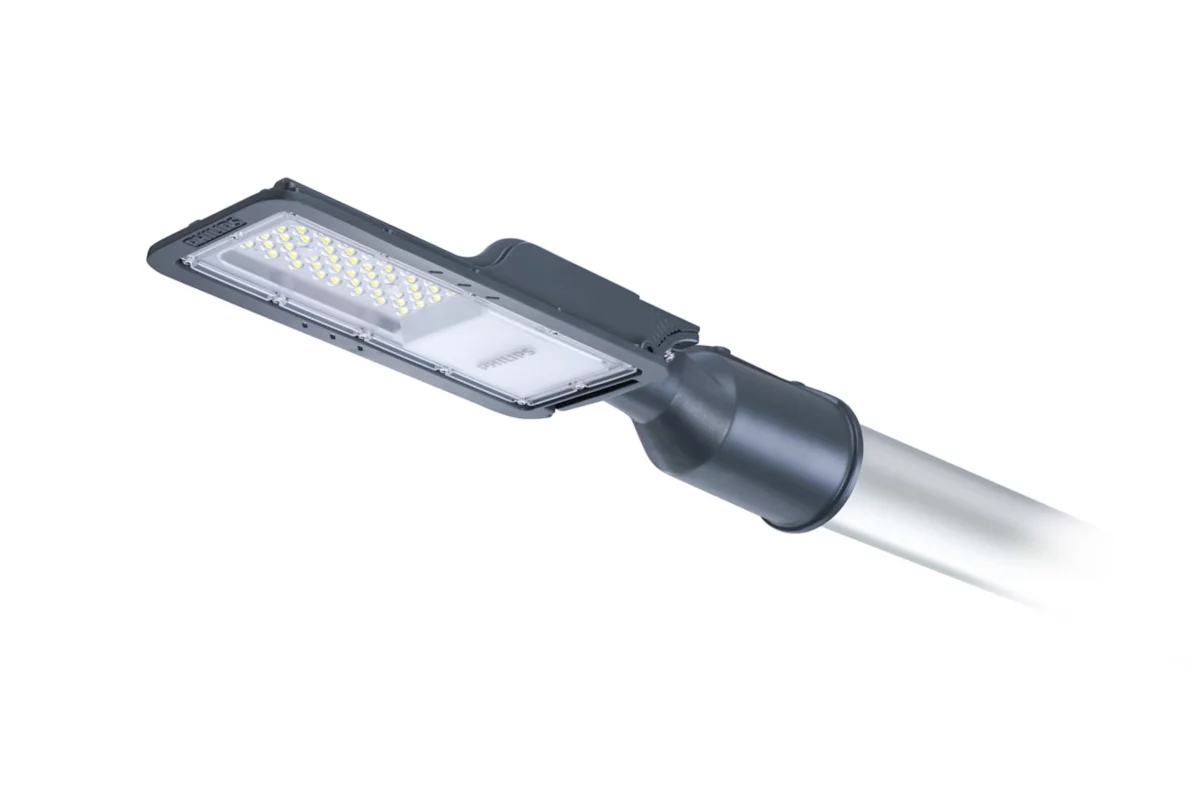

| 911401864987 | BRP121 G2 LED40/WW 30W 220-240V BRP121, 4050 lm, 30 W, 730 warm white, Safety class I, Side-entry for diameter 48 to 60 mm | 4,050 lm | 30 W | 3000 | IP65 | Double asymmetric optic wide beam | |
| 911401865087 | BRP121 G2 LED42/NW 30W 220-240V BRP121, 4200 lm, 30 W, 740 neutral white, Safety class I, Side-entry for diameter 48 to 60 mm | 4,200 lm | 30 W | 4000 | IP65 | Double asymmetric optic wide beam | |
| 911401865187 | BRP121 G2 LED45/CW 30W 220-240V BRP121, 4200 lm, 30 W, 765 cool daylight, Safety class I, Side-entry for diameter 48 to 60 mm | 4,200 lm | 30 W | 6500 | IP65 | Double asymmetric optic wide beam | |

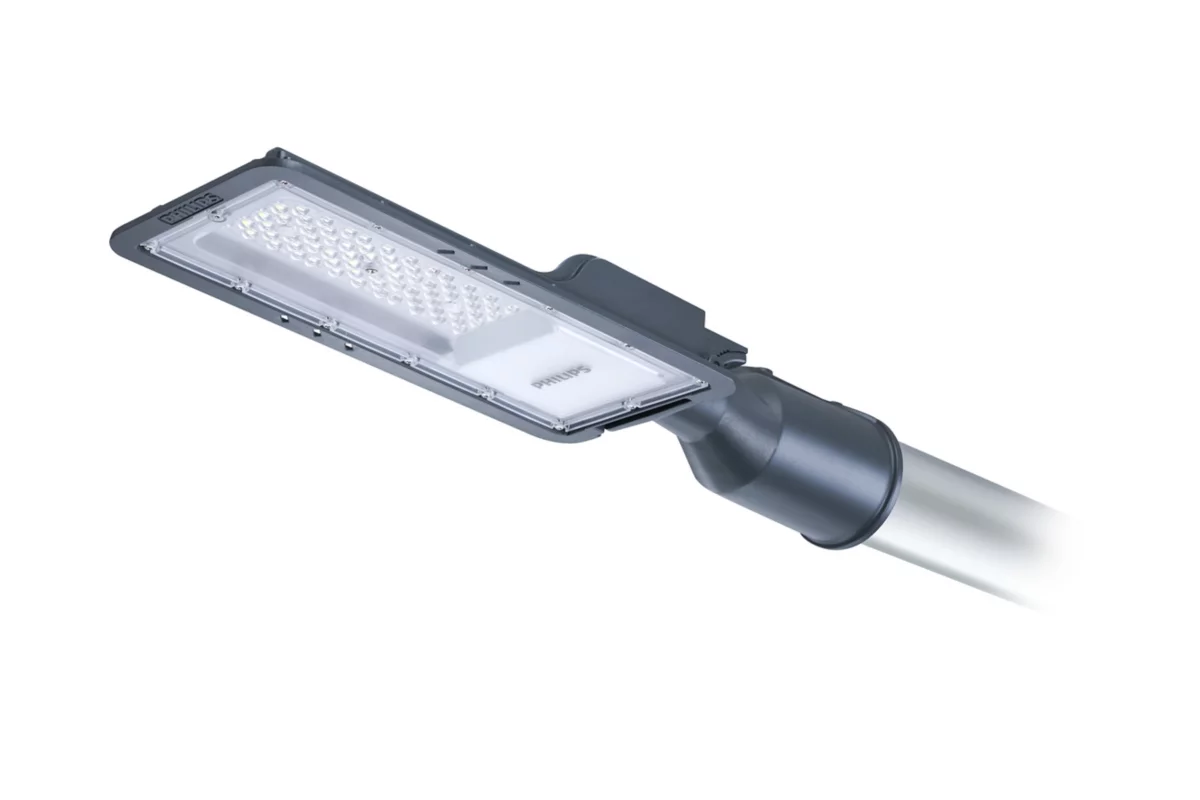

| 911401865287 | BRP121 G2 LED68/WW 50W 220-240V BRP121, 6750 lm, 50 W, 730 warm white, Safety class I, Side-entry for diameter 48 to 60 mm | 6,750 lm | 50 W | 3000 | IP65 | Double asymmetric optic wide beam | |
| 911401865387 | BRP121 G2 LED70/NW 50W 220-240V BRP121, 7000 lm, 50 W, 740 neutral white, Safety class I, Side-entry for diameter 48 to 60 mm | 7,000 lm | 50 W | 4000 | IP65 | Double asymmetric optic wide beam | |
| 911401865487 | BRP121 G2 LED75/CW 50W 220-240V BRP121, 7000 lm, 50 W, 765 cool daylight, Safety class I, Side-entry for diameter 48 to 60 mm | 7,000 lm | 50 W | 6500 | IP65 | Double asymmetric optic wide beam | |

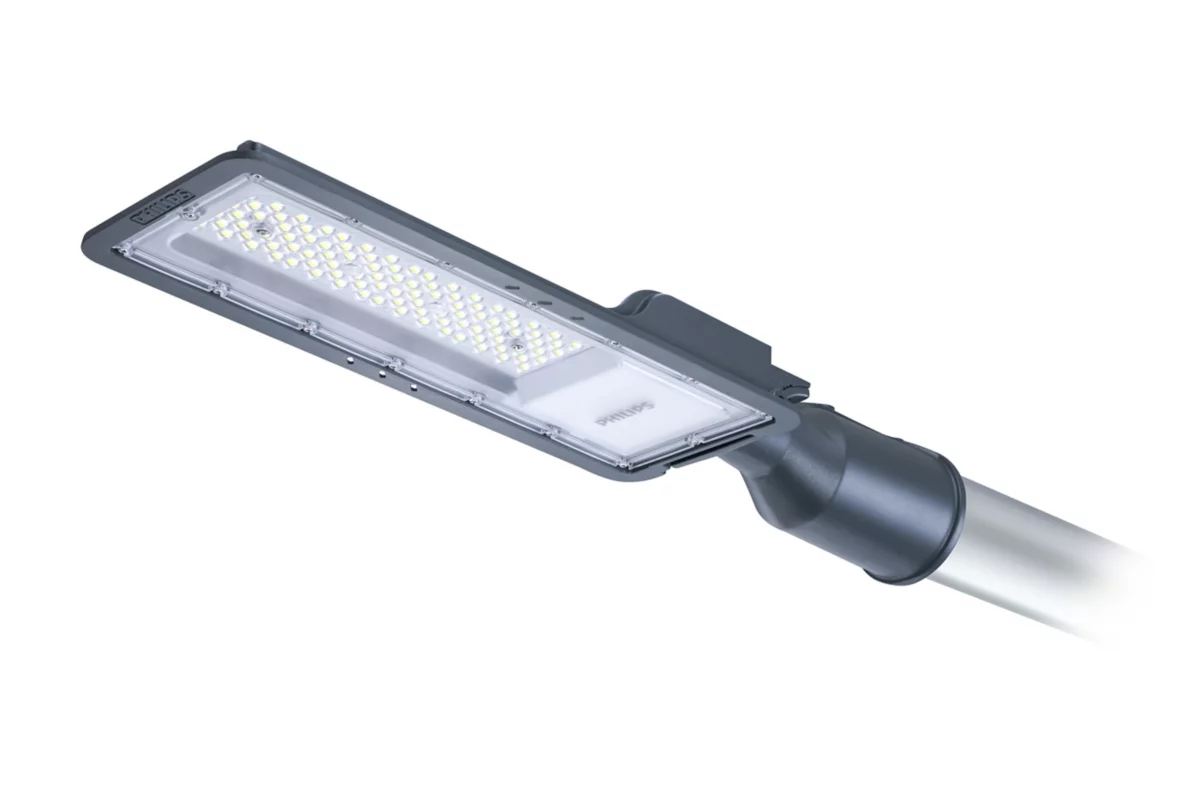

| 911401865587 | BRP121 G2 LED95/WW 70W 220-240V BRP121, 9450 lm, 70 W, 730 warm white, Safety class I, Side-entry for diameter 48 to 60 mm | 9,450 lm | 70 W | 3000 | IP65 | Double asymmetric optic wide beam | |
| 911401865687 | BRP121 G2 LED98/NW 70W 220-240V BRP121, 9800 lm, 70 W, 740 neutral white, Safety class I, Side-entry for diameter 48 to 60 mm | 9,800 lm | 70 W | 4000 | IP65 | Double asymmetric optic wide beam | |
| 911401865787 | BRP121 G2 LED105/CW 70W 220-240V BRP121, 9800 lm, 70 W, 765 cool daylight, Safety class I, Side-entry for diameter 48 to 60 mm | 9,800 lm | 70 W | 6500 | IP65 | Double asymmetric optic wide beam | |

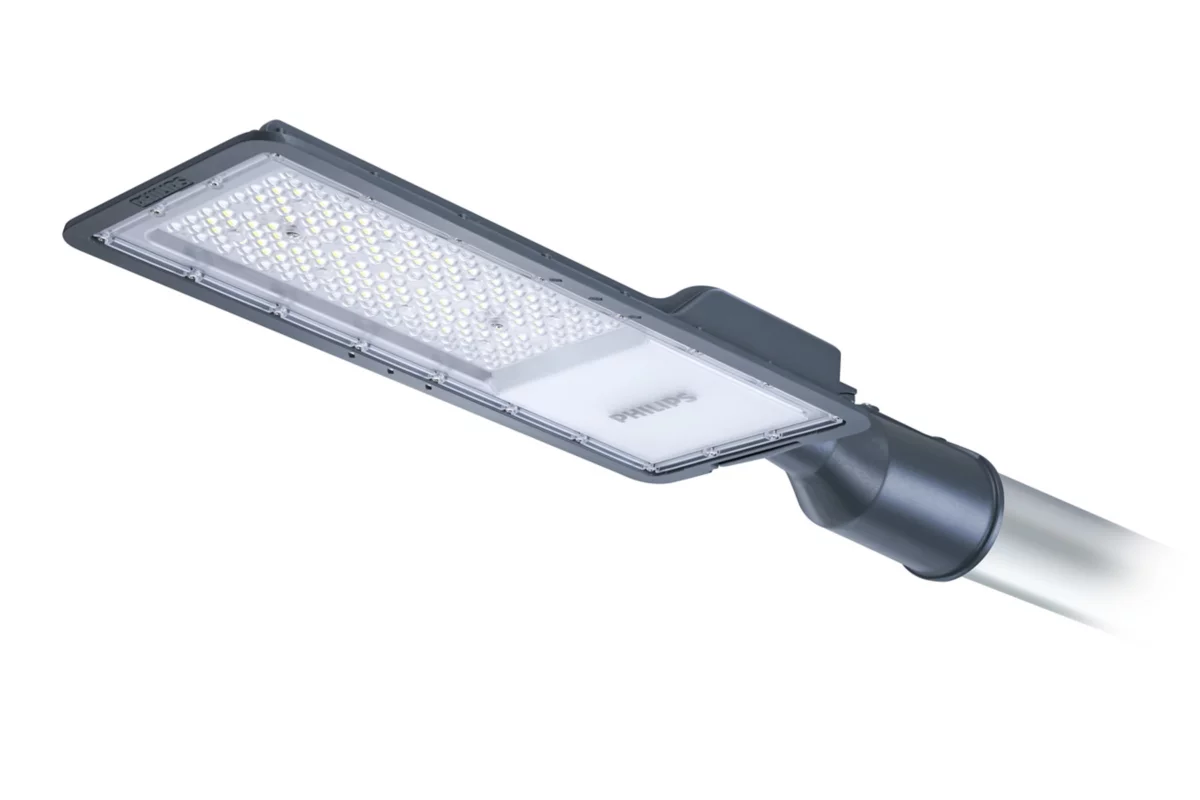

| 911401865887 | BRP121 G2 LED108/WW 80W 220-240V BRP121, 10800 lm, 80 W, 730 warm white, Safety class I, Side-entry for diameter 48 to 60 mm | 10,800 lm | 80 W | 3000 | IP65 | Double asymmetric optic wide beam | |
| 911401865987 | BRP121 G2 LED112/NW 80W 220-240V BRP121, 11200 lm, 80 W, 740 neutral white, Safety class I, Side-entry for diameter 48 to 60 mm | 11,200 lm | 80 W | 4000 | IP65 | Double asymmetric optic wide beam | |
| 911401866087 | BRP121 G2 LED120/CW 80W 220-240V BRP121, 11200 lm, 80 W, 765 cool daylight, Safety class I, Side-entry for diameter 48 to 60 mm | 11,200 lm | 80 W | 6500 | IP65 | Double asymmetric optic wide beam | |

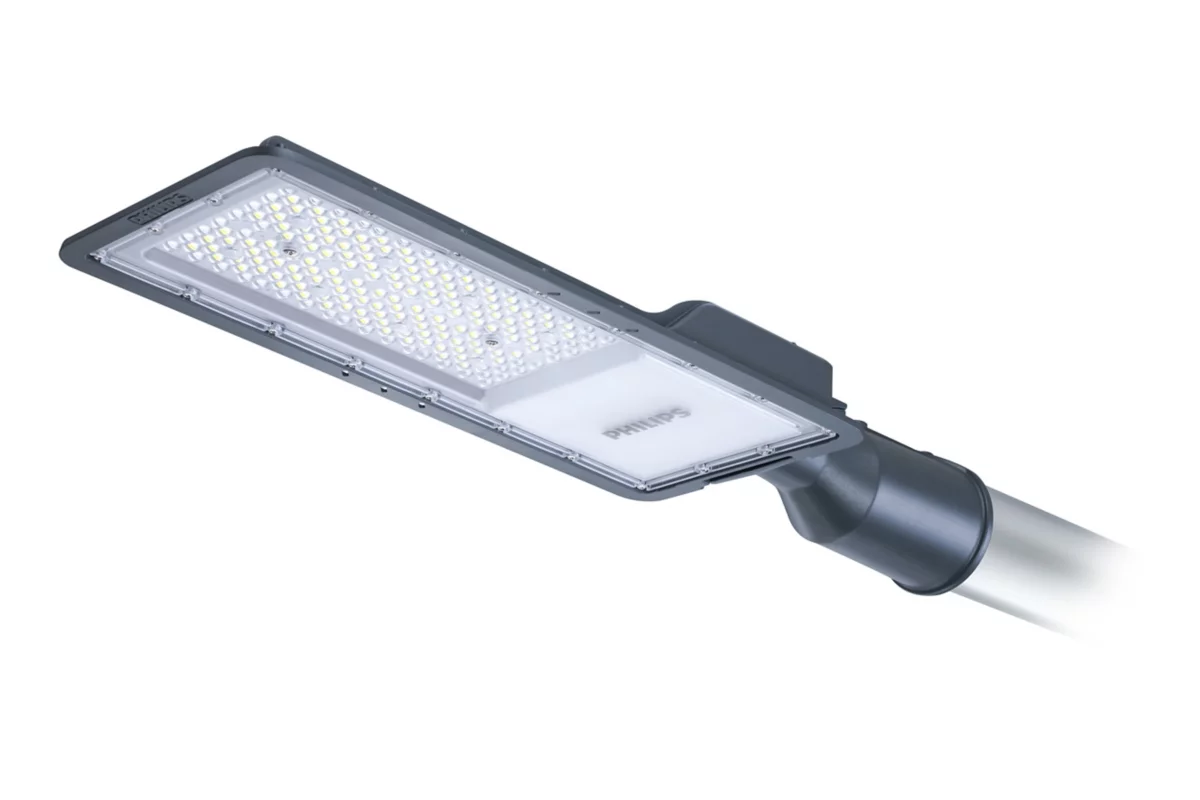

| 911401866187 | BRP121 G2 LED135/WW 100W 220-240V BRP121, 13500 lm, 100 W, 730 warm white, Safety class I, Side-entry for diameter 48 to 60 mm | 13,500 lm | 100 W | 3000 | IP65 | Double asymmetric optic wide beam | |
| 911401866287 | BRP121 G2 LED140/NW 100W 220-240V BRP121, 14000 lm, 100 W, 740 neutral white, Safety class I, Side-entry for diameter 48 to 60 mm | 14,000 lm | 100 W | 4000 | IP65 | Double asymmetric optic wide beam | |
| 911401866387 | BRP121 G2 LED150/CW 100W 220-240V BRP121, 14000 lm, 100 W, 765 cool daylight, Safety class I, Side-entry for diameter 48 to 60 mm | 14,000 lm | 100 W | 6500 | IP65 | Double asymmetric optic wide beam | |
| 911401866487 | BRP121 G2 LED40/WW 30W 220-240V GM BRP121, 4050 lm, 30 W, 730 warm white, Safety class I, Side-entry for diameter 48 to 60 mm | 4,050 lm | 30 W | 3000 | IP65 | Double asymmetric optic wide beam | |
| 911401866587 | BRP121 G2 LED42/NW 30W 220-240V GM BRP121, 4050 lm, 30 W, 740 neutral white, Safety class I, Side-entry for diameter 48 to 60 mm | 4,050 lm | 30 W | 4000 | IP65 | Double asymmetric optic wide beam | |
| 911401866687 | BRP121 G2 LED42/CW 30W 220-240V GM BRP121, 4200 lm, 30 W, 765 cool daylight, Safety class I, Side-entry for diameter 48 to 60 mm | 4,200 lm | 30 W | 6500 | IP65 | Double asymmetric optic wide beam | |
| 911401866787 | BRP121 G2 LED68/WW 50W 220-240V GM BRP121, 6750 lm, 50 W, 730 warm white, Safety class I, Side-entry for diameter 48 to 60 mm | 6,750 lm | 50 W | 3000 | IP65 | Double asymmetric optic wide beam | |
| 911401866887 | BRP121 G2 LED70/NW 50W 220-240V GM BRP121, 7000 lm, 50 W, 740 neutral white, Safety class I, Side-entry for diameter 48 to 60 mm | 7,000 lm | 50 W | 4000 | IP65 | Double asymmetric optic wide beam | |
| 911401866987 | BRP121 G2 LED70/CW 50W 220-240V GM BRP121, 7000 lm, 50 W, 765 cool daylight, Safety class I, Side-entry for diameter 48 to 60 mm | 7,000 lm | 50 W | 6500 | IP65 | Double asymmetric optic wide beam | |
| 911401867087 | BRP121 G2 LED98/NW 70W 220-240V GM BRP121, 9450 lm, 70 W, 740 neutral white, Safety class I, Side-entry for diameter 48 to 60 mm | 9,450 lm | 70 W | 4000 | IP65 | Double asymmetric optic wide beam | |
| 911401867187 | BRP121 G2 LED98/CW 70W 220-240V GM BRP121, 9800 lm, 70 W, 765 cool daylight, Safety class I, Side-entry for diameter 48 to 60 mm | 9,800 lm | 70 W | 6500 | IP65 | Double asymmetric optic wide beam | |
| 911401867287 | BRP121 G2 LED108/WW 80W 220-240V GM BRP121, 10800 lm, 80 W, 730 warm white, Safety class I, Side-entry for diameter 48 to 60 mm | 10,800 lm | 80 W | 3000 | IP65 | Double asymmetric optic wide beam | |
| 911401867387 | BRP121 G2 LED112/NW 80W 220-240V GM BRP121, 11200 lm, 80 W, 740 neutral white, Safety class I, Side-entry for diameter 48 to 60 mm | 11,200 lm | 80 W | 4000 | IP65 | Double asymmetric optic wide beam | |
| 911401867487 | BRP121 G2 LED112/CW 80W 220-240V GM BRP121, 11200 lm, 80 W, 765 cool daylight, Safety class I, Side-entry for diameter 48 to 60 mm | 11,200 lm | 80 W | 6500 | IP65 | Double asymmetric optic wide beam | |
| 911401867587 | BRP121 G2 LED140/CW 100W 220-240V GM BRP121, 14000 lm, 100 W, 765 cool daylight, Safety class I, Side-entry for diameter 48 to 60 mm | 14,000 lm | 100 W | 6500 | IP65 | Double asymmetric optic wide beam | |
| 911401867687 | BRP121 G2 LED70/CW 50W 220-240V D48 GM BRP121, 7000 lm, 50 W, 765 cool daylight, Safety class I, Side-entry for diameter 48 mm | 7,000 lm | 50 W | 6500 | IP65 | Double asymmetric optic wide beam | |

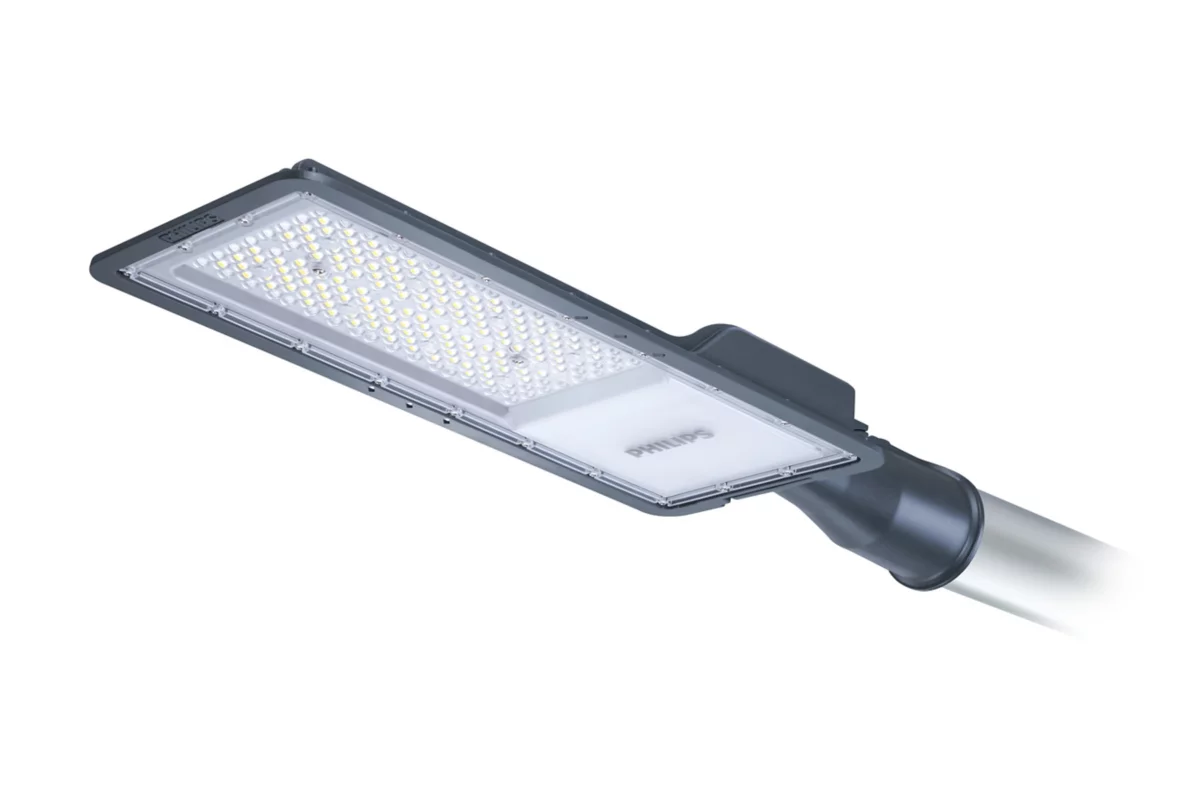

| 911401867787 | BRP121 G2 LED140/CW 100W 220-240V D48 GM BRP121, 14000 lm, 100 W, 765 cool daylight, Safety class I, Side-entry for diameter 48 mm | 14,000 lm | 100 W | 6500 | IP65 | Double asymmetric optic wide beam |
911401864987
BRP121 G2 LED40/WW 30W 220-240V
911401865087
BRP121 G2 LED42/NW 30W 220-240V
911401865187
BRP121 G2 LED45/CW 30W 220-240V
911401865287
BRP121 G2 LED68/WW 50W 220-240V
911401865387
BRP121 G2 LED70/NW 50W 220-240V
911401865487
BRP121 G2 LED75/CW 50W 220-240V
911401865587
BRP121 G2 LED95/WW 70W 220-240V
911401865687
BRP121 G2 LED98/NW 70W 220-240V
911401865787
BRP121 G2 LED105/CW 70W 220-240V
911401865887
BRP121 G2 LED108/WW 80W 220-240V
911401865987
BRP121 G2 LED112/NW 80W 220-240V
911401866087
BRP121 G2 LED120/CW 80W 220-240V
911401866187
BRP121 G2 LED135/WW 100W 220-240V
911401866287
BRP121 G2 LED140/NW 100W 220-240V
911401866387
BRP121 G2 LED150/CW 100W 220-240V
911401866487
BRP121 G2 LED40/WW 30W 220-240V GM
911401866587
BRP121 G2 LED42/NW 30W 220-240V GM
911401866687
BRP121 G2 LED42/CW 30W 220-240V GM
911401866787
BRP121 G2 LED68/WW 50W 220-240V GM
911401866887
BRP121 G2 LED70/NW 50W 220-240V GM
911401866987
BRP121 G2 LED70/CW 50W 220-240V GM
911401867087
BRP121 G2 LED98/NW 70W 220-240V GM
911401867187
BRP121 G2 LED98/CW 70W 220-240V GM
911401867287
BRP121 G2 LED108/WW 80W 220-240V GM
911401867387
BRP121 G2 LED112/NW 80W 220-240V GM
911401867487
BRP121 G2 LED112/CW 80W 220-240V GM
911401867587
BRP121 G2 LED140/CW 100W 220-240V GM
911401867687
BRP121 G2 LED70/CW 50W 220-240V D48 GM
911401867787
BRP121 G2 LED140/CW 100W 220-240V D48 GM
