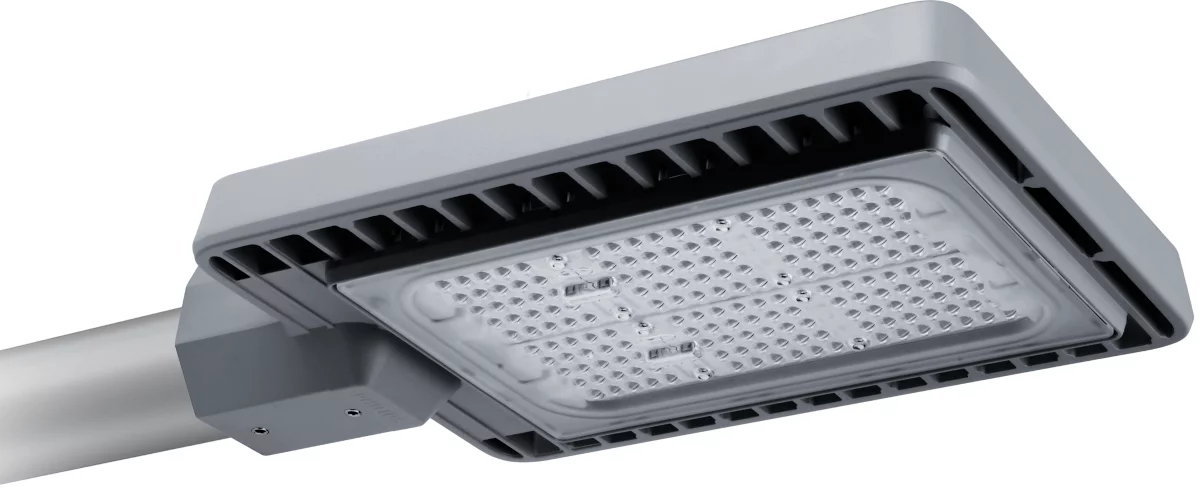

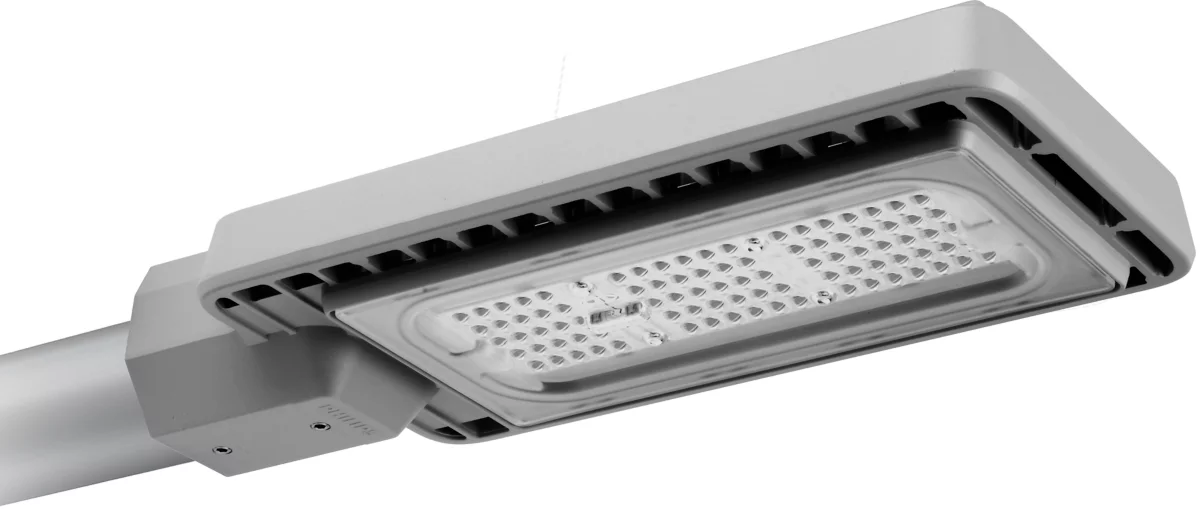

Philips BRP39X BRP391 / BRP392 / BRP393
Philips BRP39X BRP391 / BRP392 / BRP393 — photo 2Philips BRP39X BRP391 / BRP392 / BRP393 — photo 3

Data and documents come from the official Signify (Philips) catalogue.

Office lightingPublic spacesRoad and street

BRP39X

BRP391 / BRP392 / BRP393

RoadFlair, 7300 lm, 47 W, Neutral white, Safety class I

Luminous flux (lm)
2,300–30,500 lm
Wattage (W)
16–221 W
Efficacy (lm/W)
130–155 lm/W
CCT (K)
3000 / 4000
IP rating
IP66
IK rating
IK08

List the order codes — we prepare a quotation and check availability. · 24 order codes

Family specifications

Ranges across every order code of the family. The exact values of a specific order code are in the table below: the «Specifications» button in its row.

Light technical

Luminous flux (lm)
2,300–30,500 lm
Efficacy (lm/W)
130–155 lm/W
CCT (K)
3000 / 4000
Color rendering
70-79
Optical cover
Polycarbonate / Polycarbonate micro lens optic / Clear dome

Electrical and controls

Wattage (W)
16–221 W
Dimming controls
DALI / - / Analog

Mechanical and housing

Mounting type
Side-entry for diameter 48 to 60 mm
Housing material
Aluminum die cast / Aluminium die-cast LM6 - alloy grade (EN AC-44300)
Color of Housing
Grey
IP rating
IP66
IK rating
IK08
Length (mm)
402–732 mm
Width (mm)
156–295 mm
Height (mm)
85–140 mm
0

Versions and order codes

Every version of the family from the official catalogue. Click PDF to download the datasheet of a specific order code.

Tick up to 4 order codes to see their specifications side by side.

  • PDF
    Luminous flux
    7,300 lm
    Wattage
    47 W
    CCT
    4000
    IP
    IP66
  • PDF
    Luminous flux
    10,700 lm
    Wattage
    74 W
    CCT
    4000
    IP
    IP66
  • PDF
    Luminous flux
    20,100 lm
    Wattage
    137 W
    CCT
    4000
    IP
    IP66
  • PDF
    Luminous flux
    30,500 lm
    Wattage
    221 W
    CCT
    4000
    IP
    IP66
  • PDF
    Luminous flux
    2,300 lm
    Wattage
    16 W
    CCT
    4000
    IP
    IP66
  • PDF
    Luminous flux
    3,600 lm
    Wattage
    25 W
    CCT
    4000
    IP
    IP66
  • PDF
    Luminous flux
    6,500 lm
    Wattage
    46 W
    CCT
    4000
    IP
    IP66
  • PDF
    Luminous flux
    10,400 lm
    Wattage
    74 W
    CCT
    4000
    IP
    IP66
  • PDF
    Luminous flux
    8,123 lm
    Wattage
    57 W
    CCT
    4000
    IP
    IP66
  • PDF
    Luminous flux
    6,874 lm
    Wattage
    48 W
    CCT
    4000
    IP
    IP66
  • PDF
    Luminous flux
    4,999 lm
    Wattage
    36 W
    CCT
    4000
    IP
    IP66
  • PDF
    Luminous flux
    9,957 lm
    Wattage
    70 W
    CCT
    4000
    IP
    IP66
  • PDF
    Luminous flux
    16,179 lm
    Wattage
    113 W
    CCT
    4000
    IP
    IP66
  • PDF
    Luminous flux
    14,935 lm
    Wattage
    104 W
    CCT
    4000
    IP
    IP66
  • PDF
    Luminous flux
    23,647 lm
    Wattage
    166 W
    CCT
    4000
    IP
    IP66
  • PDF
    Luminous flux
    7,615 lm
    Wattage
    57 W
    CCT
    3000
    IP
    IP66
  • PDF
    Luminous flux
    6,444 lm
    Wattage
    48 W
    CCT
    3000
    IP
    IP66
  • PDF
    Luminous flux
    5,272 lm
    Wattage
    41 W
    CCT
    3000
    IP
    IP66
  • PDF
    Luminous flux
    4,687 lm
    Wattage
    36 W
    CCT
    3000
    IP
    IP66
  • PDF
    Luminous flux
    10,501 lm
    Wattage
    80 W
    CCT
    3000
    IP
    IP66
  • PDF
    Luminous flux
    21,089 lm
    Wattage
    158 W
    CCT
    3000
    IP
    IP66
  • PDF
    Luminous flux
    15,168 lm
    Wattage
    113 W
    CCT
    3000
    IP
    IP66
  • PDF
    Luminous flux
    11,668 lm
    Wattage
    88 W
    CCT
    3000
    IP
    IP66
  • PDF
    Luminous flux
    22,169 lm
    Wattage
    166 W
    CCT
    3000
    IP
    IP66
Showing 24 of 24

Compare order codes

Specifications
The selected order codes do not differ in these specifications.
