Family specifications
Ranges across every order code of the family. The exact values of a specific order code are in the table below: the «Specifications» button in its row.
Light technical
Luminous flux (lm)
21,000–32,300 lm
Efficacy (lm/W)
170–180 lm/W
CCT (K)
4000 / 5000
Color rendering
70-79
Light distribution
Distribution medium
Electrical and controls
Wattage (W)
120–190 W
Dimming controls
- / Analog
Mechanical and housing
Mounting type
Spigot
Housing material
Aluminium
Color of Housing
Grey
IP rating
IP66
IK rating
IK10
Length (mm)
425 mm
Width (mm)
241 mm
Height (mm)
135 mm

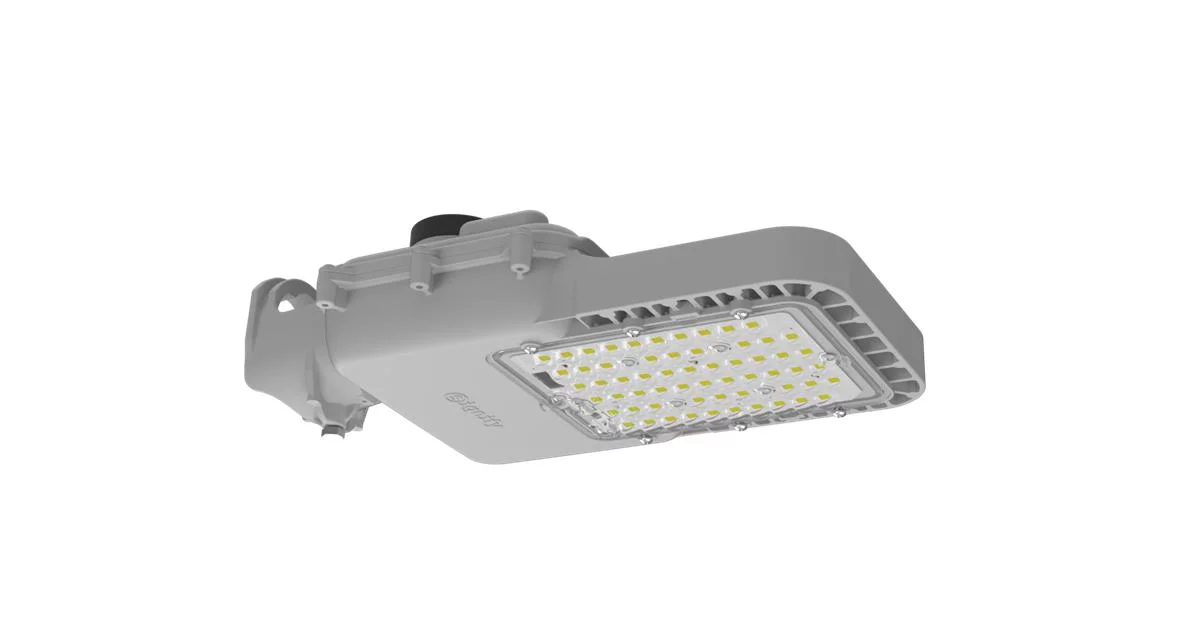

Designed for highway environments, EssentialForce Road combines high efficacy, great optical application and proven reliability. Featuring a corrosion-resistant die-cast aluminum housing, surge protection and compatibility with smart lighting systems, it provides a cost-effective solution for highways.
Features
Efficacy up to 185 lm/W
Flux up to 32300 lumens
Die cast aluminium body, Grey Munsel N6.5 painting with high resistance to corrosion, tested for 1.000 hours salt spray
lifetime of 102khours
IK10
Standard surge protection: 10kV/12kA.
Light distribution compliant with NBR 5101
Integrated tilt(5 degrees)
NEMA socket, allowing for remote lighting management.
PROCEL compliant(UE versions)
Safety and installation: Follow the mounting instructions provided by the manufacturer.
Benefits
EssentialForce Road combines high efficacy, great optical application and installation versatility to provide safe and efficient lighting for highways, expressways and roads, supporting compliance with road lighting standards while minimizing energy consumption.
With lumen packages reaching up to 32300 lumens and compatibility with smart lighting systems through its NEMA socket, EssentialForce Road is ready for modern transportation infrastructure projects requiring performance, connectivity and future scalability.
Built to withstand demanding outdoor conditions, EssentialForce Road delivers proven robustness through corrosion-resistant construction, surge protection, IK10 impact resistance and an extended lifetime, reducing maintenance interventions and total cost of ownership.
