Family specifications
Ranges across every order code of the family. The exact values of a specific order code are in the table below: the «Specifications» button in its row.
Light technical
Luminous flux (lm)
41,400–45,500 lm
Efficacy (lm/W)
138 lm/W
CCT (K)
5700
Color rendering
70-79
Light distribution
Wide beam / Wide street optic
Optical cover
UV stabilized Polycarbonate cover
Electrical and controls
Wattage (W)
300–330 W
Dimming controls
Analog
Mechanical and housing
Mounting type
Pole Mounting
Housing material
Aluminum die cast
Color of Housing
Grey
IP rating
IP66
IK rating
IK10

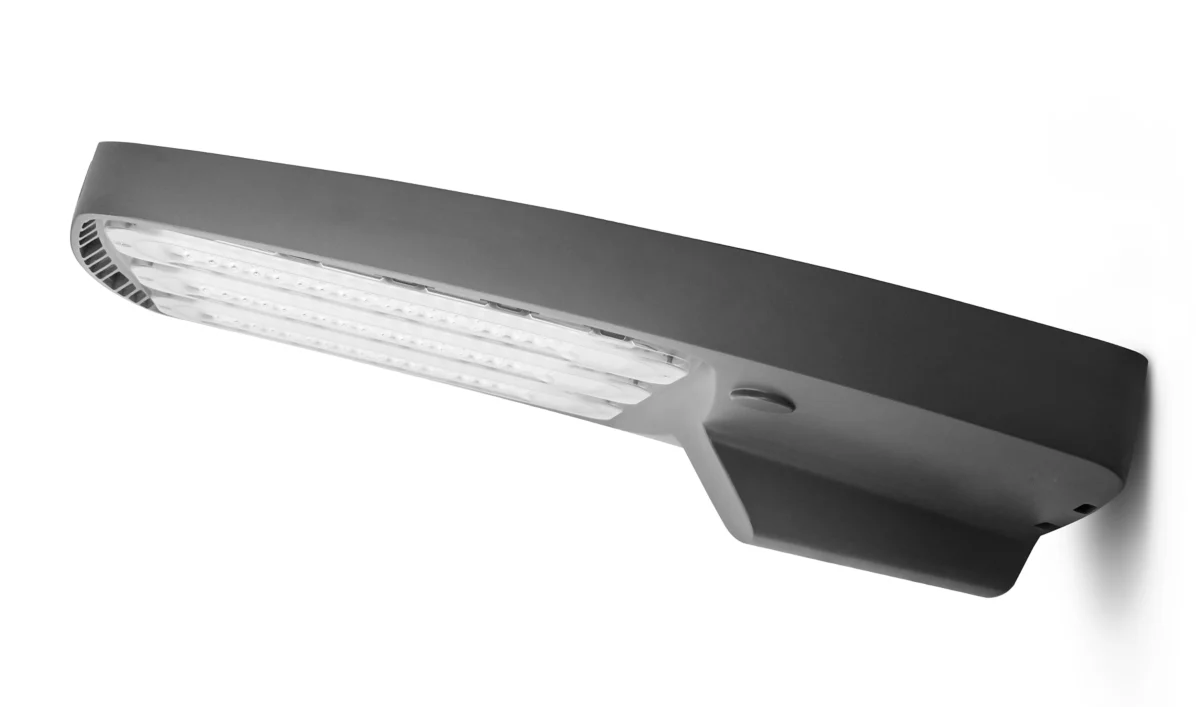

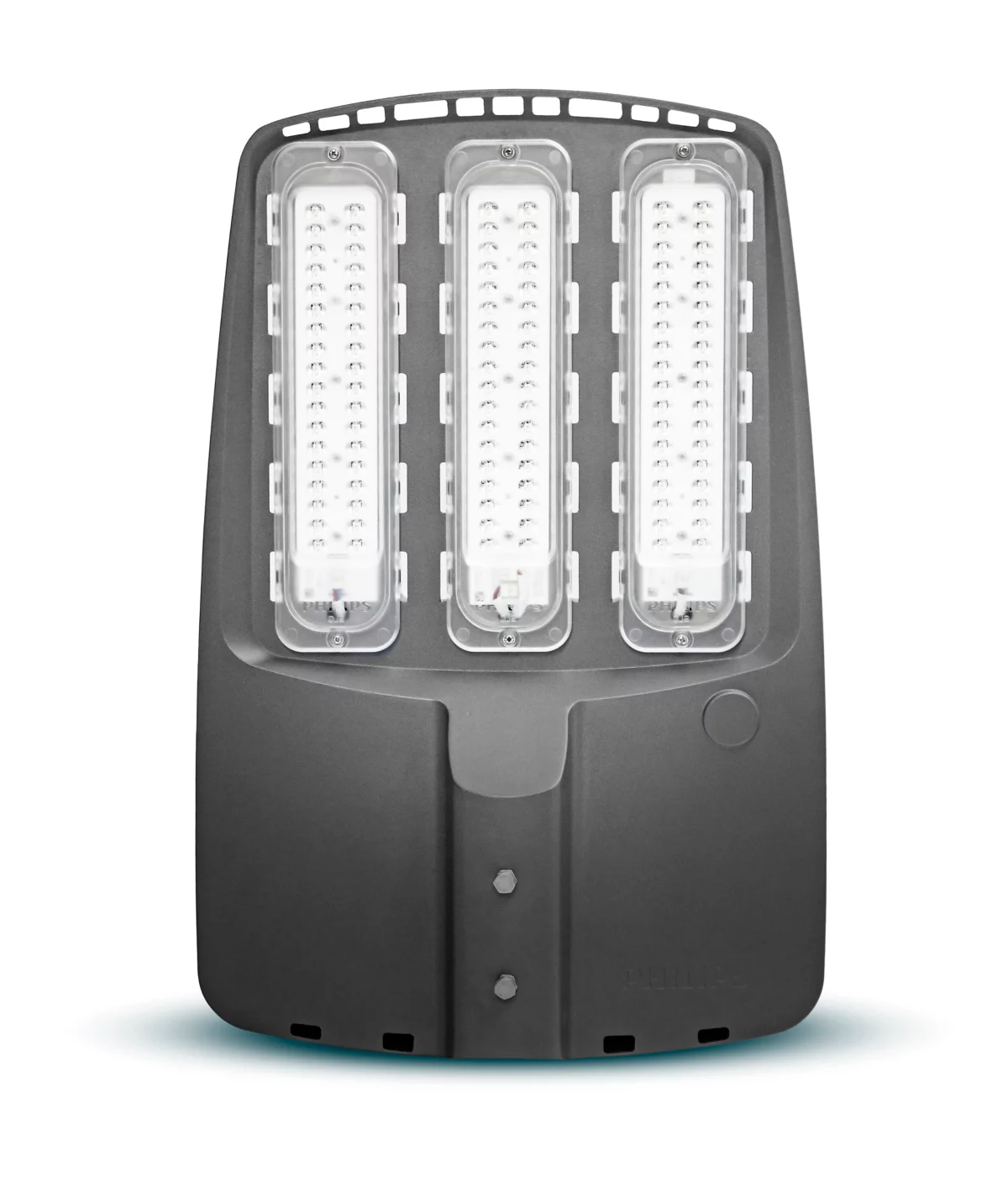

Skyline e Way is a wide range of robust yet compact outdoor LED luminaires, designed with a focus on lighting wider roads with best of uniformities. Based on Signify’ s proven track record in road and urban LED lighting, the Skyline E Way luminaires benefit from numerous innovations to provide the ultimate experience for National Highways, utilities, contractors and citizens. Available in various optics and wattages, Skyline e Way provides a well dimensioned, efficient outdoor lighting solution ranging for various high road applications such as Highways and Expressways.
Features
LM6 Alloy, Robust pressure Die cast Aluminium housing.
High Energy efficient solution (140 lm/W)
High Impact resistance IK10
Four different optics for different road widths
Benefits
LED lighting solution that stands out in terms of efficiency, versatility, and connectivity
Stands out as best in class in circular economy. Robust mechanical structure enabling high IP and IK ratings
High Lumen packages makes a differentiated offering for different applications
An option of using 7-Pin NEMA socket enabling easy access to the digital era of lighting with advanced lighting features that plan, monitor and control outdoor lighting networks.
