Ideal for applications in roads and street, avenues and parks, always complying with the highest road lighting standards.
Data and documents come from the official Signify (Philips) catalogue.

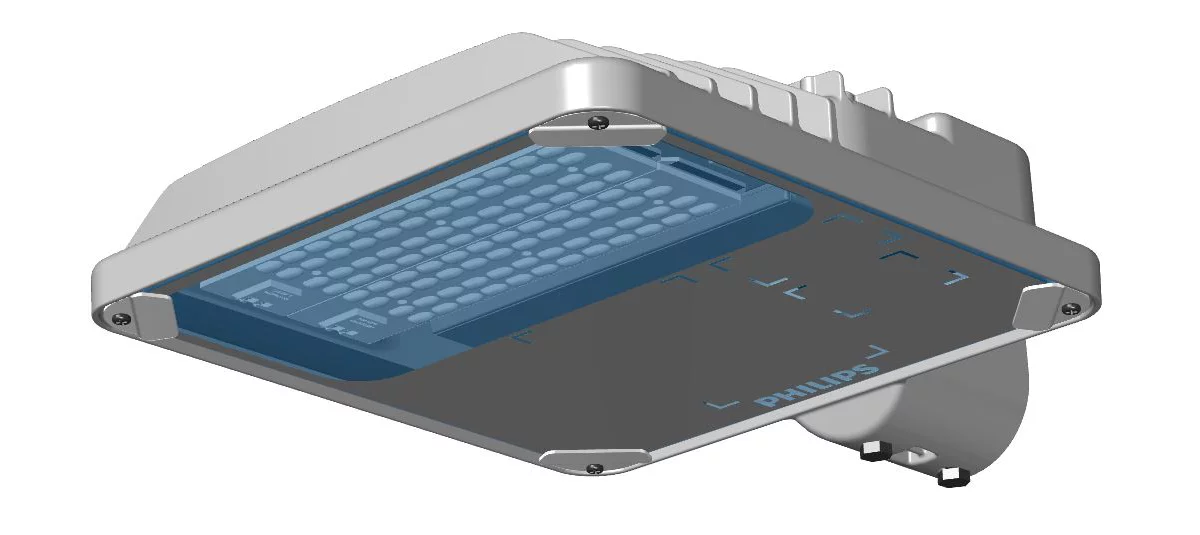

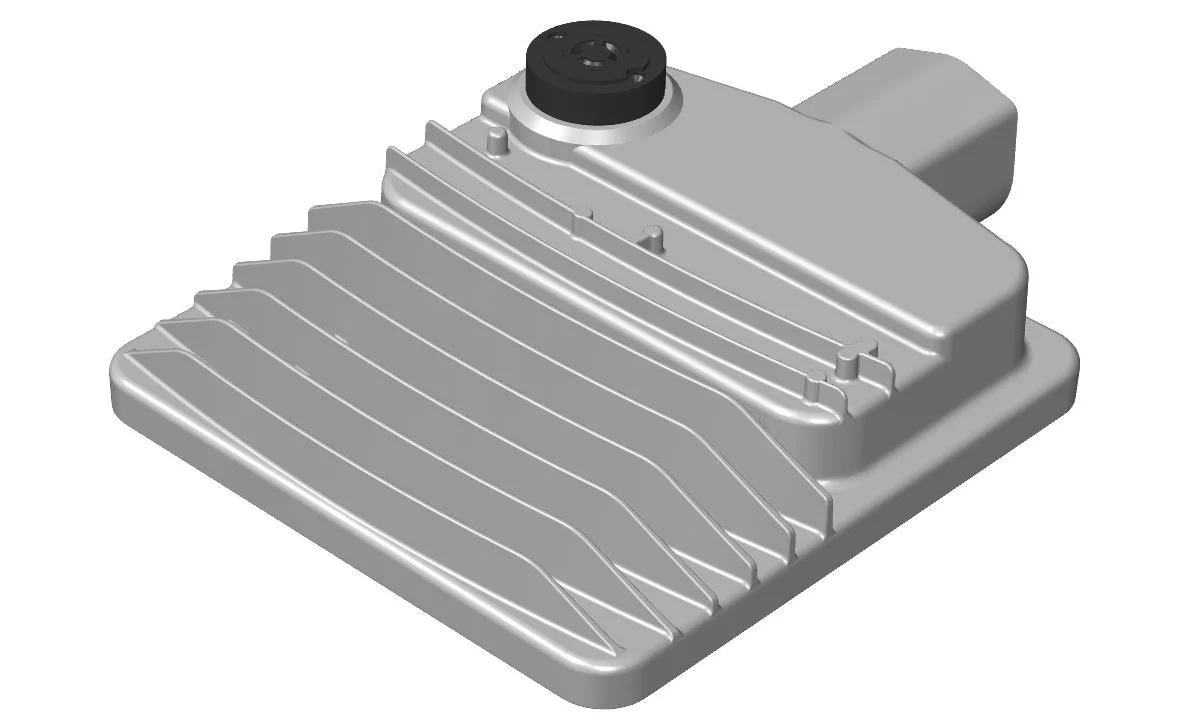

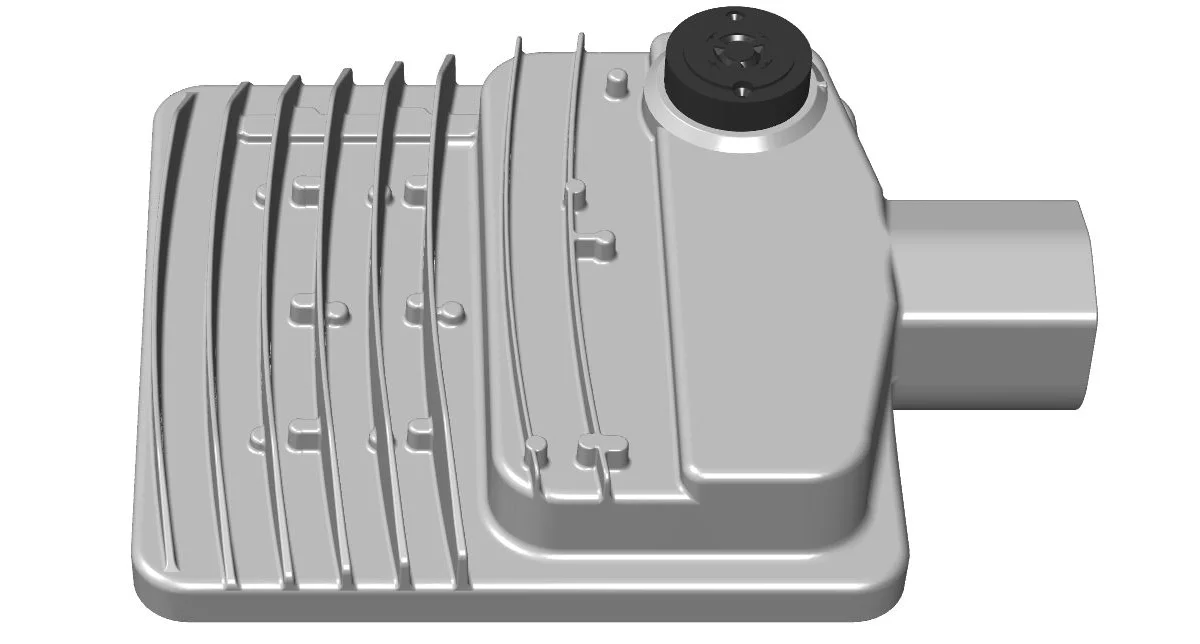

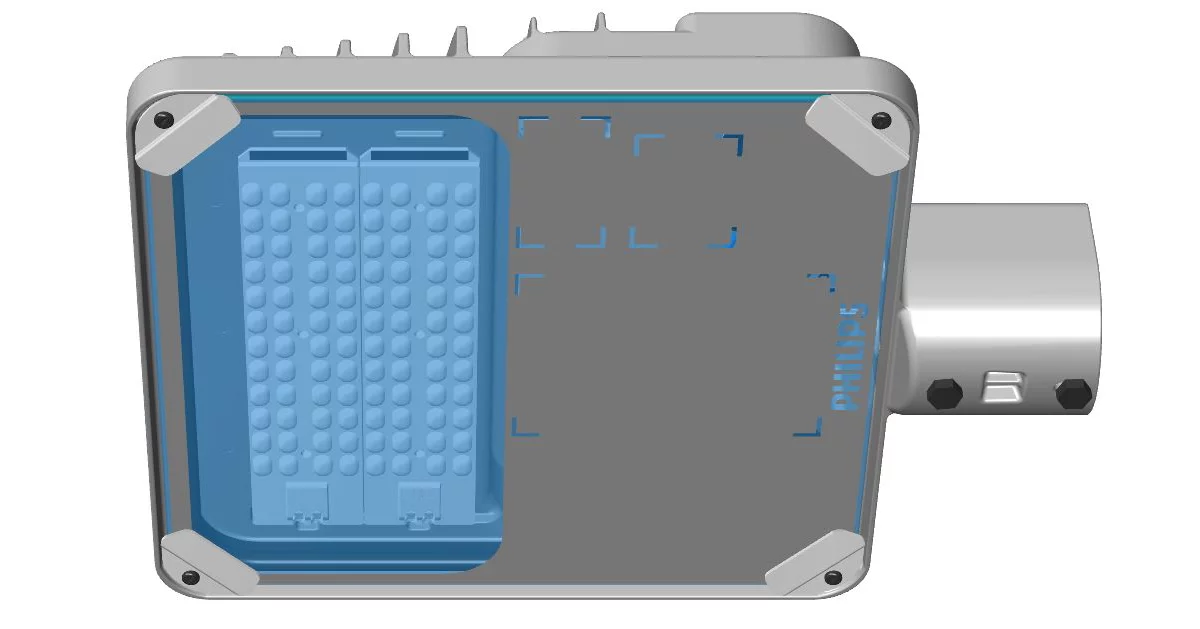

BRP220 / BRP221
Ideal for applications in roads and street, avenues and parks, always complying with the highest road lighting standards.
List the order codes — we prepare a quotation and check availability. · 21 order codes
Ideal for applications in roads and street, avenues and parks, always complying with the highest road lighting standards.
Every version of the family from the official catalogue. Click PDF to download the datasheet of a specific order code.
| Order code | Name | Luminous flux | Wattage | CCT | IP | Optic | |
|---|---|---|---|---|---|---|---|
| 919306031369 | BRP220 LED70-4S3/NW 55W DMB P7 UrbanStep Plus, 6746.9 lm, 54.7 W, Analog, Safety class I, Side-entry for diameter 48 to 60 mm | 6,746.9 lm | 54.7 W | 4000 | IP66 | — | |
| 919306031371 | BRP220 LED83-4S3/NW 68W DMB P7 UrbanStep Plus, 8054.3 lm, 67.6 W, Analog, Safety class I, Side-entry for diameter 48 to 60 mm | 8,054.3 lm | 67.6 W | 4000 | IP66 | — | |
| 919306031372 | BRP220 LED96-4S3/NW 80W DMB P7 UrbanStep Plus, 9191.8 lm, 81 W, Analog, Safety class I, Side-entry for diameter 48 to 60 mm | 9,191.8 lm | 81 W | 4000 | IP66 | — | |
| 919306031373 | BRP220 LED105-4S3/NW 91W DMB P7 UrbanStep Plus, 10506.4 lm, 92 W, Analog, Safety class I, Side-entry for diameter 48 to 60 mm | 10,506.4 lm | 92 W | 4000 | IP66 | — | |
| 919306031379 | BRP220 LED70-4S3/NW 55W DW1 P7 UrbanStep Plus, 6746.9 lm, 54.7 W, Analog, Safety class I, Side-entry for diameter 48 to 60 mm | 6,746.9 lm | 54.7 W | 4000 | IP66 | — | |
| 919306031381 | BRP220 LED83-4S3/NW 68W DW1 P7 UrbanStep Plus, 8054.3 lm, 67.6 W, Analog, Safety class I, Side-entry for diameter 48 to 60 mm | 8,054.3 lm | 67.6 W | 4000 | IP66 | — | |
| 919306031382 | BRP220 LED96-4S3/NW 80W DW1 P7 UrbanStep Plus, 9191.8 lm, 81 W, Analog, Safety class I, Side-entry for diameter 48 to 60 mm | 9,191.8 lm | 81 W | 4000 | IP66 | — | |
| 919306031389 | BRP220 LED70-4S3/CW 55W DW1 P7 UrbanStep Plus, 6705 lm, 54.7 W, Analog, Safety class I, Side-entry for diameter 48 to 60 mm | 6,705 lm | 54.7 W | 5000 | IP66 | — | |
| 919306031391 | BRP220 LED83-4S3/CW 68W DW1 P7 UrbanStep Plus, 8010.3 lm, 67.6 W, Analog, Safety class I, Side-entry for diameter 48 to 60 mm | 8,010.3 lm | 67.6 W | 5000 | IP66 | — | |
| 919306031392 | BRP220 LED96-4S3/CW 80W DW1 P7 UrbanStep Plus, 9225.2 lm, 81 W, Analog, Safety class I, Side-entry for diameter 48 to 60 mm | 9,225.2 lm | 81 W | 5000 | IP66 | — | |
| 919306031393 | BRP220 LED105-4S3/CW 91W DW1 P7 UrbanStep Plus, 10108 lm, 92 W, Analog, Safety class I, Side-entry for diameter 48 to 60 mm | 10,108 lm | 92 W | 5000 | IP66 | — | |
| 919306031399 | BRP220 LED70-4S3/CW 55W DMB P7 UrbanStep Plus, 6705 lm, 54.7 W, Analog, Safety class I, Side-entry for diameter 48 to 60 mm | 6,705 lm | 54.7 W | 5000 | IP66 | — | |
| 919306031401 | BRP220 LED83-4S3/CW 68W DMB P7 UrbanStep Plus, 8010.3 lm, 67.6 W, Analog, Safety class I, Side-entry for diameter 48 to 60 mm | 8,010.3 lm | 67.6 W | 5000 | IP66 | — | |
| 919306031402 | BRP220 LED96-4S3/CW 80W DMB P7 UrbanStep Plus, 9225.2 lm, 81 W, Analog, Safety class I, Side-entry for diameter 48 to 60 mm | 9,225.2 lm | 81 W | 5000 | IP66 | — | |
| 919306031403 | BRP220 LED105-4S3/CW 91W DMB P7 UrbanStep Plus, 10108 lm, 92 W, Analog, Safety class I, Side-entry for diameter 48 to 60 mm | 10,108 lm | 92 W | 5000 | IP66 | — | |
| 919306031491 | BRP221 LED35-6S/NW 25W DW1 P7 0-10 UrbanStep Plus, 3500 lm, 25 W, 140° x 70°, Analog, Safety class I, Side-entry for diameter 48 to 60 mm | 3,500 lm | 25 W | 4000 | IP65 | — | |
| 919306031531 | BRP221 LED51-6S/NW 34W DW1 P7 0-10 UrbanStep Plus, 5100 lm, 34 W, 140° x 70°, Analog, Safety class I, Side-entry for diameter 48 to 60 mm | 5,100 lm | 34 W | 4000 | IP65 | — | |
| 919306031551 | BRP221 LED64-6S/NW 42W DW1 P7 0-10 UrbanStep Plus, 6400 lm, 42 W, 140° x 70°, Analog, Safety class I, Side-entry for diameter 48 to 60 mm | 6,400 lm | 42 W | 4000 | IP65 | — | |
| 919306031581 | BRP221 LED78-6S/NW 52W DW1 P7 0-10 UrbanStep Plus, 7800 lm, 52 W, 140° x 70°, Analog, Safety class I, Side-entry for diameter 48 to 60 mm | 7,800 lm | 52 W | 4000 | IP65 | — | |
| 919306031621 | BRP221 LED90-6S/NW 60W DW1 P7 0-10 UrbanStep Plus, 9000 lm, 60 W, 140° x 70°, Analog, Safety class I, Side-entry for diameter 48 to 60 mm | 9,000 lm | 60 W | 4000 | IP65 | — | |
| 919306031661 | BRP221 LED98-6S/NW 70W DW1 P7 0-10 UrbanStep Plus, 9800 lm, 70 W, 140° x 70°, Analog, Safety class I, Side-entry for diameter 48 to 60 mm | 9,800 lm | 70 W | 4000 | IP65 | — |
919306031369
BRP220 LED70-4S3/NW 55W DMB P7
919306031371
BRP220 LED83-4S3/NW 68W DMB P7
919306031372
BRP220 LED96-4S3/NW 80W DMB P7
919306031373
BRP220 LED105-4S3/NW 91W DMB P7
919306031379
BRP220 LED70-4S3/NW 55W DW1 P7
919306031381
BRP220 LED83-4S3/NW 68W DW1 P7
919306031382
BRP220 LED96-4S3/NW 80W DW1 P7
919306031389
BRP220 LED70-4S3/CW 55W DW1 P7
919306031391
BRP220 LED83-4S3/CW 68W DW1 P7
919306031392
BRP220 LED96-4S3/CW 80W DW1 P7
919306031393
BRP220 LED105-4S3/CW 91W DW1 P7
919306031399
BRP220 LED70-4S3/CW 55W DMB P7
919306031401
BRP220 LED83-4S3/CW 68W DMB P7
919306031402
BRP220 LED96-4S3/CW 80W DMB P7
919306031403
BRP220 LED105-4S3/CW 91W DMB P7
919306031491
BRP221 LED35-6S/NW 25W DW1 P7 0-10
919306031531
BRP221 LED51-6S/NW 34W DW1 P7 0-10
919306031551
BRP221 LED64-6S/NW 42W DW1 P7 0-10
919306031581
BRP221 LED78-6S/NW 52W DW1 P7 0-10
919306031621
BRP221 LED90-6S/NW 60W DW1 P7 0-10
919306031661
BRP221 LED98-6S/NW 70W DW1 P7 0-10
