Family specifications
Ranges across every order code of the family. The exact values of a specific order code are in the table below: the «Specifications» button in its row.
Light technical
Luminous flux (lm)
5,700–31,600 lm
Efficacy (lm/W)
140 lm/W
CCT (K)
4000
Color rendering
70-79
Optical cover
Polycarbonate micro lens optic
Electrical and controls
Wattage (W)
40–220 W
Dimming controls
Analog
Mechanical and housing
Housing material
Aluminum die cast
Color of Housing
Grey
IP rating
IP66
IK rating
IK08
Length (mm)
374–1,011 mm
Width (mm)
123–248 mm
Height (mm)
91–154 mm

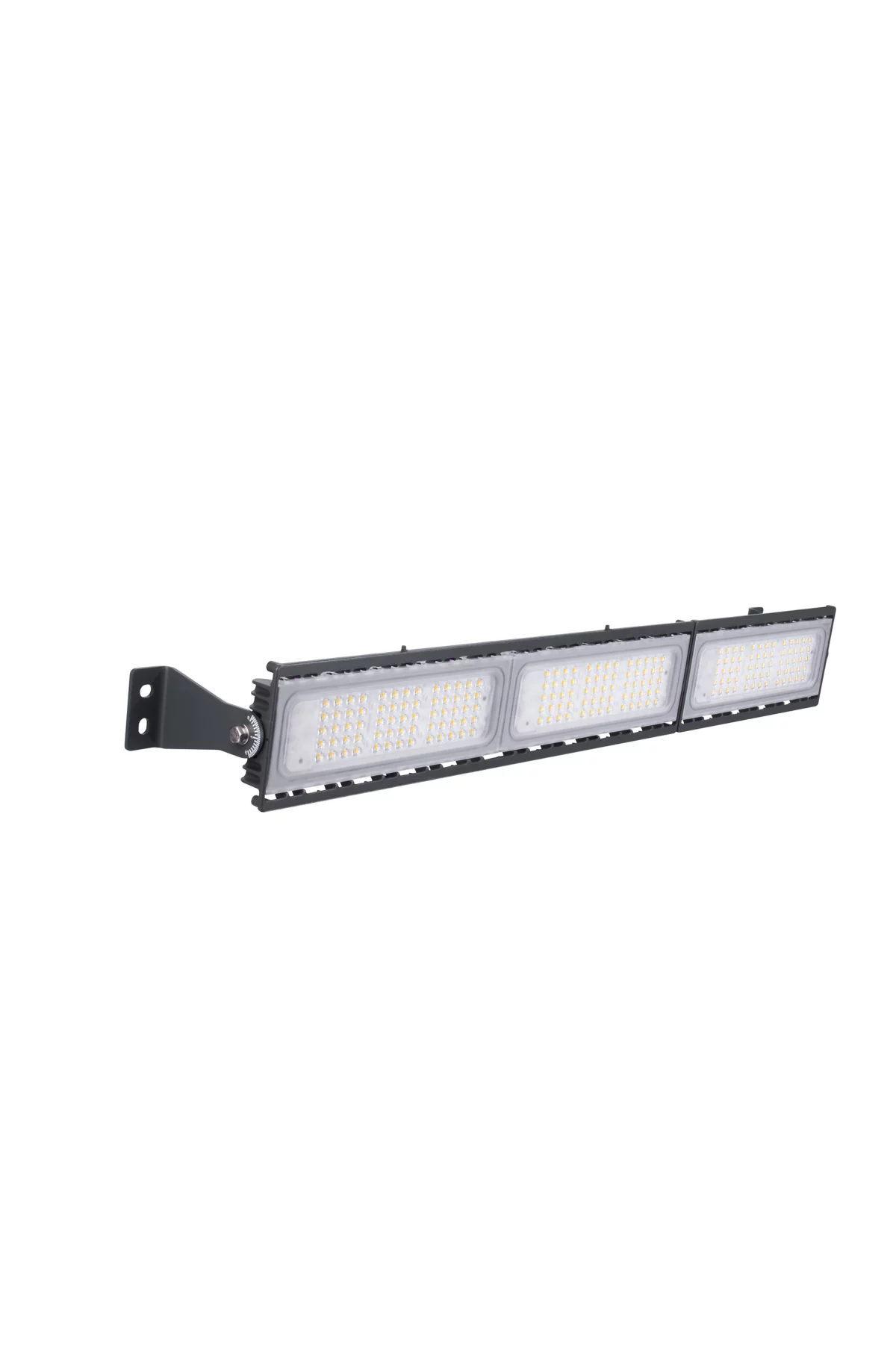

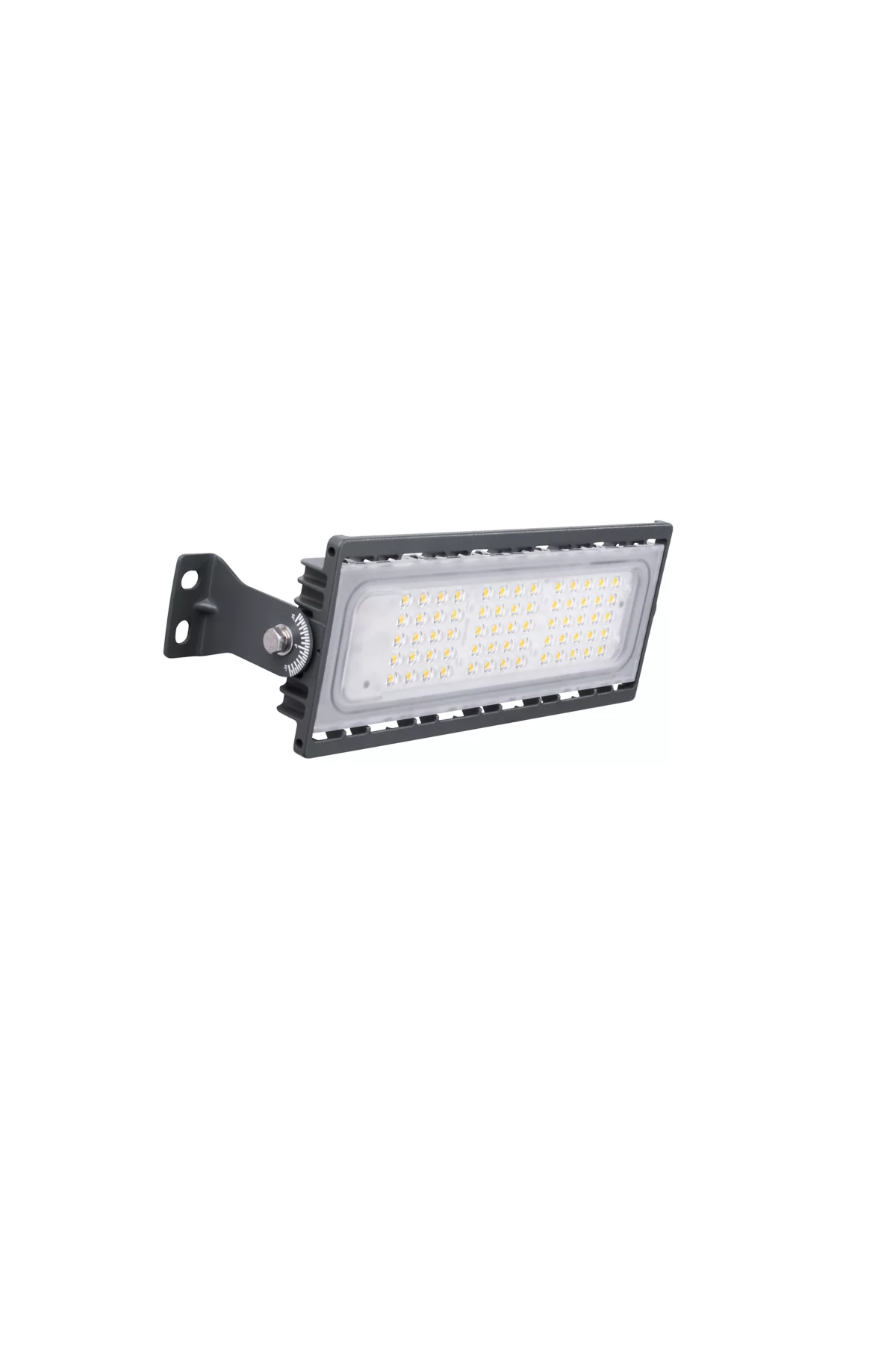

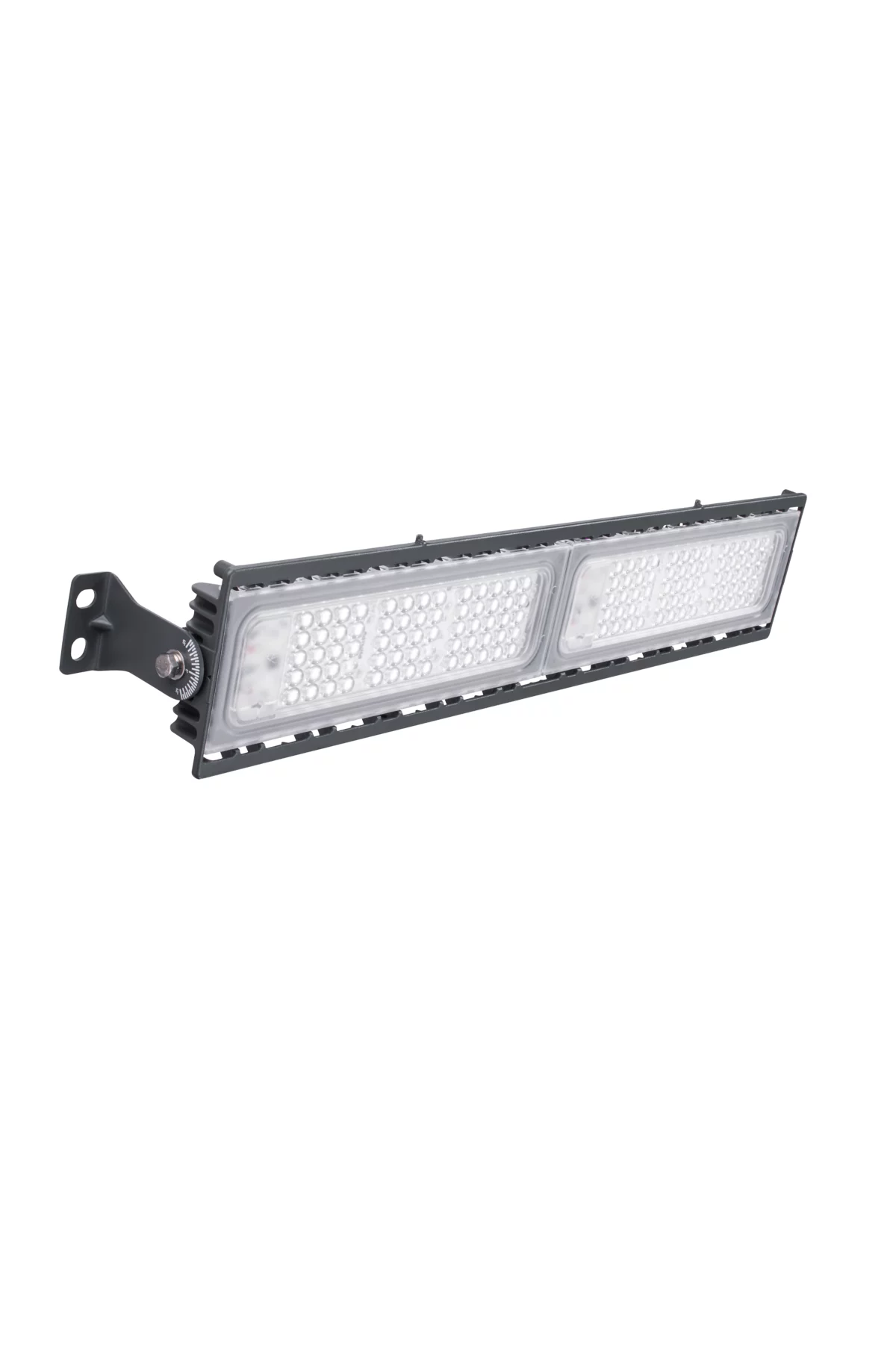

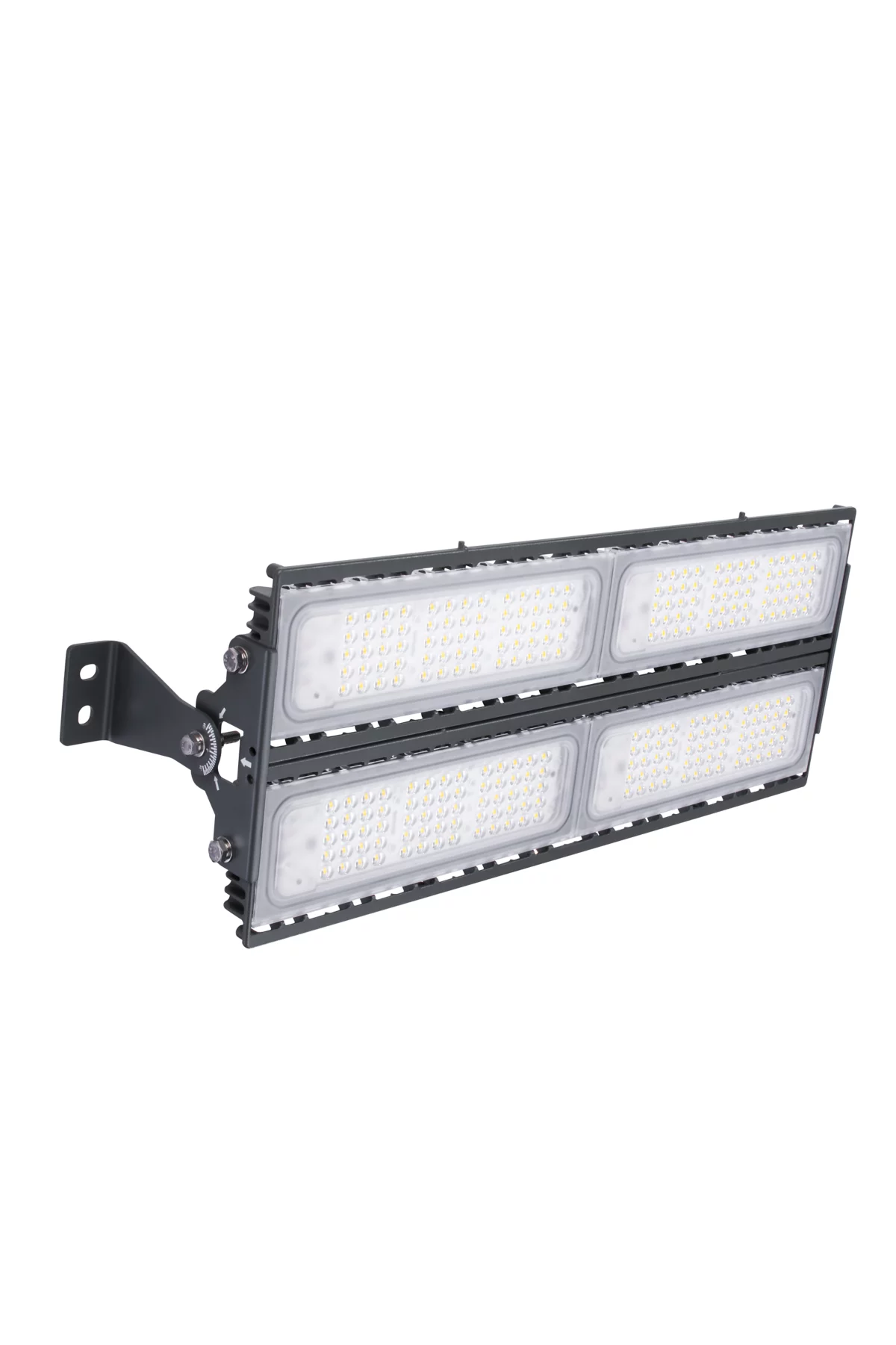

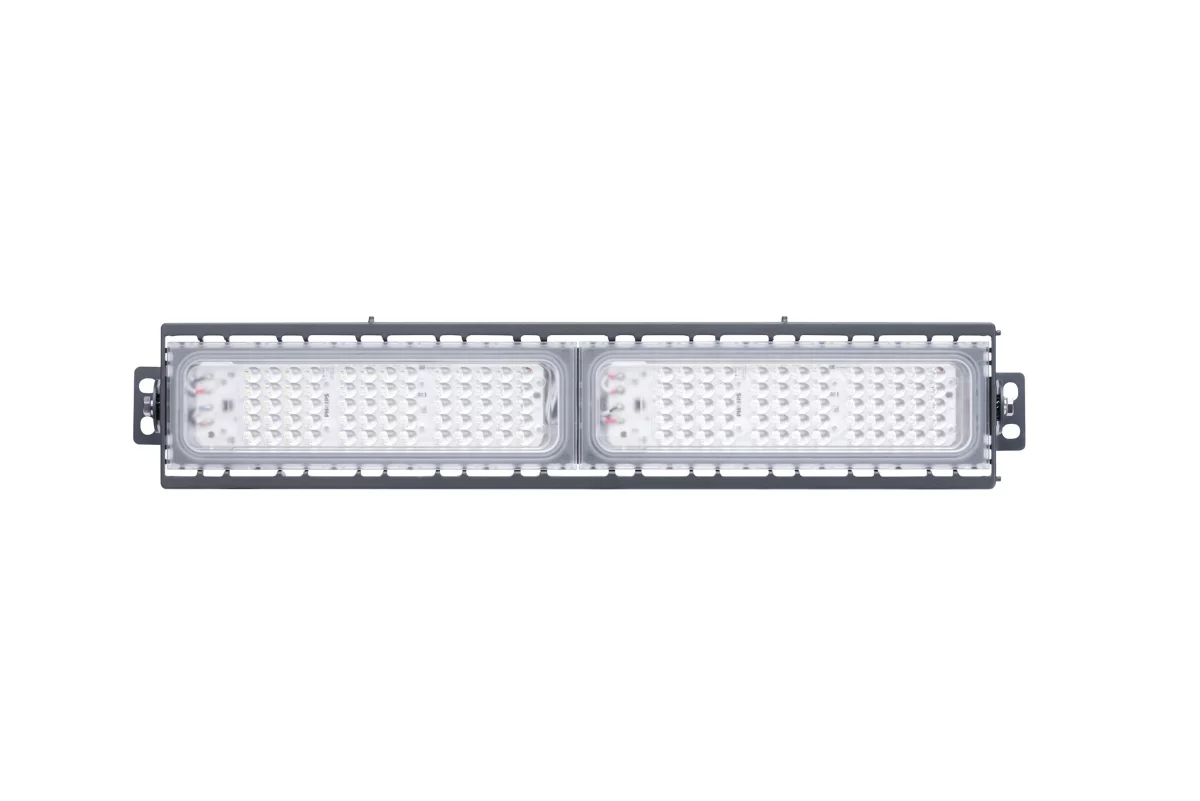

A lighting design that ensures safety and good visibility is a key element in the success of any tunnel project. Philips FlowBase G2 combines compact design, reliability, and affordability in one complete package to bring the perfect lighting solution for any tunnel application.
