Public spacesUrban

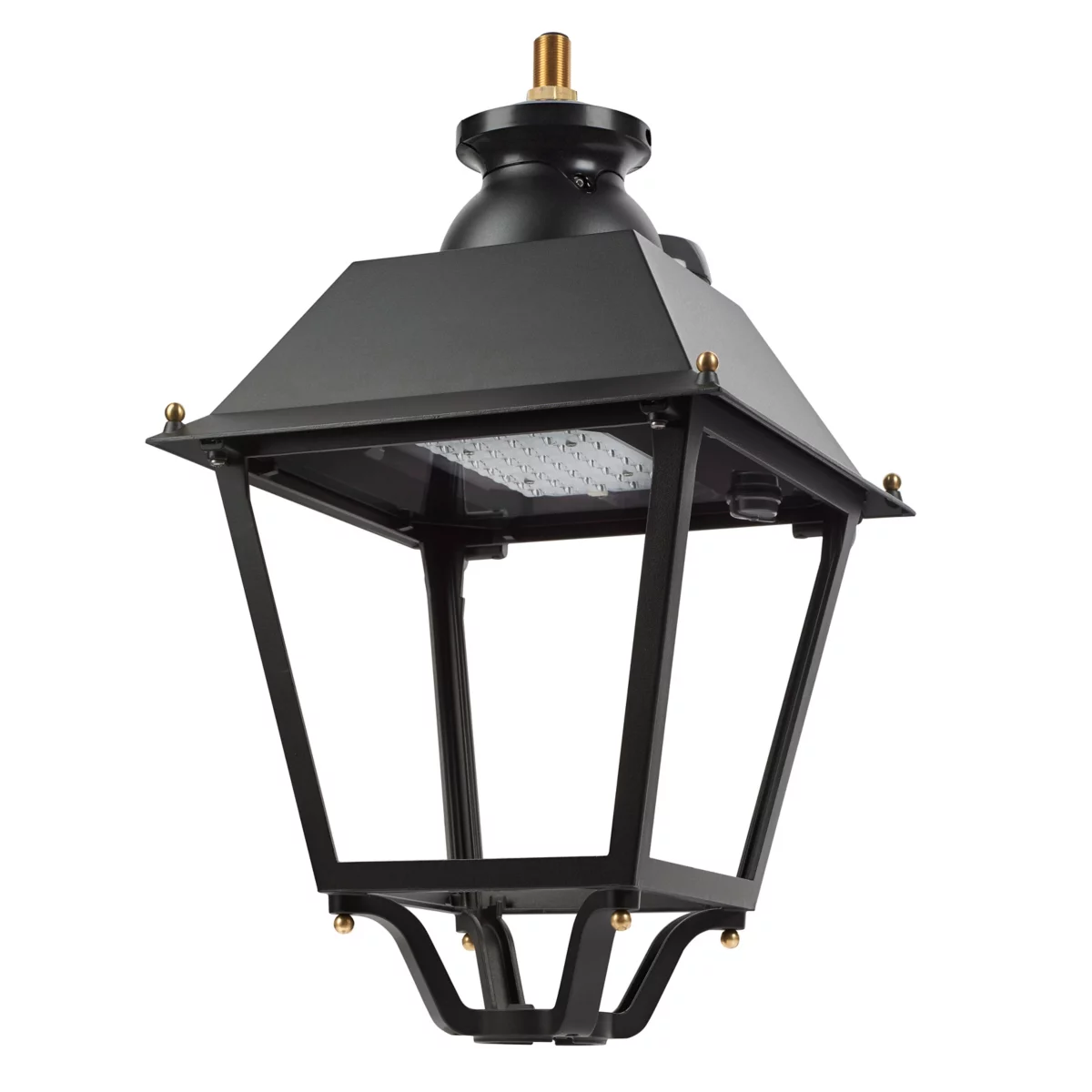

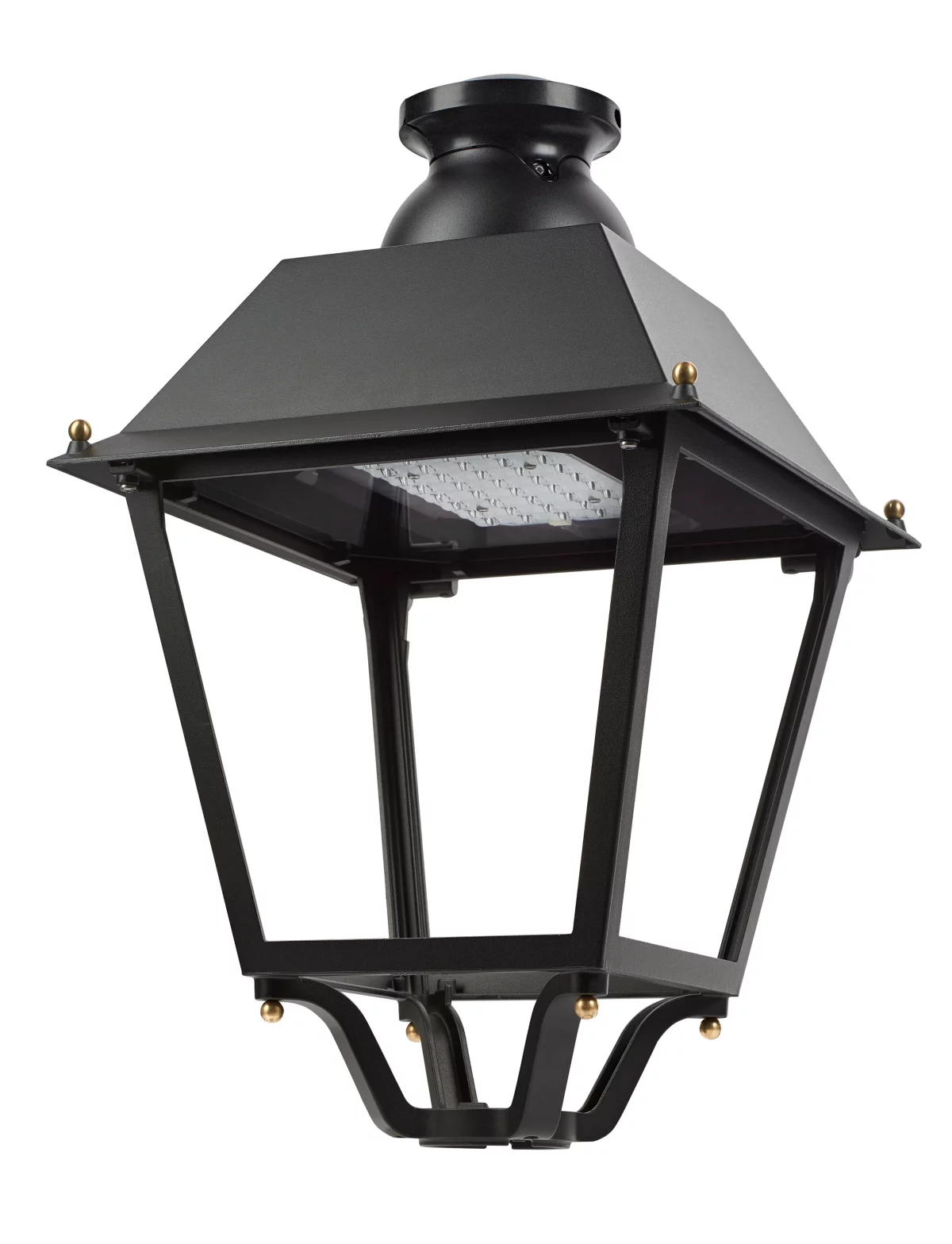

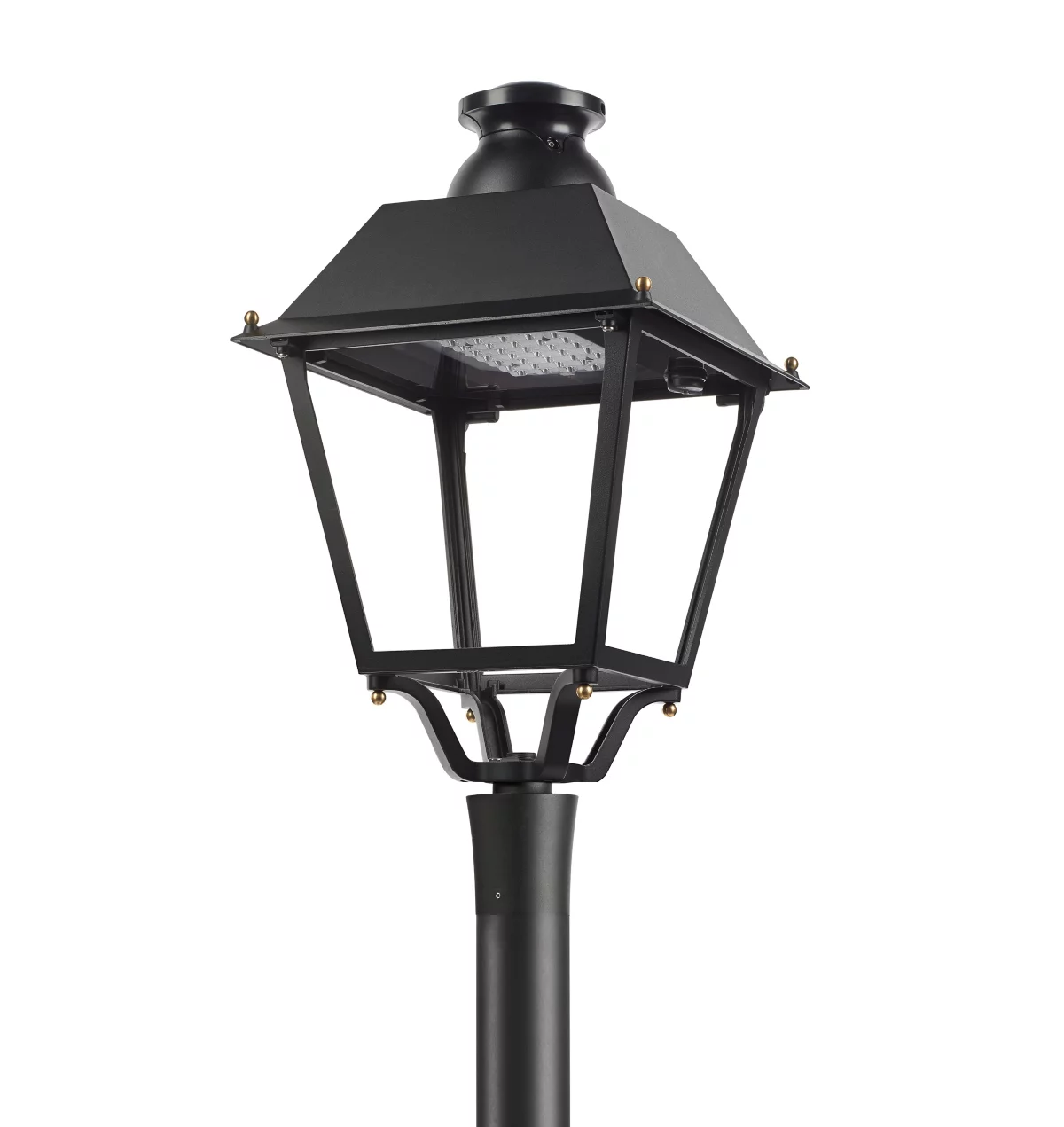

Jargeau LED gen3
BDP651 / BSP651
Jargeau LED gen3 combines the iconic character of the first four-sided street lamps of the 19th century with the technical performance of 21st-century luminaires
List the order codes — we prepare a quotation and check availability. · 17 order codes
Family specifications
Ranges across every order code of the family. The exact values of a specific order code are in the table below: the «Specifications» button in its row.
Light technical
Luminous flux (lm)
2,400–3,808 lm
Efficacy (lm/W)
79–97 lm/W
CCT (K)
3000
Color rendering
80-89
Light distribution
Distribution symmetrical 50 / Distribution medium 50
Post-top for diameter 60 mm / Suspension set simple, standard / -
Housing material
Aluminum
Color of Housing
Black
IP rating
IP66
IK rating
IK09
Length (mm)
400 mm
Width (mm)
400 mm
Height (mm)
650–753 mm
Jargeau LED gen3 combines the iconic character of the first four-sided street lamps of the 19th century with the technical performance of 21st-century luminaires. Thanks to the energy-efficient LEDGINE-O engine, and wide range of high performance, application-tailored optics, Jargeau LED gen3 delivers the right amount light in the right direction on roads and streets, as well as offering excellent energy savings. Designed for installation at heights of four to six meters, this street lantern is well suited to urban landscapes and is ideal for illuminating city centers, historical areas, old villages, streets, alleys, squares and parks. Jargeau LED gen3 is also future ready with a choice of one or two Signify System Ready (SR) sockets that enable the luminaire to be paired with both standalone and advanced control and lighting software applications such as Interact from Signify. This urban lighting solution can also be equipped with our dedicated light recipe that preserves dark skies. In addition, every Jargeau LED gen3 luminaire is uniquely identifiable, thanks to the Signify Service tag app. By simply scanning a QR code, placed inside the door of the mast or directly on the luminaire, you can instantly access the configuration of the luminaire. This makes maintenance and programing operations faster and easier, and enables you to create a digital library of lighting assets and spare parts.
Features
Historical shape
Large choice of different beams, internal louvers to minimize glare
Variety of mounting options: luminaire can be combined with different columns, brackets and multiple-arm brackets
Benefits
Iconic luminaire for contemporary and historical environments
Covers a wide range of applications for roads and streets with different geometries
Future-proof thanks to SR socket compatible with all standard and advanced lighting controls
Service tag for easy installation and maintenance
Applications
Main urban roads and streets, side and residential roads and streets
City centers and historical areas
Cycle and pedestrian paths, squares, parks and playgrounds
