Public spacesUrban

TownGuide Performer

Name: Philips Lighting Uzbekistan
Address: Tashkent, Chilanzar district, Lutfiy MFY, Bogiston St. 10, Tashkent, UZ
Telephone: +998 90 945 1117
Price range: $$

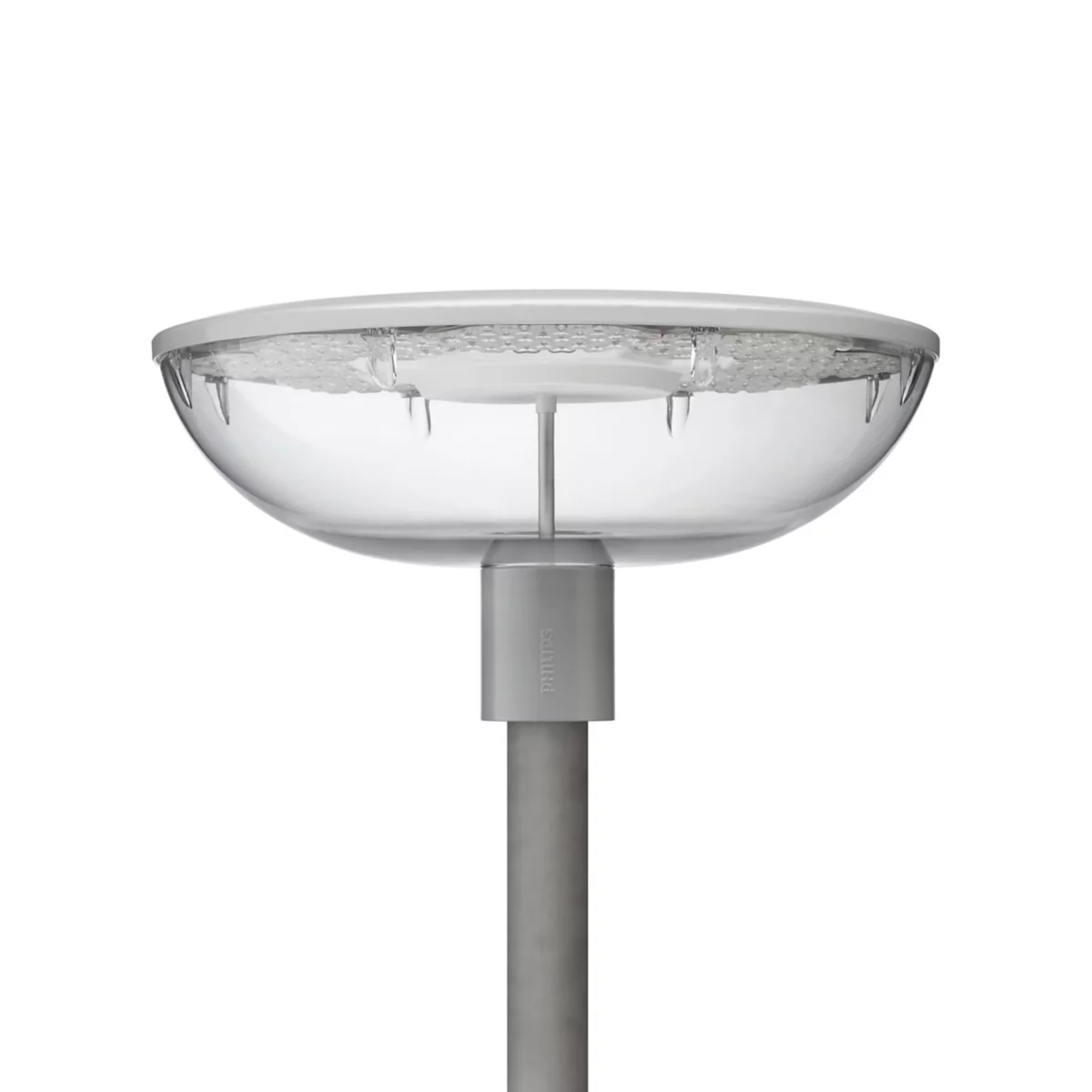

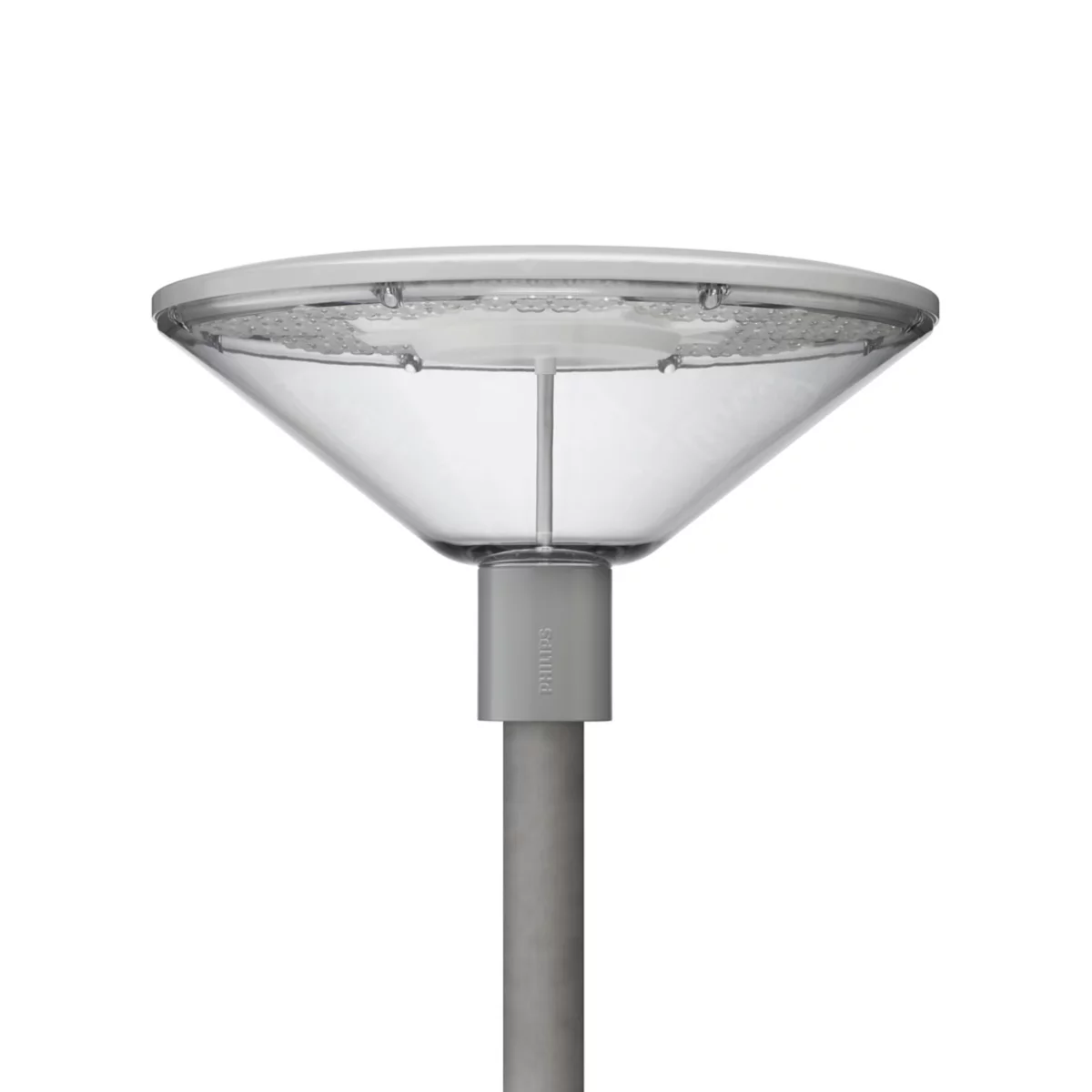

BDP100 / BDP101 / BDP102

The TownGuide Performer family consists of six recognizable, yet modern shapes: Flat Cone, Bowl, Classic Cone, Classic T, T and Tzero

Luminous flux (lm): 1,060–5,250 lm
Wattage (W): 11–92 W
Efficacy (lm/W): 59–122 lm/W
CCT (K): 3000 / 4000
IP rating: IP66
IK rating: IK10

Request a quote Family leaflet (PDF)

List the order codes — we prepare a quotation and check availability. · 68 order codes

The TownGuide Performer family consists of six recognizable, yet modern shapes: Flat Cone, Bowl, Classic Cone, Classic T, T and Tzero. Each luminaire has the option of a clear (PCC), translucent (PCTR) or frosted (PCF) bowl (except Tzero, which is only available with a clear bowl). With an extensive range of lumen packages, neutral white or warm white LED lights sources, and a range of dedicated optics for lower mounting heights, it’s easy to select the version that best suits the specific requirements of your project. All this combined with a long life expectancy of 100,000 operating hours. In addition, TownGuide Performer has a variety of control system options that can make this luminaire an integral part of smart energy-reduction programs. This includes LumiStep, DynaDimmer, and LineSwitch stand-alone dim control, and Coded Mains group control, right up to seamless remote connectivity with Interact lighting management software. Installation is easy. Thanks to the bayonet whistle connector with integrated gland located in the spigot, there’s no need to open the luminaire for installation. The Signify Service tag app offers direct access to all relevant data, ensuring maintenance is easy too. We have made every effort to make the Total Cost of Ownership (TCO) of the luminaire as attractive as possible. And as TownGuide Performer is a dedicated LED luminaire, compatible with a variety of control systems, there are significant energy and maintenance cost savings compared with conventional lighting.

Features

Six designs that blend in with, and enhance, their surroundings
New installations or one-to-one replacements
Dedicated lumen packages (1,200 to 12,000 lm)
3 bowl finishes: clear (highest performance), frosted (smooth atmosphere), translucent (enhanced visual comfort)
5-year standard warranty, extended warranties or lifecycle services available
Service tag for easy installation and maintenance.

Benefits

Choice of LED light sources, light colors (2700K, 3000K, 4000K) and optics
Significant energy and carbon savings compared to HPL mercury, SON-T and PL-L compact fluorescent lamps (up to 80% with CLO and/or dimming options)
Minimum Total Cost of Ownership
Long lifetime: 100,000 hours from L80 up to L98 (depending on configuration and light color)
Easy installation: no need to open luminaire with bayonet whistle connector

Applications

Residential areas: residential streets, cycle paths and footpaths, roundabouts, squares, parks and playgrounds, parking areas
City centers: side streets, squares, parks and playgrounds, cycle paths and footpaths, parking areas, roundabouts, shopping and pedestrian areas
Area and Transportation: industrial areas, parking areas, petrol stations, airports, harbors, public transport areas
Sports: parking areas, connecting footpaths

Documentation

Versions and order codes

Every version of the family from the official catalogue. Click PDF to download the datasheet of a specific order code.

Order code	Name	Luminous flux	Wattage	CCT	IP	Optic	PDF
910500991009	BDP100 LED30/740 DN PCC SI CLO-LS-6 76P TownGuide Performer, Urban road & street light, 19.6 W, 2291 lm, 4000 K, CRI70, Distribution narrow, Safety class I, IP66, SRG6-6	2,291 lm	19.6 W	4000	IP66	Distribution narrow	PDF
910500991010	BDP100 LED40/830 II DM PCC SI CLO-LS-6 6 TownGuide Performer, Urban road & street light, 32.5 W, 2888 lm, 3000 K, CRI80, Distribution medium, Safety class II, IP66, SRG6-6	2,888 lm	32.5 W	3000	IP66	Distribution medium	PDF
910500991014	BDP101 LED60/830 II DM PCC SI CLO-DDF2 6 TownGuide Performer, Urban road & street light, 46.5 W, 4424 lm, 3000 K, CRI80, Programmable (via DALI or NFC) stand-alone dimming, Distribution medium, Safety class II, IP66, SRG6-6	4,424 lm	46.5 W	3000	IP66	Distribution medium	PDF
910500991015	BDP101 LED60/830 II DS PCF SI CLO-DDF2 6 TownGuide Performer, Urban road & street light, 40 W, 2300 lm, 3000 K, CRI80, Programmable (via DALI or NFC) stand-alone dimming, Distribution symmetrical, Safety class II, IP66, SRG6-6	2,300 lm	40 W	3000	IP66	Distribution symmetrical	PDF
910500991021	BDP102 LED40/830 II DW PCC SI CLO-DDF1 6 TownGuide Performer, Urban road & street light, 32.5 W, 3116 lm, 3000 K, CRI80, Programmable (via DALI or NFC) stand-alone dimming, Distribution wide, Safety class II, IP66, SRG6-6	3,116 lm	32.5 W	3000	IP66	Distribution wide	PDF
910500991023	BDP102 LED50/830 II DS PCF SI CLO-DDF1 6 TownGuide Performer, Urban road & street light, 32.5 W, 1900 lm, 3000 K, CRI80, Programmable (via DALI or NFC) stand-alone dimming, Distribution symmetrical, Safety class II, IP66, SRG6-6	1,900 lm	32.5 W	3000	IP66	Distribution symmetrical	PDF
910500991024	BDP104 LED30/740 II DM PCC SI CLO-LS-8 6 TownGuide Performer, Urban road & street light, 19.6 W, 2204 lm, 4000 K, CRI70, Distribution medium, Safety class II, IP66, SRG6-6	2,204 lm	19.6 W	4000	IP66	Distribution medium	PDF
910500991064	BDP100 LED60/740 II DS PCC SI LS-6 62P TownGuide Performer, Urban road & street light, 39 W, 4500 lm, 4000 K, CRI70, Distribution symmetrical, Safety class II, IP66, SRG6-6	4,500 lm	39 W	4000	IP66	Distribution symmetrical	PDF
910500991067	BDP100 LED60/740 II DS PCF SI LS-6 62P TownGuide Performer, Urban road & street light, 39 W, 3240 lm, 4000 K, CRI70, Distribution symmetrical, Safety class II, IP66, SRG6-6	3,240 lm	39 W	4000	IP66	Distribution symmetrical	PDF
910500991082	BDP102 LED60/740 II DW PCC SI LS-6 62P TownGuide Performer, Urban road & street light, 39 W, 4680 lm, 4000 K, CRI70, Distribution wide, Safety class II, IP66, SRG6-6	4,680 lm	39 W	4000	IP66	Distribution wide	PDF
910500991088	BDP102 LED60/740 II DS PCC SI LS-6 62P TownGuide Performer, Urban road & street light, 39 W, 4740 lm, 4000 K, CRI70, Distribution symmetrical, Safety class II, IP66, SRG6-6	4,740 lm	39 W	4000	IP66	Distribution symmetrical	PDF
910500991091	BDP102 LED60/740 II DS PCF SI LS-6 62P TownGuide Performer, Urban road & street light, 39 W, 3360 lm, 4000 K, CRI70, Distribution symmetrical, Safety class II, IP66, SRG6-6	3,360 lm	39 W	4000	IP66	Distribution symmetrical	PDF
910500991092	BDP102 LED40/830 II DW PCC SI LS-6 62P TownGuide Performer, Urban road & street light, 32.5 W, 3160 lm, 3000 K, CRI80, Distribution wide, Safety class II, IP66, SRG6-6	3,160 lm	32.5 W	3000	IP66	Distribution wide	PDF
910500991098	BDP102 LED40/830 II DS PCC SI LS-6 62P TownGuide Performer, Urban road & street light, 32.5 W, 3280 lm, 3000 K, CRI80, Distribution symmetrical, Safety class II, IP66, SRG6-6	3,280 lm	32.5 W	3000	IP66	Distribution symmetrical	PDF
910500991101	BDP102 LED60/830 II DS PCC SI LS-6 62P TownGuide Performer, Urban road & street light, 47 W, 4740 lm, 3000 K, CRI80, Distribution symmetrical, Safety class II, IP66, SRG6-6	4,740 lm	47 W	3000	IP66	Distribution symmetrical	PDF
910500991104	BDP102 LED60/830 II DS PCF SI LS-6 62P TownGuide Performer, Urban road & street light, 47 W, 3360 lm, 3000 K, CRI80, Distribution symmetrical, Safety class II, IP66, SRG6-6	3,360 lm	47 W	3000	IP66	Distribution symmetrical	PDF
910500991112	BDP100 LED20/830 DW PCF SI CLO 62P TownGuide Performer, Urban road & street light, 15.8 W, 1160 lm, 3000 K, CRI80, Distribution wide, Safety class I, IP66, SRG4-4	1,160 lm	15.8 W	3000	IP66	Distribution wide	PDF
910500991115	BDP100 LED50/830 DW PCF SI CLO 62P TownGuide Performer, Urban road & street light, 40 W, 2576 lm, 3000 K, CRI80, Distribution wide, Safety class I, IP66, SRG6-6	2,576 lm	40 W	3000	IP66	Distribution wide	PDF
910500991117	BDP100 LED100/830 DW PCF SI CLO 62P TownGuide Performer, Urban road & street light, 74 W, 4240 lm, 3000 K, CRI80, Distribution wide, Safety class I, IP66, SRG6-6	4,240 lm	74 W	3000	IP66	Distribution wide	PDF
910500991128	BDP102 LED20/830 DW PCF SI CLO 62P TownGuide Performer, Urban road & street light, 15.8 W, 1200 lm, 3000 K, CRI80, Distribution wide, Safety class I, IP66, SRG6-6	1,200 lm	15.8 W	3000	IP66	Distribution wide	PDF
910500991129	BDP102 LED30/830 DW PCF SI CLO 62P TownGuide Performer, Urban road & street light, 23.5 W, 1740 lm, 3000 K, CRI80, Distribution wide, Safety class I, IP66, SRG6-6	1,740 lm	23.5 W	3000	IP66	Distribution wide	PDF
910500991130	BDP102 LED35/830 DW PCF SI CLO 62P TownGuide Performer, Urban road & street light, 27 W, 1947 lm, 3000 K, CRI80, Distribution wide, Safety class I, IP66, SRG6-6	1,947 lm	27 W	3000	IP66	Distribution wide	PDF
910500991131	BDP102 LED50/830 DW PCF SI CLO 62P TownGuide Performer, Urban road & street light, 40 W, 2714 lm, 3000 K, CRI80, Distribution wide, Safety class I, IP66, SRG6-6	2,714 lm	40 W	3000	IP66	Distribution wide	PDF
910500991132	BDP102 LED70/830 DW PCF SI CLO 62P TownGuide Performer, Urban road & street light, 54 W, 3584 lm, 3000 K, CRI80, Distribution wide, Safety class I, IP66, SRG6-6	3,584 lm	54 W	3000	IP66	Distribution wide	PDF
910500991136	BDP103 LED20/830 DW PCF SI CLO 62P TownGuide Performer, Urban road & street light, 15.8 W, 1060 lm, 3000 K, CRI80, Distribution wide, Safety class I, IP66, SRG6-6	1,060 lm	15.8 W	3000	IP66	Distribution wide	PDF
910500991138	BDP103 LED35/830 DW PCF SI CLO 62P TownGuide Performer, Urban road & street light, 27 W, 1716 lm, 3000 K, CRI80, Distribution wide, Safety class I, IP66, SRG6-6	1,716 lm	27 W	3000	IP66	Distribution wide	PDF
910500991139	BDP103 LED50/830 DW PCF SI CLO 62P TownGuide Performer, Urban road & street light, 40 W, 2346 lm, 3000 K, CRI80, Distribution wide, Safety class I, IP66, SRG6-6	2,346 lm	40 W	3000	IP66	Distribution wide	PDF
910500991142	BDP103 LED120/830 DW PCF SI CLO 62P TownGuide Performer, Urban road & street light, 92 W, 4800 lm, 3000 K, CRI80, Distribution wide, Safety class I, IP66, SRG6-6	4,800 lm	92 W	3000	IP66	Distribution wide	PDF
910500991147	BDP104 LED50/830 DW PCF SI CLO 62P TownGuide Performer, Urban road & street light, 40 W, 2208 lm, 3000 K, CRI80, Distribution wide, Safety class I, IP66, SRG6-6	2,208 lm	40 W	3000	IP66	Distribution wide	PDF
910500991211	BDP102 LED50/830 DM PCC GR MSP 62P TownGuide Performer, Urban road & street light, 41 W, 3900 lm, 3000 K, CRI80, Distribution medium, Safety class I, IP66, MSP, SRG6-6	3,900 lm	41 W	3000	IP66	Distribution medium	PDF
910500991222	BDP102 LED35/830 II DW PCF SI LS-8 62P TownGuide Performer, Urban road & street light, 27.5 W, 1995 lm, 3000 K, CRI80, Distribution wide, Safety class II, IP66, SRG6-6	1,995 lm	27.5 W	3000	IP66	Distribution wide	PDF
910500991224	BDP102 LED60/830 II DW PCF SI LS-8 62P TownGuide Performer, Urban road & street light, 47 W, 3300 lm, 3000 K, CRI80, Distribution wide, Safety class II, IP66, SRG6-6	3,300 lm	47 W	3000	IP66	Distribution wide	PDF
910500991230	BDP101 LED40/830 II DM PCF SI 6 62P TownGuide Performer, Urban road & street light, 32.5 W, 2320 lm, 3000 K, CRI80, Distribution medium, Safety class II, IP66, SRG6-6	2,320 lm	32.5 W	3000	IP66	Distribution medium	PDF
910500991231	BDP101 LED40/740 II DM PCF SI 6 62P TownGuide Performer, Urban road & street light, 27.5 W, 2320 lm, 4000 K, CRI70, Distribution medium, Safety class II, IP66, SRG6-6	2,320 lm	27.5 W	4000	IP66	Distribution medium	PDF
910500991232	BDP102 LED40/830 II DM PCF SI 6 62P TownGuide Performer, Urban road & street light, 32.5 W, 2240 lm, 3000 K, CRI80, Distribution medium, Safety class II, IP66, SRG6-6	2,240 lm	32.5 W	3000	IP66	Distribution medium	PDF
910500991233	BDP102 LED40/740 II DM PCF SI 6 62P TownGuide Performer, Urban road & street light, 27.5 W, 2240 lm, 4000 K, CRI70, Distribution medium, Safety class II, IP66, SRG6-6	2,240 lm	27.5 W	4000	IP66	Distribution medium	PDF
910925452181	BDP100 LED40/740 DS PCC GR DDF27 62P TownGuide Performer, Urban road & street light, 27.5 W, 3080 lm, 4000 K, CRI70, Programmable (via DALI or NFC) stand-alone dimming, Distribution symmetrical, Safety class I, IP66, SRG6-6	3,080 lm	27.5 W	4000	IP66	Distribution symmetrical	PDF
910925863295	BDP100 LED70/740 DS PCC GR D9 62P TownGuide Performer, Urban road & street light, 45.5 W, 5250 lm, 4000 K, CRI70, DALI, Distribution symmetrical, Safety class I, IP66, SRG6-6	5,250 lm	45.5 W	4000	IP66	Distribution symmetrical	PDF
910925863297	BDP102 LED70/740 DRW PCC GR D9 62P TownGuide Performer, Urban road & street light, 45.5 W, 4900 lm, 4000 K, CRI70, DALI, Distribution residential wide, Safety class I, IP66, SRG6-6	4,900 lm	45.5 W	4000	IP66	Distribution residential wide	PDF
910925863302	BDP104 LED70/740 DRW PCC GR D9 62P TownGuide Performer, Urban road & street light, 45.5 W, 4620 lm, 4000 K, CRI70, DALI, Distribution residential wide, Safety class I, IP66, SRG6-6	4,620 lm	45.5 W	4000	IP66	Distribution residential wide	PDF

910500991009
BDP100 LED30/740 DN PCC SI CLO-LS-6 76P
PDF
Luminous flux
2,291 lm
Wattage
19.6 W
CCT
4000
IP
IP66
910500991010
BDP100 LED40/830 II DM PCC SI CLO-LS-6 6
PDF
Luminous flux
2,888 lm
Wattage
32.5 W
CCT
3000
IP
IP66
910500991014
BDP101 LED60/830 II DM PCC SI CLO-DDF2 6
PDF
Luminous flux
4,424 lm
Wattage
46.5 W
CCT
3000
IP
IP66
910500991015
BDP101 LED60/830 II DS PCF SI CLO-DDF2 6
PDF
Luminous flux
2,300 lm
Wattage
40 W
CCT
3000
IP
IP66
910500991021
BDP102 LED40/830 II DW PCC SI CLO-DDF1 6
PDF
Luminous flux
3,116 lm
Wattage
32.5 W
CCT
3000
IP
IP66
910500991023
BDP102 LED50/830 II DS PCF SI CLO-DDF1 6
PDF
Luminous flux
1,900 lm
Wattage
32.5 W
CCT
3000
IP
IP66
910500991024
BDP104 LED30/740 II DM PCC SI CLO-LS-8 6
PDF
Luminous flux
2,204 lm
Wattage
19.6 W
CCT
4000
IP
IP66
910500991064
BDP100 LED60/740 II DS PCC SI LS-6 62P
PDF
Luminous flux
4,500 lm
Wattage
39 W
CCT
4000
IP
IP66
910500991067
BDP100 LED60/740 II DS PCF SI LS-6 62P
PDF
Luminous flux
3,240 lm
Wattage
39 W
CCT
4000
IP
IP66
910500991082
BDP102 LED60/740 II DW PCC SI LS-6 62P
PDF
Luminous flux
4,680 lm
Wattage
39 W
CCT
4000
IP
IP66
910500991088
BDP102 LED60/740 II DS PCC SI LS-6 62P
PDF
Luminous flux
4,740 lm
Wattage
39 W
CCT
4000
IP
IP66
910500991091
BDP102 LED60/740 II DS PCF SI LS-6 62P
PDF
Luminous flux
3,360 lm
Wattage
39 W
CCT
4000
IP
IP66
910500991092
BDP102 LED40/830 II DW PCC SI LS-6 62P
PDF
Luminous flux
3,160 lm
Wattage
32.5 W
CCT
3000
IP
IP66
910500991098
BDP102 LED40/830 II DS PCC SI LS-6 62P
PDF
Luminous flux
3,280 lm
Wattage
32.5 W
CCT
3000
IP
IP66
910500991101
BDP102 LED60/830 II DS PCC SI LS-6 62P
PDF
Luminous flux
4,740 lm
Wattage
47 W
CCT
3000
IP
IP66
910500991104
BDP102 LED60/830 II DS PCF SI LS-6 62P
PDF
Luminous flux
3,360 lm
Wattage
47 W
CCT
3000
IP
IP66
910500991112
BDP100 LED20/830 DW PCF SI CLO 62P
PDF
Luminous flux
1,160 lm
Wattage
15.8 W
CCT
3000
IP
IP66
910500991115
BDP100 LED50/830 DW PCF SI CLO 62P
PDF
Luminous flux
2,576 lm
Wattage
40 W
CCT
3000
IP
IP66
910500991117
BDP100 LED100/830 DW PCF SI CLO 62P
PDF
Luminous flux
4,240 lm
Wattage
74 W
CCT
3000
IP
IP66
910500991128
BDP102 LED20/830 DW PCF SI CLO 62P
PDF
Luminous flux
1,200 lm
Wattage
15.8 W
CCT
3000
IP
IP66
910500991129
BDP102 LED30/830 DW PCF SI CLO 62P
PDF
Luminous flux
1,740 lm
Wattage
23.5 W
CCT
3000
IP
IP66
910500991130
BDP102 LED35/830 DW PCF SI CLO 62P
PDF
Luminous flux
1,947 lm
Wattage
27 W
CCT
3000
IP
IP66
910500991131
BDP102 LED50/830 DW PCF SI CLO 62P
PDF
Luminous flux
2,714 lm
Wattage
40 W
CCT
3000
IP
IP66
910500991132
BDP102 LED70/830 DW PCF SI CLO 62P
PDF
Luminous flux
3,584 lm
Wattage
54 W
CCT
3000
IP
IP66
910500991136
BDP103 LED20/830 DW PCF SI CLO 62P
PDF
Luminous flux
1,060 lm
Wattage
15.8 W
CCT
3000
IP
IP66
910500991138
BDP103 LED35/830 DW PCF SI CLO 62P
PDF
Luminous flux
1,716 lm
Wattage
27 W
CCT
3000
IP
IP66
910500991139
BDP103 LED50/830 DW PCF SI CLO 62P
PDF
Luminous flux
2,346 lm
Wattage
40 W
CCT
3000
IP
IP66
910500991142
BDP103 LED120/830 DW PCF SI CLO 62P
PDF
Luminous flux
4,800 lm
Wattage
92 W
CCT
3000
IP
IP66
910500991147
BDP104 LED50/830 DW PCF SI CLO 62P
PDF
Luminous flux
2,208 lm
Wattage
40 W
CCT
3000
IP
IP66
910500991211
BDP102 LED50/830 DM PCC GR MSP 62P
PDF
Luminous flux
3,900 lm
Wattage
41 W
CCT
3000
IP
IP66
910500991222
BDP102 LED35/830 II DW PCF SI LS-8 62P
PDF
Luminous flux
1,995 lm
Wattage
27.5 W
CCT
3000
IP
IP66
910500991224
BDP102 LED60/830 II DW PCF SI LS-8 62P
PDF
Luminous flux
3,300 lm
Wattage
47 W
CCT
3000
IP
IP66
910500991230
BDP101 LED40/830 II DM PCF SI 6 62P
PDF
Luminous flux
2,320 lm
Wattage
32.5 W
CCT
3000
IP
IP66
910500991231
BDP101 LED40/740 II DM PCF SI 6 62P
PDF
Luminous flux
2,320 lm
Wattage
27.5 W
CCT
4000
IP
IP66
910500991232
BDP102 LED40/830 II DM PCF SI 6 62P
PDF
Luminous flux
2,240 lm
Wattage
32.5 W
CCT
3000
IP
IP66
910500991233
BDP102 LED40/740 II DM PCF SI 6 62P
PDF
Luminous flux
2,240 lm
Wattage
27.5 W
CCT
4000
IP
IP66
910925452181
BDP100 LED40/740 DS PCC GR DDF27 62P
PDF
Luminous flux
3,080 lm
Wattage
27.5 W
CCT
4000
IP
IP66
910925863295
BDP100 LED70/740 DS PCC GR D9 62P
PDF
Luminous flux
5,250 lm
Wattage
45.5 W
CCT
4000
IP
IP66
910925863297
BDP102 LED70/740 DRW PCC GR D9 62P
PDF
Luminous flux
4,900 lm
Wattage
45.5 W
CCT
4000
IP
IP66
910925863302
BDP104 LED70/740 DRW PCC GR D9 62P
PDF
Luminous flux
4,620 lm
Wattage
45.5 W
CCT
4000
IP
IP66

Showing 40 of 68

Other families in this category

Back to category →

Metronomis LED Fluid

BDS670

Metronomis LED is the first post-top luminaire range in the world to offer a palette of lighting effects to give projects a unique contextual or aesthetic touch

Power: 32–64 W
Luminous flux: 3,306–6,800 lm
Protection: IP66

Metronomis LED Sharp

BDS660

Metronomis LED is the first post-top luminaire range in the world to offer a palette of lighting effects to give projects a unique contextual or aesthetic touch

Power: 13–51 W
Luminous flux: 1,700–6,800 lm
Protection: IP66

Metronomis LED Torch

BDS650 / BDS651

Metronomis LED is the first post-top luminaire range in the world to offer a palette of lighting effects to give projects a unique contextual or aesthetic touch

Power: 12.8–32 W
Luminous flux: 1,638–4,000 lm
Protection: IP66

Metronomis 1 LED

BDS570 / BDS592

Our family of five, highly distinctive Metronomis 1 LED luminaires is now available in LED

Power: 45.5–53 W
Luminous flux: 5,160–5,390 lm
Protection: IP65

Let’s discuss your project

Engineering-first approach: we start with your site’s requirements, not with equipment. Leave your contacts — we’ll prepare a lighting calculation.

Official Philips (Signify) partner since 2017
Lighting calculation for your site’s requirements
Turnkey supply, installation and support

+998 90 945 1117

Or message us
