Данные и документация — из официального каталога Signify (Philips).

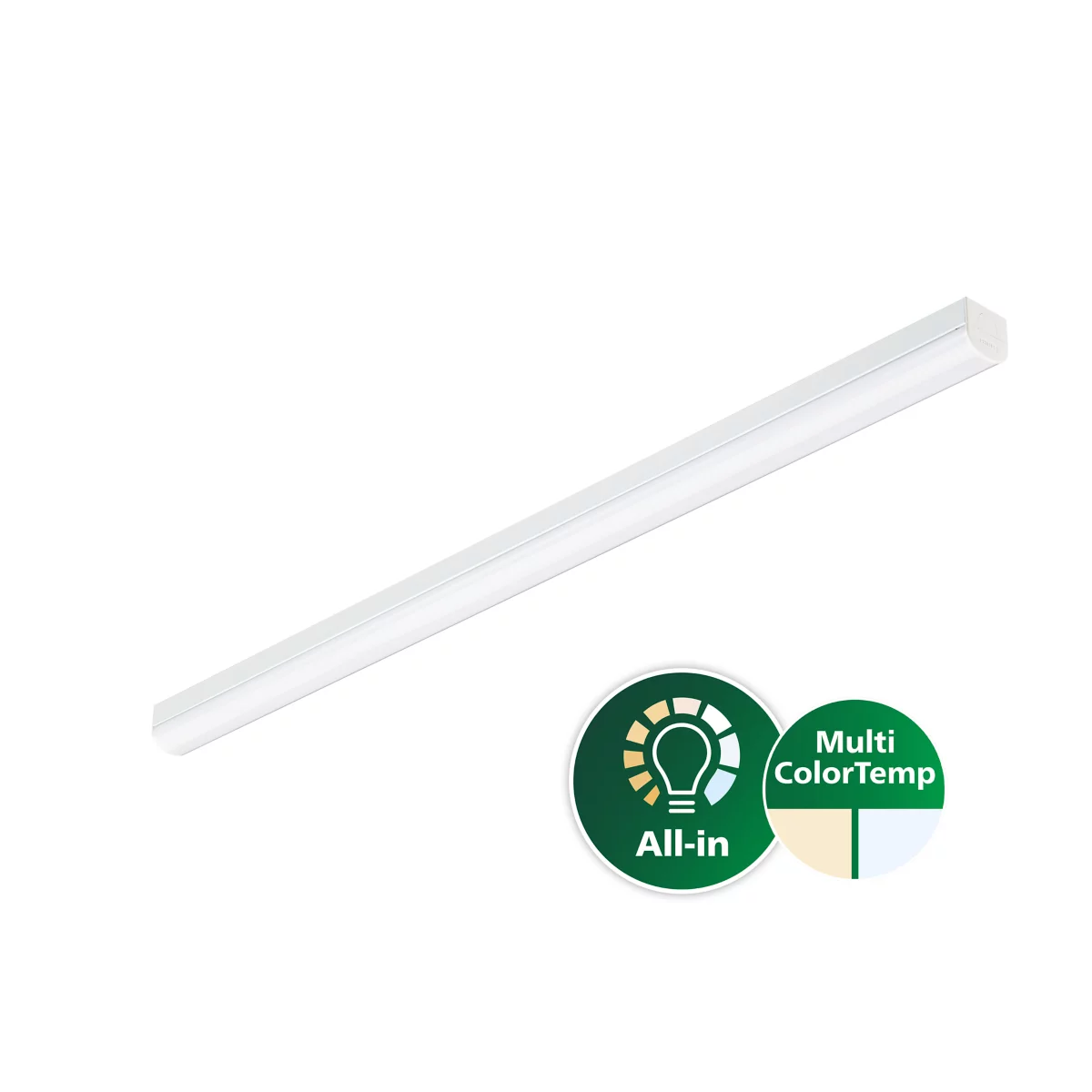

BN126C
CoreLine Batten, 29.5 В, L1200 mm
Укажите артикулы — подготовим коммерческое предложение и проверим наличие. · 25 артикулов
Описание доступно на английском — русская версия готовится.
The CoreLine Batten delivers on the CoreLine promise of innovative, easy-to-use and high-quality luminaires. The efficient design makes installation quick and easy, enabling seamless light-line creation without additional accessories. CoreLine Batten provides universal light distribution, supporting homogeneous illuminance and visual comfort. Interact Ready luminaires with integrated wireless communications are also available, for use with Interact gateways, sensors and software.
Все варианты семейства из официального каталога. Нажмите PDF, чтобы скачать техническое описание конкретного артикула.
| Код заказа | Наименование | Световой поток | Мощность | Цветность | IP | Оптика | |
|---|---|---|---|---|---|---|---|
| 910505103371 | BN126C LED41S/840 PSU ELB3 L1200 CoreLine Batten, 39 W, L1200 mm, 4100 lm, 4000 K, Opal, IP20/40, TW1-ready, ELB3h | 4,100 лм | 39 Вт | 4000 | IP20/40 | Very wide beam angle 120° | |
| 910505103373 | BN126C LED52S/840 PSU ELB3 L1500 CoreLine Batten, 44 W, L1500 mm, 5200 lm, 4000 K, Opal, IP20/40, TW1-ready, ELB3h | 5,200 лм | 44 Вт | 4000 | IP20 | Very wide beam angle 120° | |
| 910505103382 | BN126C LED80S/840 PSU ELB3 L1500 CoreLine Batten, 64 W, L1500 mm, 8000 lm, 4000 K, Opal, IP20/40, TW1-ready, ELB3h | 8,000 лм | 64 Вт | 4000 | IP20 | Very wide beam angle 120° | |
| 910505103402 | BN126C LED41S/840 PSD L1200 CoreLine Batten, 34 W, L1200 mm, 4100 lm, 4000 K, DALI, Opal, IP20/40, TW1-ready | 4,100 лм | 34 Вт | 4000 | IP20 | Very wide beam angle 120° | |
| 910505103403 | BN126C LED52S/840 PSD L1500 CoreLine Batten, 43 W, L1500 mm, 5200 lm, 4000 K, DALI, Opal, IP20/40, TW1-ready | 5,200 лм | 43 Вт | 4000 | IP20 | Very wide beam angle 120° | |
| 910505103404 | BN126C LED64S/840 PSD L1200 CoreLine Batten, 54 W, L1200 mm, 6400 lm, 4000 K, DALI, Opal, IP20/40, TW1-ready | 6,400 лм | 54 Вт | 4000 | IP20 | Very wide beam angle 120° | |
| 910505103405 | BN126C LED80S/840 PSD L1500 CoreLine Batten, 63 W, L1500 mm, 8000 lm, 4000 K, DALI, Opal, IP20/40, TW1-ready | 8,000 лм | 63 Вт | 4000 | IP20 | Very wide beam angle 120° | |

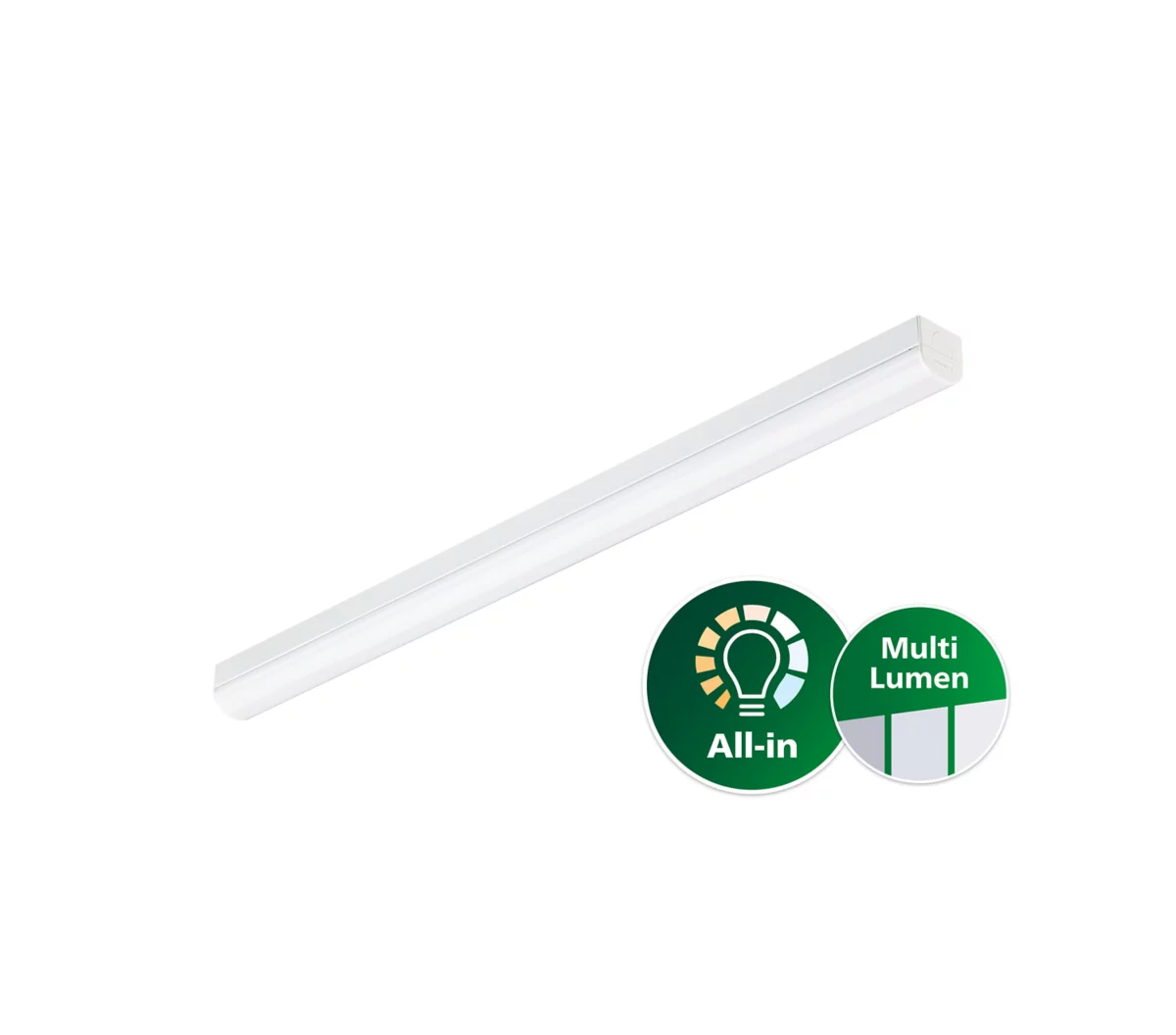

| 911401816685 | BN126C LED25_41_64S/840 PSU L1200 CoreLine Batten, 48 W, 19 W, L1200 mm, 2500 lm, 4100 lm, 6400 lm, 4000 K, Opal, IP20/40, TW1-ready | 2,500|4,100|6,400 лм | 48|19 Вт | 4000 | IP20/40 | Very wide beam angle 120° | |
| 911401816885 | BN126C LED35_52_80S/840 PSU L1500 CoreLine Batten, 59 W, 24.5 W, L1500 mm, 3500 lm, 5200 lm, 8000 lm, 4000 K, Opal, IP20/40, TW1-ready | 3,500|5,200|8,000 лм | 59|24.5 Вт | 4000 | IP20/40 | Very wide beam angle 120° | |
| 911401833784 | BN126C LED25S/840 PSU L1200 CoreLine Batten, 18 W, L1200 mm, 2500 lm, 4000 K, Opal, IP20/40, TW1-ready | 2,500 лм | 18 Вт | 4000 | IP20 | Very wide beam angle 120° | |
| 911401833984 | BN126C LED41S/840 PSU L1200 CoreLine Batten, 29.5 В, L1200 mm, 4100 лм, 4000 K, Опаловый, IP20/40, TW1-ready, EL-ready | 4,100 лм | 29.5 Вт | 4000 | IP20/40 | Very wide beam angle 120° | |
| 911401834084 | BN126C LED38S/830 PSU L1200 CoreLine Batten, 31 W, L1200 mm, 3800 lm, 3000 K, Opal, IP20/40, TW1-ready | 3,800 лм | 31 Вт | 3000 | IP20 | Very wide beam angle 120° | |
| 911401834184 | BN126C LED64S/840 PSU L1200 CoreLine Batten, 45.5 W, L1200 mm, 6400 lm, 4000 K, Opal, IP20/40, TW1-ready, EL-ready | 6,400 лм | 45.5 Вт | 4000 | IP20/40 | Very wide beam angle 120° | |
| 911401834384 | BN126C LED35S/840 PSU L1500 CoreLine Batten, 25.5 W, L1500 mm, 3500 lm, 4000 K, Opal, IP20/40, TW1-ready | 3,500 лм | 25.5 Вт | 4000 | IP20/40 | Very wide beam angle 120° | |
| 911401834584 | BN126C LED52S/840 PSU L1500 CoreLine Batten, 37 В, L1500 mm, 5200 лм, 4000 K, Опаловый, IP20/40, TW1-ready, EL-ready | 5,200 лм | 37 Вт | 4000 | IP20/40 | Very wide beam angle 120° | |
| 911401834784 | BN126C LED80S/840 PSU L1500 CoreLine Batten, 57 W, L1500 mm, 8000 lm, 4000 K, Opal, IP20/40, TW1-ready, EL-ready | 8,000 лм | 57 Вт | 4000 | IP20/40 | Very wide beam angle 120° | |
| 911401835184 | BN126C LED100S/840 PSU L1800 CoreLine Batten, 75 W, L1800 mm, 10000 lm, 4000 K, Opal, IP20/40, TW1-ready | 10,000 лм | 75 Вт | 4000 | IP20/40 | Very wide beam angle 120° | |
| 911401850087 | BN126C LED80S/830_40 WIA L1500 CoreLine Batten, All-in, 57 W, L1500 mm, 8000 lm, 3000 K, 4000 K, Wireless, Interact Ready, Opal, IP20/40, EL-ready | 8,000 лм | 57 Вт | 3000, 4000 | IP20/40 | Symmetrical | |
| 911401850187 | BN126C LED64S/830_40 WIA L1200 CoreLine Batten, All-in, 45.5 W, L1200 mm, 6400 lm, 3000 K, 4000 K, Wireless, Interact Ready, Opal, IP20/40, EL-ready | 6,400 лм | 45.5 Вт | 3000, 4000 | IP20/40 | Symmetrical | |
| 911401850287 | BN126C LED64S/830_40 PSD L1200 CoreLine Batten, All-in, 45.5 W, L1200 mm, 6400 lm, 3000 K, 4000 K, DALI, Opal, IP20/40, EL-ready | 6,400 лм | 45.5 Вт | 3000, 4000 | IP20/40 | Symmetrical | |
| 911401850387 | BN126C LED80S/830_40 PSD L1500 CoreLine Batten, All-in, 57 W, L1500 mm, 8000 lm, 3000 K, 4000 K, DALI, Opal, IP20/40, EL-ready | 8,000 лм | 57 Вт | 3000, 4000 | IP20/40 | Symmetrical | |
| 911401850487 | BN126C LED15S_24S/830_40 PSU L600 CoreLine Batten, All-in, 17 W, 10.8 W, L600 mm, 1500 lm, 2400 lm, 3000 K, 4000 K, Opal, IP20/40 | 1,500|2,400 лм | 17|10.8 Вт | 3000, 4000 | IP20/40 | Symmetrical | |
| 911401850587 | BN126C LED25S_41S/830_40 PSU L1200 CoreLine Batten, All-in, 29.5 W, 18 W, L1200 mm, 2500 lm, 4100 lm, 3000 K, 4000 K, Opal, IP20/40, EL-ready | 2,500|4,100 лм | 29.5|18 Вт | 3000, 4000 | IP20/40 | Symmetrical | |
| 911401850687 | BN126C LED35S_52S/830_40 PSU L1500 CoreLine Batten, All-in, 37 W, 25 W, L1500 mm, 3500 lm, 5200 lm, 3000 K, 4000 K, Opal, IP20/40, EL-ready | 3,500|5,200 лм | 37|25 Вт | 3000, 4000 | IP20/40 | Symmetrical | |
| 911401850787 | BN126C LED64S_100S/830_40 PSU L1800 CoreLine Batten, All-in, 71 W, 45.5 W, L1800 mm, 6400 lm, 10000 lm, 3000 K, 4000 K, Opal, IP20/40 | 6,400|10,000 лм | 71|45.5 Вт | 3000, 4000 | IP20/40 | Symmetrical |
910505103371
BN126C LED41S/840 PSU ELB3 L1200
910505103373
BN126C LED52S/840 PSU ELB3 L1500
910505103382
BN126C LED80S/840 PSU ELB3 L1500
910505103402
BN126C LED41S/840 PSD L1200
910505103403
BN126C LED52S/840 PSD L1500
910505103404
BN126C LED64S/840 PSD L1200
910505103405
BN126C LED80S/840 PSD L1500
911401816685
BN126C LED25_41_64S/840 PSU L1200
911401816885
BN126C LED35_52_80S/840 PSU L1500
911401833784
BN126C LED25S/840 PSU L1200
911401833984
BN126C LED41S/840 PSU L1200
911401834084
BN126C LED38S/830 PSU L1200
911401834184
BN126C LED64S/840 PSU L1200
911401834384
BN126C LED35S/840 PSU L1500
911401834584
BN126C LED52S/840 PSU L1500
911401834784
BN126C LED80S/840 PSU L1500
911401835184
BN126C LED100S/840 PSU L1800
911401850087
BN126C LED80S/830_40 WIA L1500
911401850187
BN126C LED64S/830_40 WIA L1200
911401850287
BN126C LED64S/830_40 PSD L1200
911401850387
BN126C LED80S/830_40 PSD L1500
911401850487
BN126C LED15S_24S/830_40 PSU L600
911401850587
BN126C LED25S_41S/830_40 PSU L1200
911401850687
BN126C LED35S_52S/830_40 PSU L1500
911401850787
BN126C LED64S_100S/830_40 PSU L1800
Инженерный подход: начинаем не с оборудования, а с анализа задач объекта. Оставьте контакты — проведём светотехнический расчёт.
