Family specifications
Ranges across every order code of the family. The exact values of a specific order code are in the table below: the «Specifications» button in its row.
Light technical
Luminous flux (lm)
1,700–3,400 lm
Efficacy (lm/W)
89–113 lm/W
CCT (K)
3000 / 4000
Color rendering
80-89
Light distribution
Very wide beam
UGR value
19
Electrical and controls
Wattage (W)
15–61 W
Dimming controls
DALI / Wireless
Connectivity
Interact Ready
Embedded control
Upgradable sensor slot with SC200 sensor
Emergency Lighting
DC operated central emergency lighting / Emergency lighting 3 hours duration Pro version
Mechanical and housing
Housing material
Steel
Color of Housing
Black
IP rating
IP20
IK rating
IK03
Length (mm)
575–1,195 mm
Width (mm)
39 mm
Height (mm)
41 mm

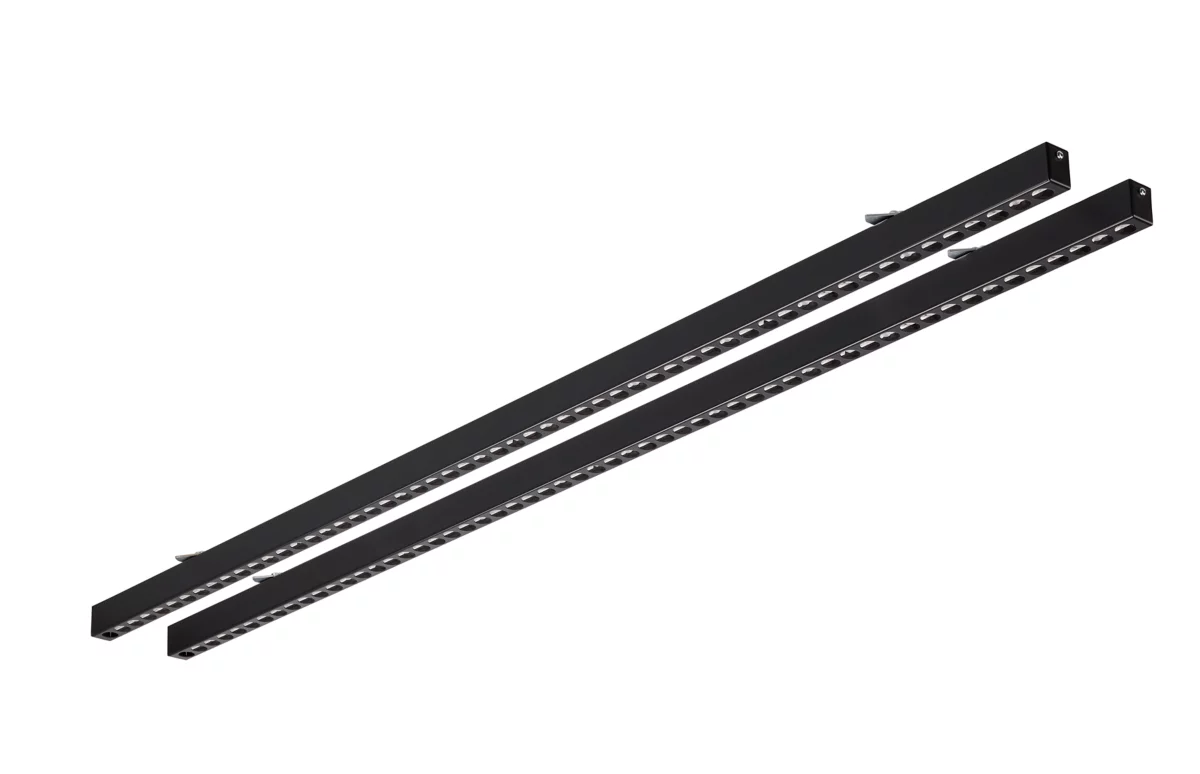

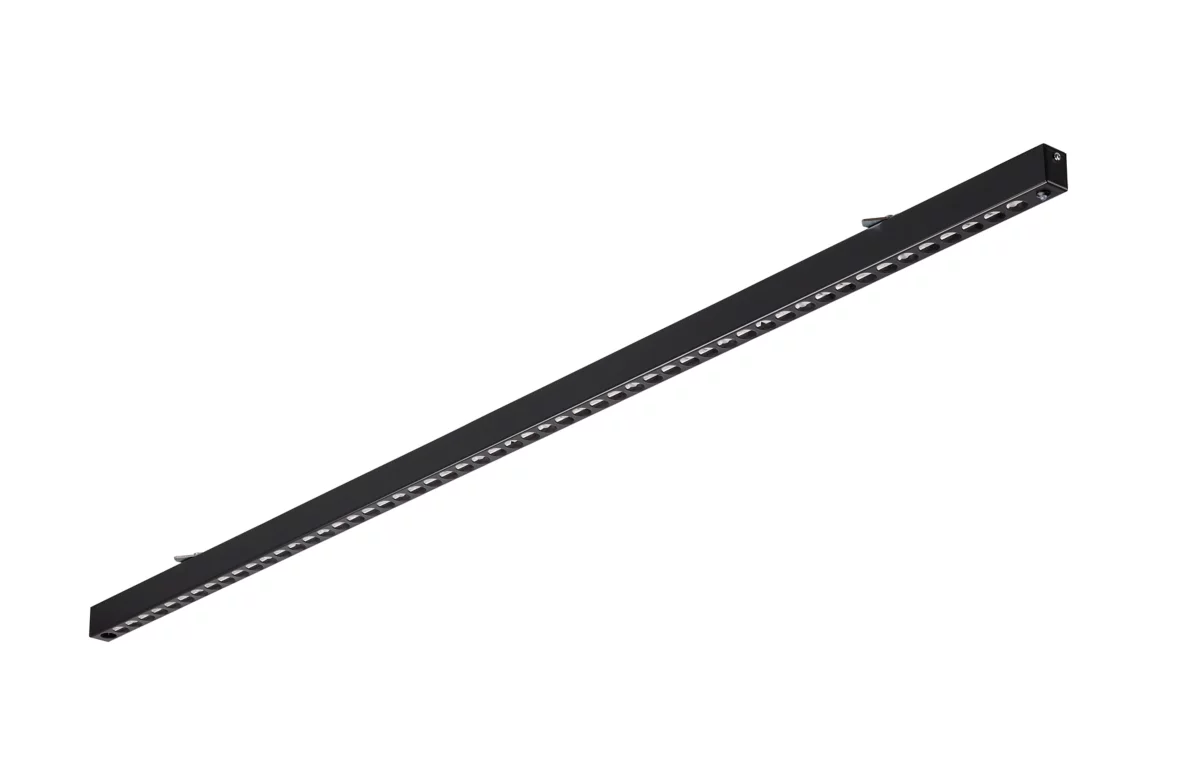

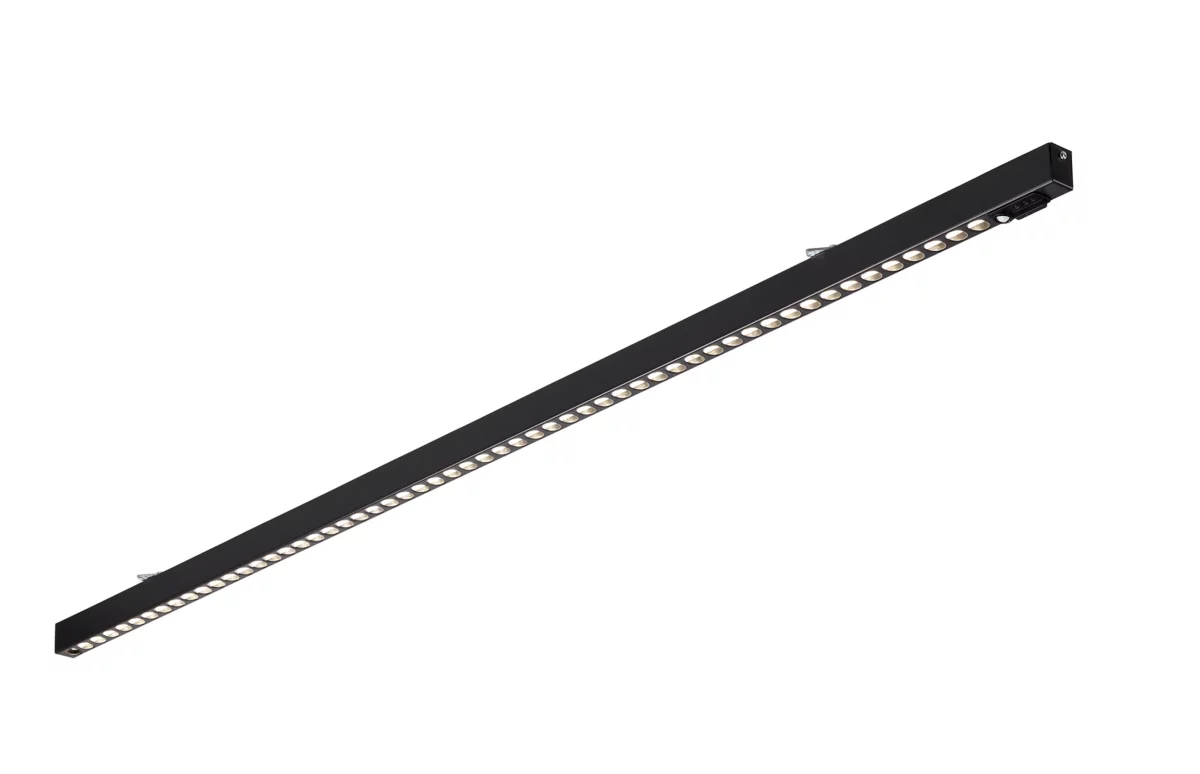

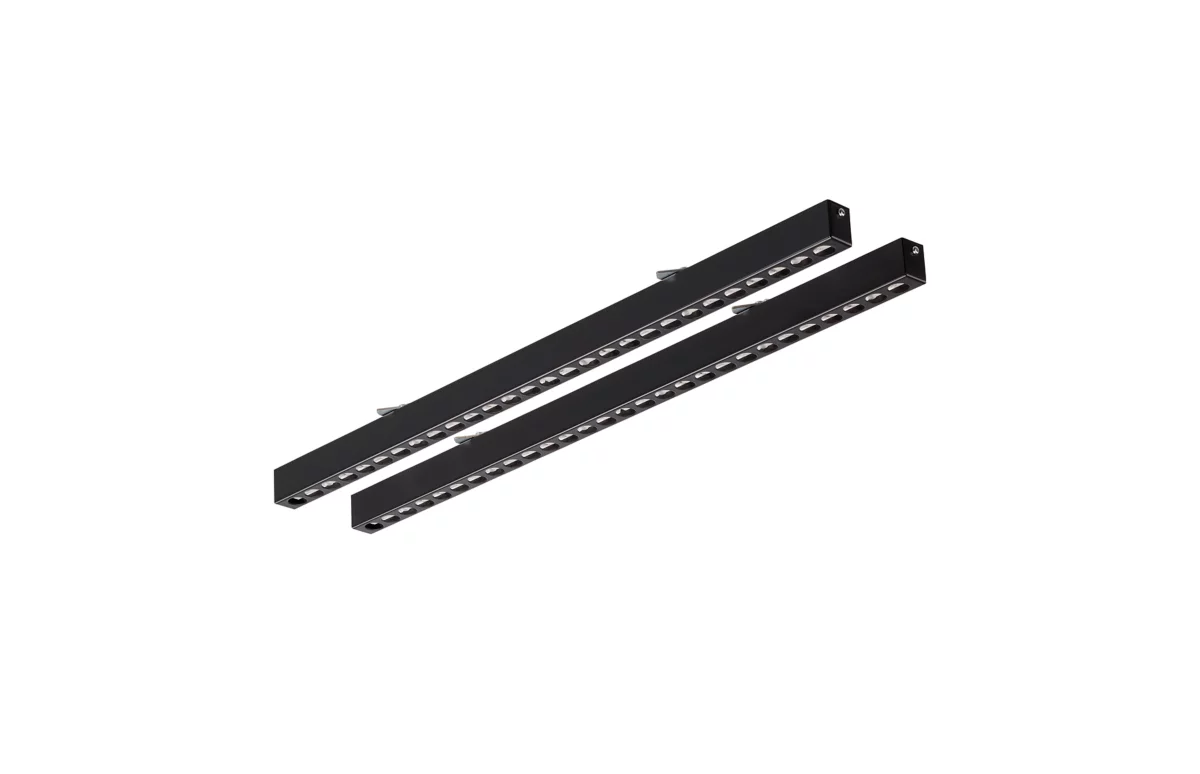

Architects need a lighting solution that matches the interior architecture of the space they are enhancing. TrueSlim is an offering that meets the flexibility requirements for ceiling integration, suitable for a InterAlu & Haufe ceiling types. Specifiers & ceiling integrators need luminaires that save energy, at the same time as providing the right level of light to fit into a specific ceiling dimension. Not only is it compliant with the WELL Building Standard for Light, TrueSlim is rated UGR<19, which is compliant with all office norms (OC). These luminaires in the family are available in different lengths and light outputs. This offers the ultimate design flexibility and unlimited possibilities. TrueSlim luminaires are also a sustainable, with efficiency up to 110 lm/W, lifetime of L90 at 50K hrs and the option to upgrade to wireless connectivity and control.
Features
Uniform lighting with excellent glare control (UGR<19, L65<3000cd/m2)
Luminaire is specially designed for use in linear lamella ceilings
3000K & 4000K in CRI>80
Long lifetime L90@50,000 hours
Stand-alone driver with default 5m cable. DALI version: 2 luminaires with 1 driver; Interact sensor version: 1 luminaire with 1 driver.
Luminaire is hanging on the lamella with spring clips for easy installation.
Integrated sensors/wireless drivers for data collection, occupancy, daylight regulation and wayfinding
Environmental Product Declaration (EPD)
Safety and installation: The product is IP20 and, as such, is not protected against water ingress. Therefore, we strongly recommend that the environment in which the luminaire is to be installed is suitably checked. If the above advice is not taken and the luminaires are subject to water ingress, Philips / Signify cannot guarantee safe failure and the product warranty will become void.
Benefits
Office compliant lighting
Future-ready, scalable smart office capabilities
Compatible with the Interact connected lighting system
Supports sustainable building design and energy-saving subsidy criteria
