Data and documents come from the official Signify (Philips) catalogue.

Office lightingTrunking

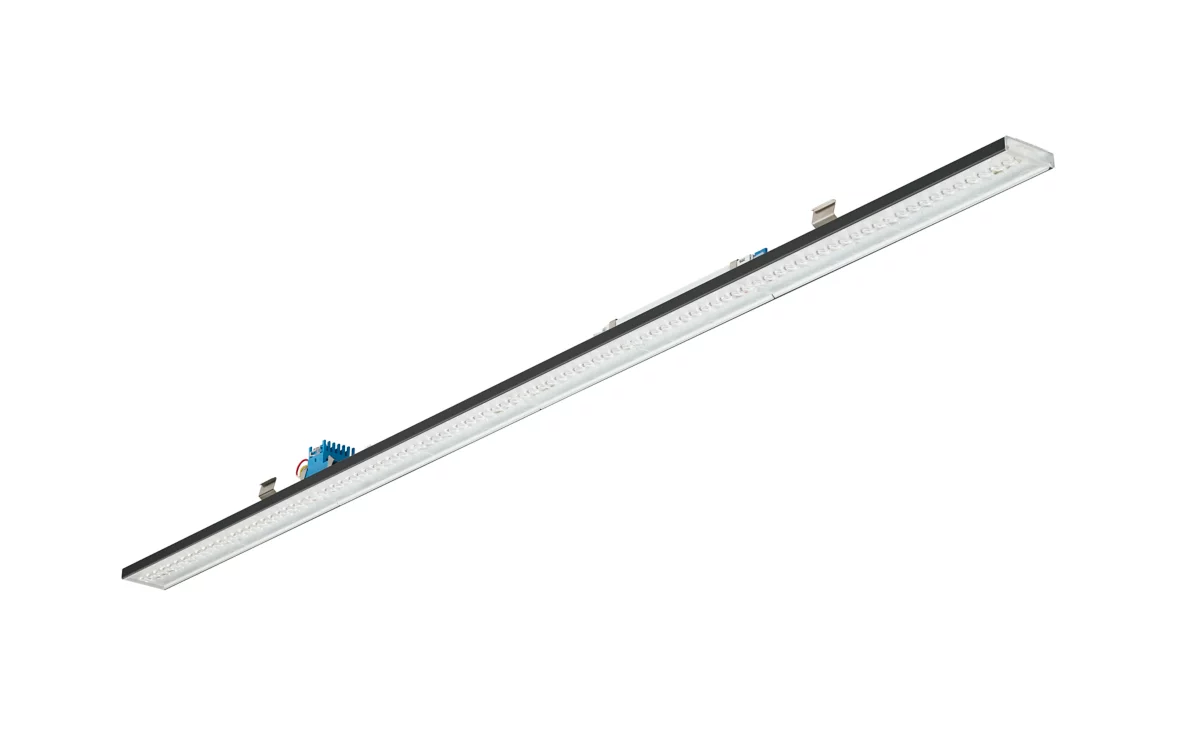

Maxos unify

Name: Philips Lighting Uzbekistan
Address: Tashkent, Chilanzar district, Lutfiy MFY, Bogiston St. 10, Tashkent, UZ
Telephone: +998 90 945 1117
Price range: $$

LL551X / LL552X / LL553X

Luminous flux (lm): 4.4–24,000 lm
Wattage (W): 20.5–130 W
Efficacy (lm/W): 151–200 lm/W
CCT (K): 4000
IP rating: IP20
IK rating: IK03

Request a quote Family leaflet (PDF)

List the order codes — we prepare a quotation and check availability. · 58 order codes

An adaptable LED trunking system, combining the well proven advantages of an electrical track which allows flexible positioning of linear panels offering multiple flux/ length combinations with specially designed lenses to direct the light where needed. A solution allowing for new projects to be designed with optimal number of linear panels and a solution for retrofitting old installations - Bringing your application right up to date with the latest lighting possibilities. Now, and in the future.

Features

Simplified panel offer -> 1,5m and 2,25m built on modular components.
High efficacy upto 200lm/W in UE range
Lumen maintenance L85 100k hrs across the range
Dedicated sensor units to upgrade to interact system propositions

Benefits

Easy retrofit ‘old’ Maxos and TTX400 electrical units with significant energy savings with UE portfolio
Upgrade to Interact systems to unlock more savings
Flexible trunking infrastructure with a solution for all electrical scenarios and beyond
Reliable and long lasting performance across the full offer

Applications

Food and Large Retailers
Manufacturing
Warehouses

Documentation

Family leaflet (PDF) · EN
Order-code datasheet — PDF ↓

Versions and order codes

Every version of the family from the official catalogue. Click PDF to download the datasheet of a specific order code.

Order code	Name	Luminous flux	Wattage	CCT	IP	Optic	PDF
910925870842	LL551X 40S/840 NE DIA WB WH Maxos unify, Trunking light unit, 24 W, 1478 mm, 4000 lm, 4000 K, DALI, Interact Ready, Wide beam, Textured, White, IP20	4,000 lm	24 W	4000	IP20	Wide beam	PDF
910925870843	LL551X 80S/840 NE DIA WB WH Maxos unify, Trunking light unit, 48 W, 1478 mm, 8000 lm, 4000 K, DALI, Interact Ready, Wide beam, Textured, White, IP20	8,000 lm	48 W	4000	IP20	Wide beam	PDF
910925870844	LL551X 80S/840 NE DIA NB WH Maxos unify, Trunking light unit, 48 W, 1478 mm, 8000 lm, 4000 K, DALI, Interact Ready, Narrow beam, Textured, White, IP20	8,000 lm	48 W	4000	IP20	Narrow beam	PDF
910925870845	LL551X 105S/840 NE DIA NB WH Maxos unify, Trunking light unit, 65 W, 1478 mm, 10500 lm, 4000 K, DALI, Interact Ready, Narrow beam, Textured, White, IP20	10,500 lm	65 W	4000	IP20	Narrow beam	PDF
910925870846	LL551X 40S/840 UE DIA WB BK Maxos unify, Trunking light unit, UltraEfficient, 20.5 W, 1478 mm, 4000 lm, 4000 K, DALI, Interact Ready, Wide beam, Textured, Black, IP20	4,000 lm	20.5 W	4000	IP20	Wide beam	PDF
910925870847	LL551X 80S/840 UE DIA WB BK Maxos unify, Trunking light unit, UltraEfficient, 41 W, 1478 mm, 8000 lm, 4000 K, DALI, Interact Ready, Wide beam, Textured, Black, IP20	8,000 lm	41 W	4000	IP20	Wide beam	PDF
910925870848	LL551X 80S/840 UE DIA NB BK Maxos unify, Trunking light unit, UltraEfficient, 41 W, 1478 mm, 8000 lm, 4000 K, DALI, Interact Ready, Narrow beam, Textured, Black, IP20	8,000 lm	41 W	4000	IP20	Narrow beam	PDF
910925870849	LL551X 105S/840 UE DIA NB BK Maxos unify, Trunking light unit, UltraEfficient, 56 W, 1478 mm, 10500 lm, 4000 K, DALI, Interact Ready, Narrow beam, Textured, Black, IP20	10,500 lm	56 W	4000	IP20	Narrow beam	PDF
910925870850	LL552X 62S/840 NE DIA WB WH Maxos unify, Trunking light unit, 35.5 W, 2215 mm, 6200 lm, 4000 K, DALI, Interact Ready, Wide beam, Textured, White, IP20	6,200 lm	35.5 W	4000	IP20	Wide beam	PDF
910925870851	LL552X 160S/840 NE DIA NB WH Maxos unify, Trunking light unit, 98 W, 2215 mm, 16000 lm, 4000 K, DALI, Interact Ready, Narrow beam, Textured, White, IP20	16,000 lm	98 W	4000	IP20	Narrow beam	PDF
910925870852	LL552X 62S/840 UE DIA WB WH Maxos unify, Trunking light unit, UltraEfficient, 31 W, 2215 mm, 6200 lm, 4000 K, DALI, Interact Ready, Wide beam, Textured, White, IP20	6,200 lm	31 W	4000	IP20	Wide beam	PDF
910925870853	LL552X 160S/840 UE DIA NB WH Maxos unify, Trunking light unit, UltraEfficient, 84 W, 2215 mm, 16000 lm, 4000 K, DALI, Interact Ready, Narrow beam, Textured, White, IP20	16,000 lm	84 W	4000	IP20	Narrow beam	PDF
910925870854	LL552X 62S/840 NE SIA WB WH Maxos unify, Trunking light unit, 34.5 W, 2215 mm, 6200 lm, 4000 K, Wireless, Interact Ready, Wide beam, Textured, White, IP20	6,200 lm	34.5 W	4000	IP20	Wide beam	PDF
910925870855	LL552X 160S/840 NE SIA NB WH Maxos unify, Trunking light unit, 98 W, 2215 mm, 16000 lm, 4000 K, Wireless, Interact Ready, Narrow beam, Textured, White, IP20	16,000 lm	98 W	4000	IP20	Narrow beam	PDF
910925870856	LL552X 62S/840 UE SIA WB WH Maxos unify, Trunking light unit, UltraEfficient, 31.5 W, 2215 mm, 6200 lm, 4000 K, Wireless, Interact Ready, Wide beam, Textured, White, IP20	6,200 lm	31.5 W	4000	IP20	Wide beam	PDF
910925870857	LL552X 100S/840 UE SIA WB WH Maxos unify, Trunking light unit, UltraEfficient, 51 W, 2215 mm, 10000 lm, 4000 K, Wireless, Interact Ready, Wide beam, Textured, White, IP20	10,000 lm	51 W	4000	IP20	Wide beam	PDF
910925870858	LL552X 160S/840 UE SIA NB WH Maxos unify, Trunking light unit, UltraEfficient, 84 W, 2215 mm, 16000 lm, 4000 K, Wireless, Interact Ready, Narrow beam, Textured, White, IP20	16,000 lm	84 W	4000	IP20	Narrow beam	PDF
910925870859	LL553X 40S/840 NE DIA WB WH Maxos unify, Trunking light unit, 24 W, 1478 mm, 4000 lm, 4000 K, DALI, Interact Ready, Wide beam, Textured, White, IP20	4,000 lm	24 W	4000	IP20	Wide beam	PDF
910925870860	LL553X 80S/840 NE DIA WB WH Maxos unify, Trunking light unit, 48 W, 1478 mm, 8000 lm, 4000 K, DALI, Interact Ready, Wide beam, Textured, White, IP20	8,000 lm	48 W	4000	IP20	Wide beam	PDF
910925870861	LL553X 80S/840 NE DIA NB WH Maxos unify, Trunking light unit, 48 W, 1478 mm, 8000 lm, 4000 K, DALI, Interact Ready, Narrow beam, Textured, White, IP20	8,000 lm	48 W	4000	IP20	Narrow beam	PDF
910925870862	LL553X 105S/840 NE DIA NB WH Maxos unify, Trunking light unit, 65 W, 1478 mm, 10500 lm, 4000 K, DALI, Interact Ready, Narrow beam, Textured, White, IP20	10,500 lm	65 W	4000	IP20	Narrow beam	PDF
910925870863	LL553X 40S/840 UE DIA WB WH Maxos unify, Trunking light unit, UltraEfficient, 20.5 W, 1478 mm, 4000 lm, 4000 K, DALI, Interact Ready, Wide beam, Textured, White, IP20	4,000 lm	20.5 W	4000	IP20	Wide beam	PDF
910925870864	LL553X 80S/840 UE DIA WB WH Maxos unify, Trunking light unit, UltraEfficient, 41 W, 1478 mm, 8000 lm, 4000 K, DALI, Interact Ready, Wide beam, Textured, White, IP20	8,000 lm	41 W	4000	IP20	Wide beam	PDF
910925870865	LL553X 80S/840 UE DIA NB WH Maxos unify, Trunking light unit, UltraEfficient, 41 W, 1478 mm, 8000 lm, 4000 K, DALI, Interact Ready, Narrow beam, Textured, White, IP20	8,000 lm	41 W	4000	IP20	Narrow beam	PDF
910925870866	LL553X 105S/840 UE DIA NB WH Maxos unify, Trunking light unit, UltraEfficient, 56 W, 1478 mm, 10500 lm, 4000 K, DALI, Interact Ready, Narrow beam, Textured, White, IP20	10,500 lm	56 W	4000	IP20	Narrow beam	PDF
910925870925	LL551X 105S/840 NE DIA WB WH Maxos unify, Trunking light unit, 65 W, L1478 mm, 10500 lm, 4000 K, DALI, Interact Ready, Wide beam, Textured, White, IP20	10,500 lm	65 W	4000	IP20	Wide beam	PDF
910925870929	LL553X 105S/840 NE DIA WB WH Maxos unify, Trunking light unit, 65 W, L1478 mm, 10500 lm, 4000 K, DALI, Interact Ready, Wide beam, Textured, White, IP20	10,500 lm	65 W	4000	IP20	Wide beam	PDF
910925870930	LL553X 40S/840 NE DIA WB C-2R WH Maxos unify, Trunking light unit, 24 W, L1478 mm, 4000 lm, 4000 K, DALI, Interact Ready, Wide beam, Textured, White, IP20	4,000 lm	24 W	4000	IP20	Wide beam	PDF
910925870931	LL553X 80S/840 NE DIA WB C-2R WH Maxos unify, Trunking light unit, 48 W, L1478 mm, 8000 lm, 4000 K, DALI, Interact Ready, Wide beam, Textured, White, IP20	8,000 lm	48 W	4000	IP20	Wide beam	PDF
910925870932	LL553X 80S/840 NE DIA NB C-2R WH Maxos unify, Trunking light unit, 48 W, L1478 mm, 8000 lm, 4000 K, DALI, Interact Ready, Narrow beam, Textured, White, IP20	8,000 lm	48 W	4000	IP20	Narrow beam	PDF
910925870933	LL553X 105S/840 NE DIA WB C-2R WH Maxos unify, Trunking light unit, 65 W, L1478 mm, 10500 lm, 4000 K, DALI, Interact Ready, Wide beam, Textured, White, IP20	10,500 lm	65 W	4000	IP20	Wide beam	PDF
910925870934	LL553X 105S/840 NE DIA NB C-2R WH Maxos unify, Trunking light unit, 65 W, L1478 mm, 10500 lm, 4000 K, DALI, Interact Ready, Narrow beam, Textured, White, IP20	10,500 lm	65 W	4000	IP20	Narrow beam	PDF
910925871016	LL551X 43_49_60_72S/840 NE PSU WB WH Maxos unify, Trunking light unit, 42.5 W, 1478 mm, 4400 lm, 5000 lm, 6100 lm, 7200 lm, 4000 K, Interact Ready, Wide beam, Textured, White, IP20	4,400\|5,000\|6,100\|7,200 lm	42.5 W	4000	IP20	Wide beam	PDF
910925871017	LL551X 43_49_60_72S/840 NE PSU VWB WH Maxos unify, Trunking light unit, 42.5 W, 1478 mm, 4400 lm, 5000 lm, 6100 lm, 7200 lm, 4000 K, Interact Ready, Very wide beam, Textured, White, IP20	4,400\|5,000\|6,100\|7,200 lm	42.5 W	4000	IP20	Very wide beam	PDF
910925871018	LL551X 43_49_60_72S/840 NE PSU NB WH Maxos unify, Trunking light unit, 42.5 W, 1478 mm, 4400 lm, 5000 lm, 6100 lm, 7200 lm, 4000 K, Interact Ready, Narrow beam, Textured, White, IP20	4,400\|5,000\|6,100\|7,200 lm	42.5 W	4000	IP20	Narrow beam	PDF
910925871019	LL551X 47_54_66_80S/840 UE PSU WB WH Maxos unify, Trunking light unit, UltraEfficient, 41.5 W, 1478 mm, 4800 lm, 5500 lm, 6700 lm, 8000 lm, 4000 K, Interact Ready, Wide beam, Textured, White, IP20	4,800\|5,500\|6,700\|8,000 lm	41.5 W	4000	IP20	Wide beam	PDF
910925871020	LL551X 47_54_66_80S/840 UE PSU VWB WH Maxos unify, Trunking light unit, UltraEfficient, 41.5 W, 1478 mm, 4800 lm, 5500 lm, 6700 lm, 8000 lm, 4000 K, Interact Ready, Very wide beam, Textured, White, IP20	4,800\|5,500\|6,700\|8,000 lm	41.5 W	4000	IP20	Very wide beam	PDF
910925871021	LL551X 47_54_66_80S/840 UE PSU NB WH Maxos unify, Trunking light unit, UltraEfficient, 41.5 W, 1478 mm, 4800 lm, 5500 lm, 6700 lm, 8000 lm, 4000 K, Interact Ready, Narrow beam, Textured, White, IP20	4,800\|5,500\|6,700\|8,000 lm	41.5 W	4000	IP20	Narrow beam	PDF
910925871022	LL551X 40S/840 NE DIA VWB WH Maxos unify, Trunking light unit, 24 W, 1478 mm, 4000 lm, 4000 K, DALI, Interact Ready, Very wide beam, Textured, White, IP20	4,000 lm	24 W	4000	IP20	Very wide beam	PDF
910925871023	LL551X 80S/840 NE DIA VWB WH Maxos unify, Trunking light unit, 48 W, 1478 mm, 8000 lm, 4000 K, DALI, Interact Ready, Very wide beam, Textured, White, IP20	8,000 lm	48 W	4000	IP20	Very wide beam	PDF

910925870842
LL551X 40S/840 NE DIA WB WH
PDF
Luminous flux
4,000 lm
Wattage
24 W
CCT
4000
IP
IP20
910925870843
LL551X 80S/840 NE DIA WB WH
PDF
Luminous flux
8,000 lm
Wattage
48 W
CCT
4000
IP
IP20
910925870844
LL551X 80S/840 NE DIA NB WH
PDF
Luminous flux
8,000 lm
Wattage
48 W
CCT
4000
IP
IP20
910925870845
LL551X 105S/840 NE DIA NB WH
PDF
Luminous flux
10,500 lm
Wattage
65 W
CCT
4000
IP
IP20
910925870846
LL551X 40S/840 UE DIA WB BK
PDF
Luminous flux
4,000 lm
Wattage
20.5 W
CCT
4000
IP
IP20
910925870847
LL551X 80S/840 UE DIA WB BK
PDF
Luminous flux
8,000 lm
Wattage
41 W
CCT
4000
IP
IP20
910925870848
LL551X 80S/840 UE DIA NB BK
PDF
Luminous flux
8,000 lm
Wattage
41 W
CCT
4000
IP
IP20
910925870849
LL551X 105S/840 UE DIA NB BK
PDF
Luminous flux
10,500 lm
Wattage
56 W
CCT
4000
IP
IP20
910925870850
LL552X 62S/840 NE DIA WB WH
PDF
Luminous flux
6,200 lm
Wattage
35.5 W
CCT
4000
IP
IP20
910925870851
LL552X 160S/840 NE DIA NB WH
PDF
Luminous flux
16,000 lm
Wattage
98 W
CCT
4000
IP
IP20
910925870852
LL552X 62S/840 UE DIA WB WH
PDF
Luminous flux
6,200 lm
Wattage
31 W
CCT
4000
IP
IP20
910925870853
LL552X 160S/840 UE DIA NB WH
PDF
Luminous flux
16,000 lm
Wattage
84 W
CCT
4000
IP
IP20
910925870854
LL552X 62S/840 NE SIA WB WH
PDF
Luminous flux
6,200 lm
Wattage
34.5 W
CCT
4000
IP
IP20
910925870855
LL552X 160S/840 NE SIA NB WH
PDF
Luminous flux
16,000 lm
Wattage
98 W
CCT
4000
IP
IP20
910925870856
LL552X 62S/840 UE SIA WB WH
PDF
Luminous flux
6,200 lm
Wattage
31.5 W
CCT
4000
IP
IP20
910925870857
LL552X 100S/840 UE SIA WB WH
PDF
Luminous flux
10,000 lm
Wattage
51 W
CCT
4000
IP
IP20
910925870858
LL552X 160S/840 UE SIA NB WH
PDF
Luminous flux
16,000 lm
Wattage
84 W
CCT
4000
IP
IP20
910925870859
LL553X 40S/840 NE DIA WB WH
PDF
Luminous flux
4,000 lm
Wattage
24 W
CCT
4000
IP
IP20
910925870860
LL553X 80S/840 NE DIA WB WH
PDF
Luminous flux
8,000 lm
Wattage
48 W
CCT
4000
IP
IP20
910925870861
LL553X 80S/840 NE DIA NB WH
PDF
Luminous flux
8,000 lm
Wattage
48 W
CCT
4000
IP
IP20
910925870862
LL553X 105S/840 NE DIA NB WH
PDF
Luminous flux
10,500 lm
Wattage
65 W
CCT
4000
IP
IP20
910925870863
LL553X 40S/840 UE DIA WB WH
PDF
Luminous flux
4,000 lm
Wattage
20.5 W
CCT
4000
IP
IP20
910925870864
LL553X 80S/840 UE DIA WB WH
PDF
Luminous flux
8,000 lm
Wattage
41 W
CCT
4000
IP
IP20
910925870865
LL553X 80S/840 UE DIA NB WH
PDF
Luminous flux
8,000 lm
Wattage
41 W
CCT
4000
IP
IP20
910925870866
LL553X 105S/840 UE DIA NB WH
PDF
Luminous flux
10,500 lm
Wattage
56 W
CCT
4000
IP
IP20
910925870925
LL551X 105S/840 NE DIA WB WH
PDF
Luminous flux
10,500 lm
Wattage
65 W
CCT
4000
IP
IP20
910925870929
LL553X 105S/840 NE DIA WB WH
PDF
Luminous flux
10,500 lm
Wattage
65 W
CCT
4000
IP
IP20
910925870930
LL553X 40S/840 NE DIA WB C-2R WH
PDF
Luminous flux
4,000 lm
Wattage
24 W
CCT
4000
IP
IP20
910925870931
LL553X 80S/840 NE DIA WB C-2R WH
PDF
Luminous flux
8,000 lm
Wattage
48 W
CCT
4000
IP
IP20
910925870932
LL553X 80S/840 NE DIA NB C-2R WH
PDF
Luminous flux
8,000 lm
Wattage
48 W
CCT
4000
IP
IP20
910925870933
LL553X 105S/840 NE DIA WB C-2R WH
PDF
Luminous flux
10,500 lm
Wattage
65 W
CCT
4000
IP
IP20
910925870934
LL553X 105S/840 NE DIA NB C-2R WH
PDF
Luminous flux
10,500 lm
Wattage
65 W
CCT
4000
IP
IP20
910925871016
LL551X 43_49_60_72S/840 NE PSU WB WH
PDF
Luminous flux
4,400|5,000|6,100|7,200 lm
Wattage
42.5 W
CCT
4000
IP
IP20
910925871017
LL551X 43_49_60_72S/840 NE PSU VWB WH
PDF
Luminous flux
4,400|5,000|6,100|7,200 lm
Wattage
42.5 W
CCT
4000
IP
IP20
910925871018
LL551X 43_49_60_72S/840 NE PSU NB WH
PDF
Luminous flux
4,400|5,000|6,100|7,200 lm
Wattage
42.5 W
CCT
4000
IP
IP20
910925871019
LL551X 47_54_66_80S/840 UE PSU WB WH
PDF
Luminous flux
4,800|5,500|6,700|8,000 lm
Wattage
41.5 W
CCT
4000
IP
IP20
910925871020
LL551X 47_54_66_80S/840 UE PSU VWB WH
PDF
Luminous flux
4,800|5,500|6,700|8,000 lm
Wattage
41.5 W
CCT
4000
IP
IP20
910925871021
LL551X 47_54_66_80S/840 UE PSU NB WH
PDF
Luminous flux
4,800|5,500|6,700|8,000 lm
Wattage
41.5 W
CCT
4000
IP
IP20
910925871022
LL551X 40S/840 NE DIA VWB WH
PDF
Luminous flux
4,000 lm
Wattage
24 W
CCT
4000
IP
IP20
910925871023
LL551X 80S/840 NE DIA VWB WH
PDF
Luminous flux
8,000 lm
Wattage
48 W
CCT
4000
IP
IP20

Showing 40 of 58
