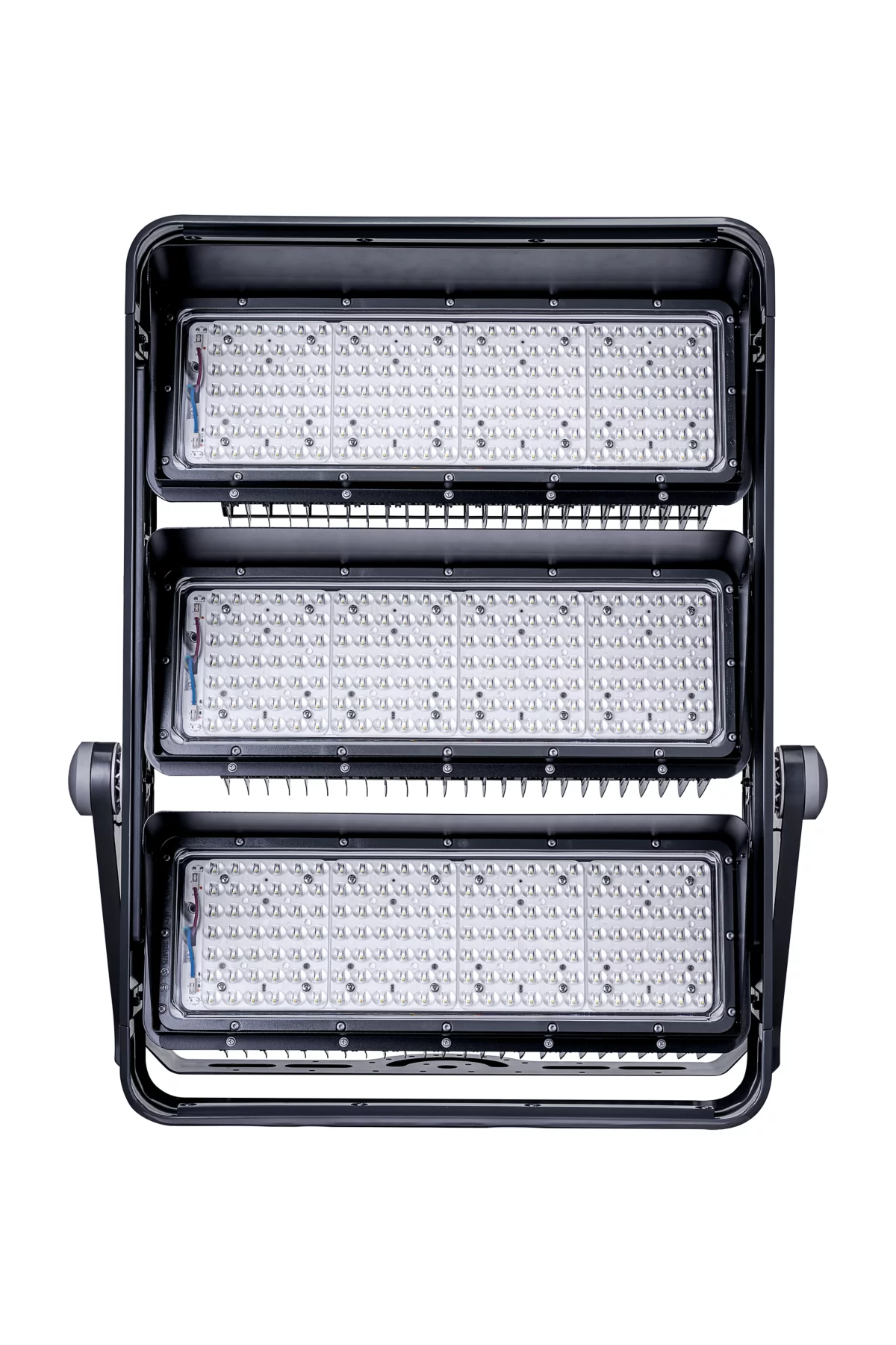

ActiStar Large

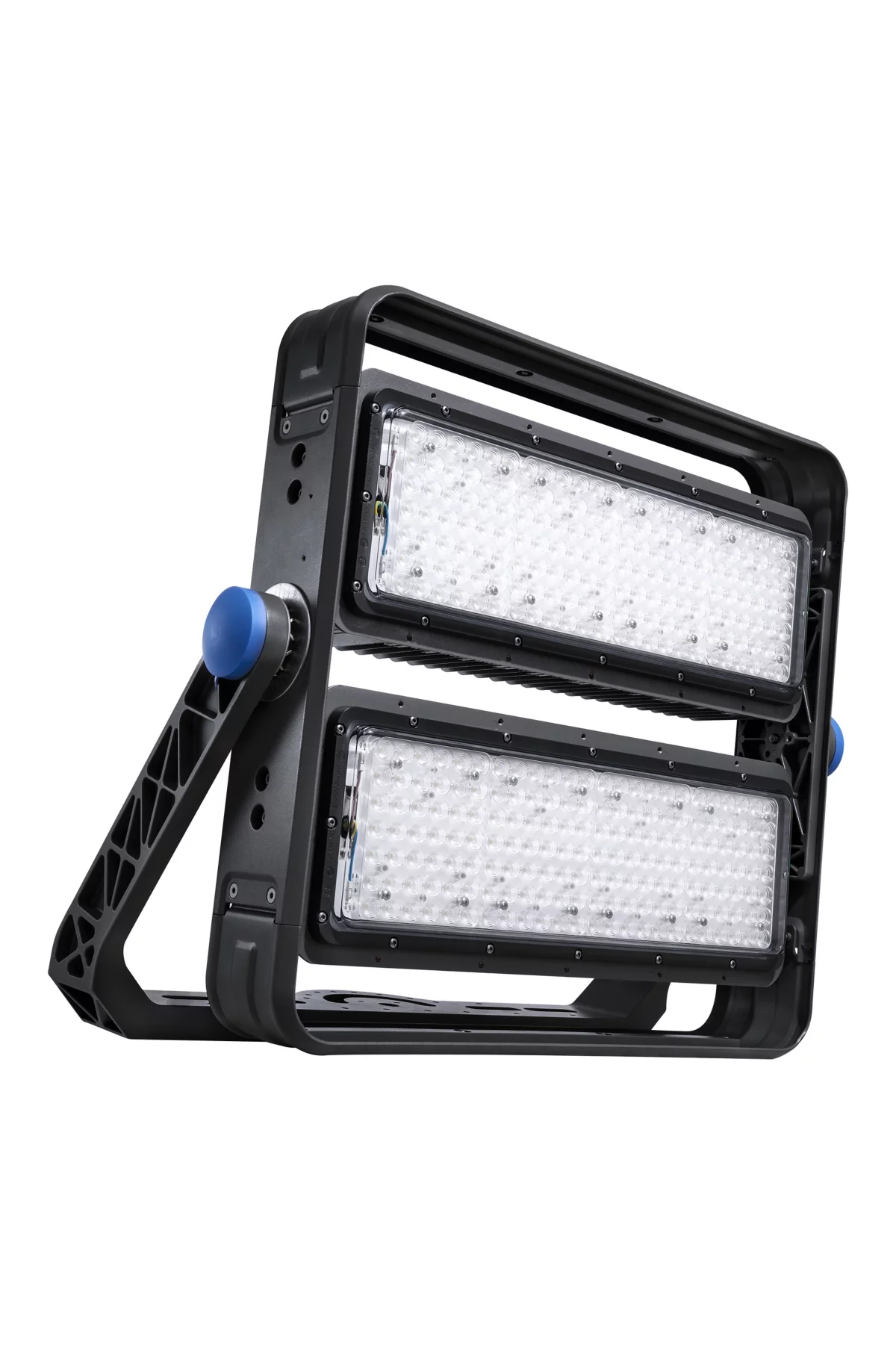

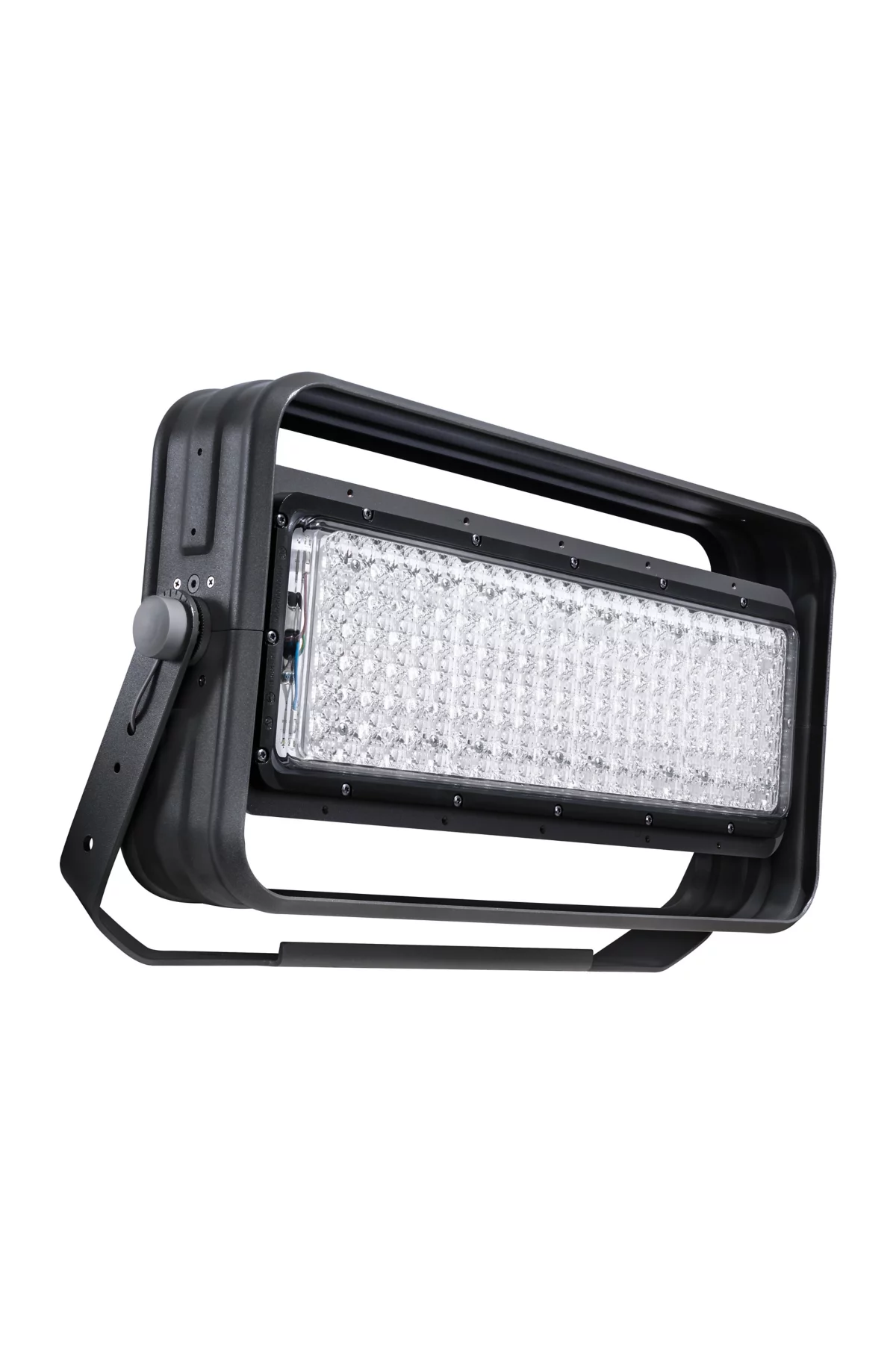

BVP581 / BVP582 / BVP583
The ActiStar Large represents a new era in large-area and recreational sports lighting, engineered to deliver superior performance, efficiency, and connectivity
List the order codes — we prepare a quotation and check availability. · 119 order codes
Family specifications
Ranges across every order code of the family. The exact values of a specific order code are in the table below: the «Specifications» button in its row.
Light technical
Luminous flux (lm)
76,800–249,500 lm
Efficacy (lm/W)
108–148 lm/W
CCT (K)
5700
Color rendering
70-79
Light distribution
Assymetric Beam angle
Optical cover
Polycarbonate
Electrical and controls
Wattage (W)
600–1,800 W
Dimming controls
DALI
Mechanical and housing
Mounting type
Mounting bracket
Housing material
Aluminium die-cast ADC1 - alloy grade (EN AC-47100)
Color of Housing
Grey
IP rating
IP66
IK rating
IK08
Length (mm)
668–737 mm
Width (mm)
260–670 mm
Height (mm)
375–913 mm
The ActiStar Large represents a new era in large-area and recreational sports lighting, engineered to deliver superior performance, efficiency, and connectivity. This comprehensive solution is designed to meet the demands of both simple and highly complex applications. Uncompromising Performance & Quality - Delivers exceptional light quality, uniformity, and visual comfort, ensuring safety and meeting the highest lighting performance standards with a long operational lifespan. Advanced Control & Connectivity-Features an integrated DALI driver box for seamless connectivity to building management systems. Its D4i standard compliance ensures readiness for advanced wireless control and IoT integration. Superior Energy Efficiency - The combination of high-efficacy LEDs and intelligent control capabilities leads to significant reductions in energy consumption and operational costs. Precision Optical Engineering - Equipped with a premium beam control system that maximizes light on the target area (higher lux levels and uniformity) while drastically reducing spill light and sky glow pollution for minimal environmental impact. Optimized for Versatile Applications - The robust, single-piece pressure die-cast aluminum housing is engineered for durability and features flexible bonding fins to minimize wind load, making it ideal for sports venues and other demanding installations. Modular & Scalable Design - Available in versatile configurations—hosting 1, 2, or 3 LED modules—to provide the exact luminous flux and coverage required for any project scale.
Features
System lumen output (CRI70) up to 249,500lm and 233,200lm (without visor)
Specialized designed visor to cut spill light
Color caps for easy identification of optic type at installation site
Both symmetric and asymmetric optics for better lighting performance given far distance light distribution and reduce quantity on project
PC and glass front face cover optional

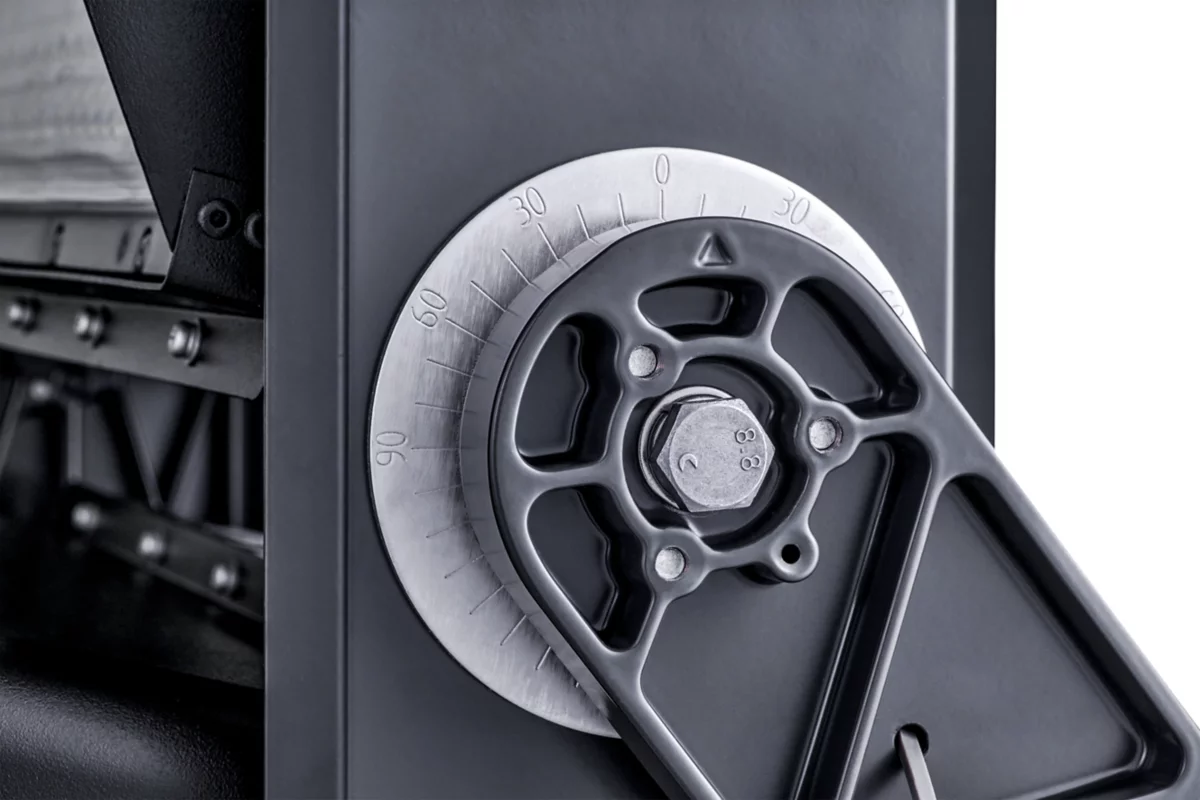

Horizontally rotatable (±75D) U bracket for easing aiming and commissioning

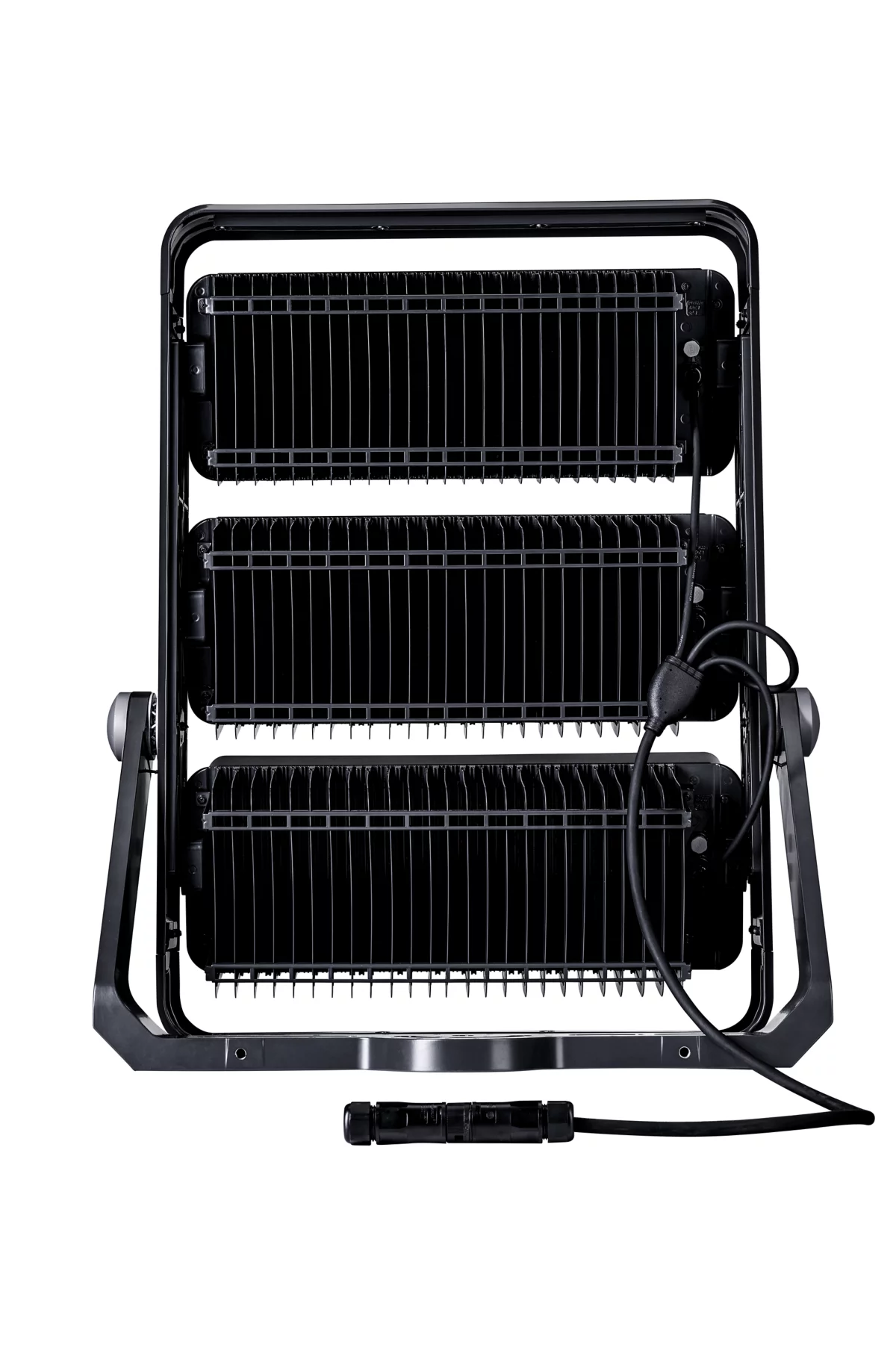

Breather on each LED module and 3-in-1 seamless cable for wiring, bird-proof conduit
Unique adjustable module design to lower wind loading pressure (SCx)
Safety and installation: Not suitable for industry area where chemical stuff exits. Application in corrosion enviroment like swimming pool, cosatline outdoors, please consult local sales team for speciall painting before order. Product has be installed on fixed objects.
Benefits
High system lumen package up to 249,500 lumens at color rendering index (CRI70) at high system efficacy reduces the number of fixtures and therefore lowers TCO per area.
The light weight (3Kg by 12% reduced compared to typical floodlight) and compact size will result in convenience of installation, lower structural load cost and lower wind loading pressure (SCx).
Innovative beam control system - proven optics in ArenaVision and specialized designed visors, ensuring arena lighting fully complying with global sports lighting standards and reducing the spill light (20% cut) towards neighbor environment.
Versatile mounting system with horizontally rotatable (±75D) bracket will enable installation with less constraints physically and easy aiming for optimal field illumination.
Beam easy tracking system (color coded cap) give more convenience on maintenance to track and identify optics of each lighting fixture.

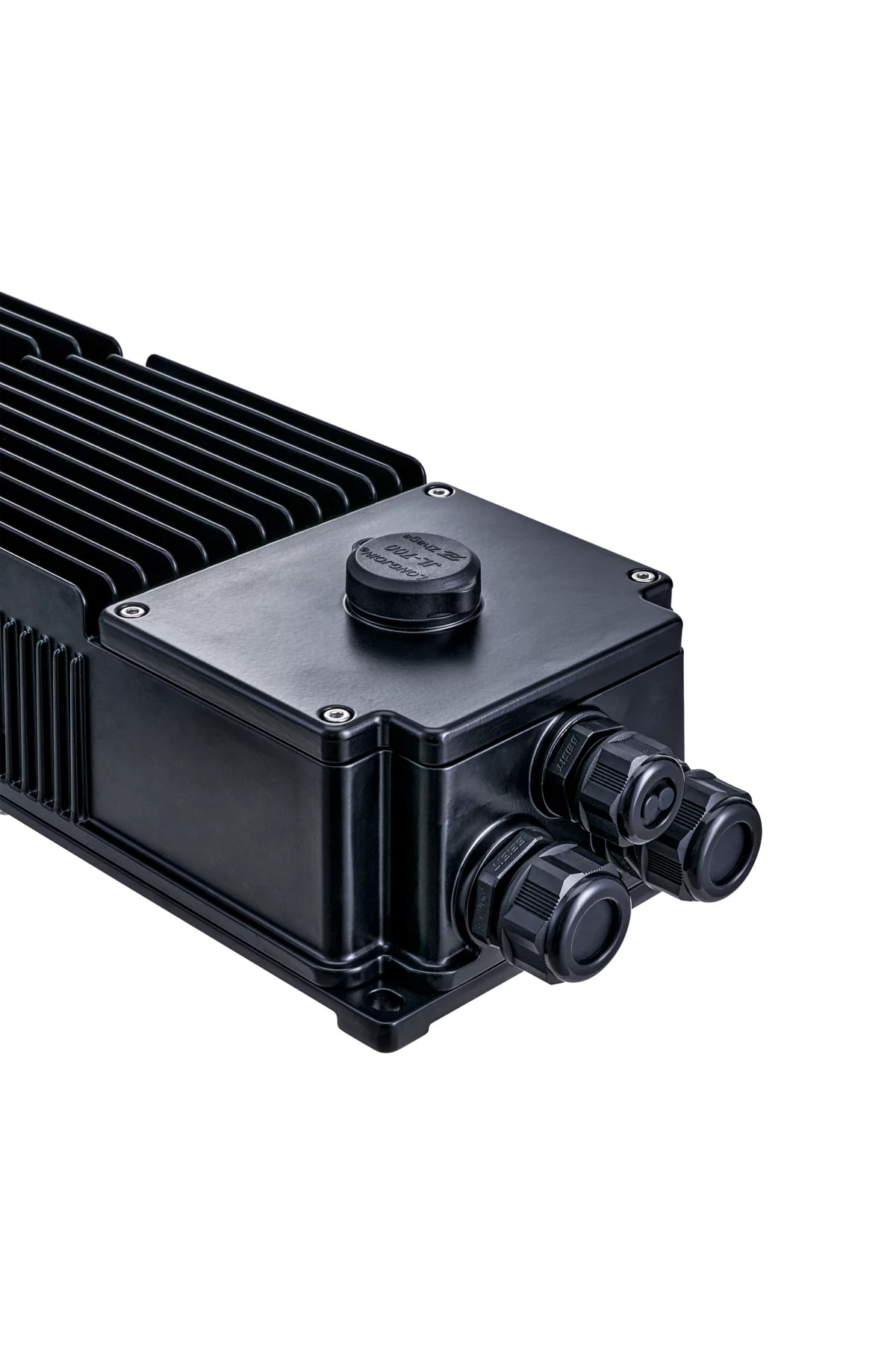

All-in-one driver of the luminaire integrate DMX/ RDM, complying to DALI and D4i which are compatible with Interact system to control lighting points, set operation scheme and asset-management.
