BVP167 / BVP169
With this Ledinaire all-in floodlights range, you can easily adjust the color temperature by a simple switch
List the order codes — we prepare a quotation and check availability. · 28 order codes
With this Ledinaire all-in floodlights range, you can easily adjust the color temperature by a simple switch. No need to choose between warm white, neutral white or cool white anymore, you get all this in one single product ! The range comes with the Philips high quality levels at a competitive price. Reliable, energy-efficient and affordable – just what you need.
Every version of the family from the official catalogue. Click PDF to download the datasheet of a specific order code.
| Order code | Name | Luminous flux | Wattage | CCT | IP | Optic | |
|---|---|---|---|---|---|---|---|

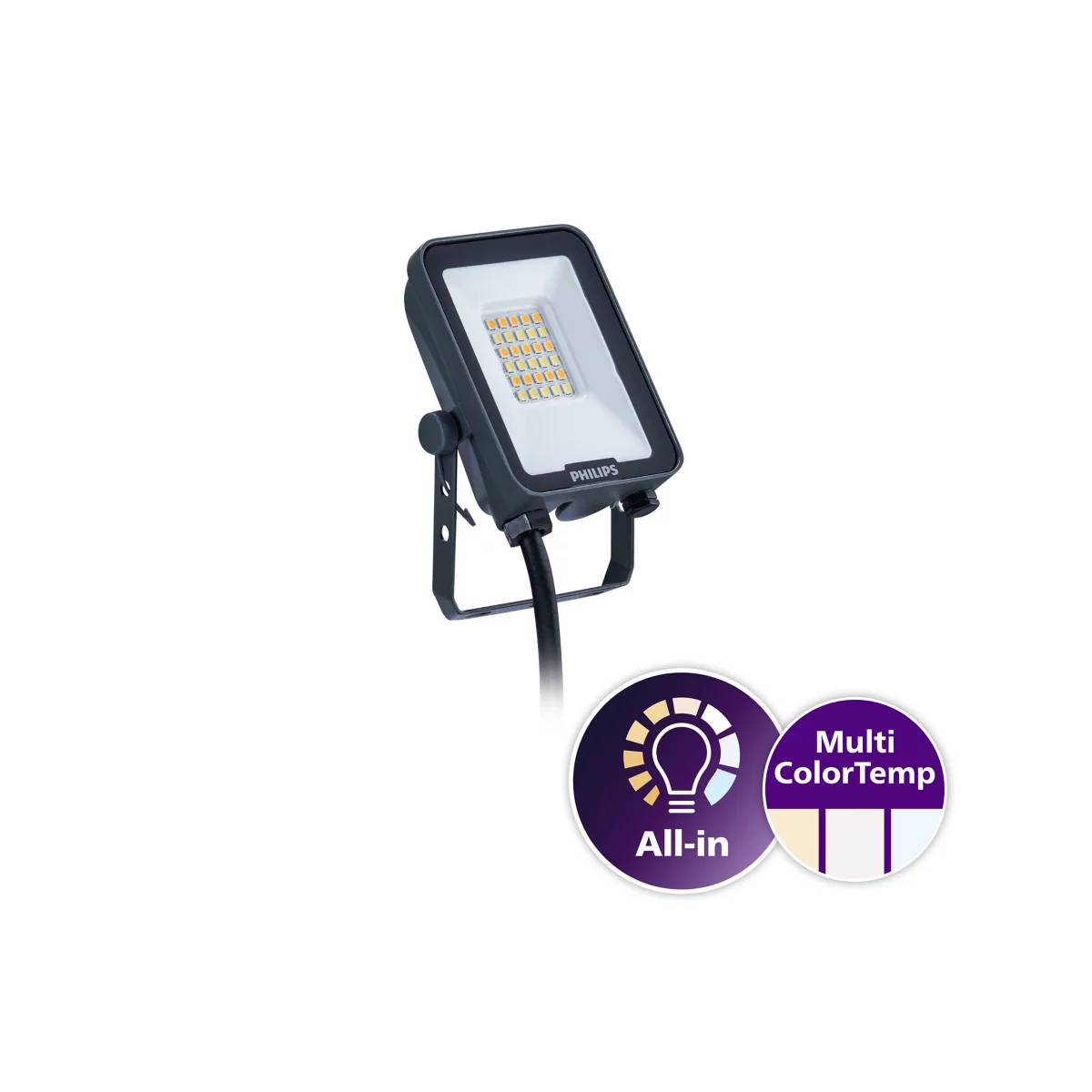

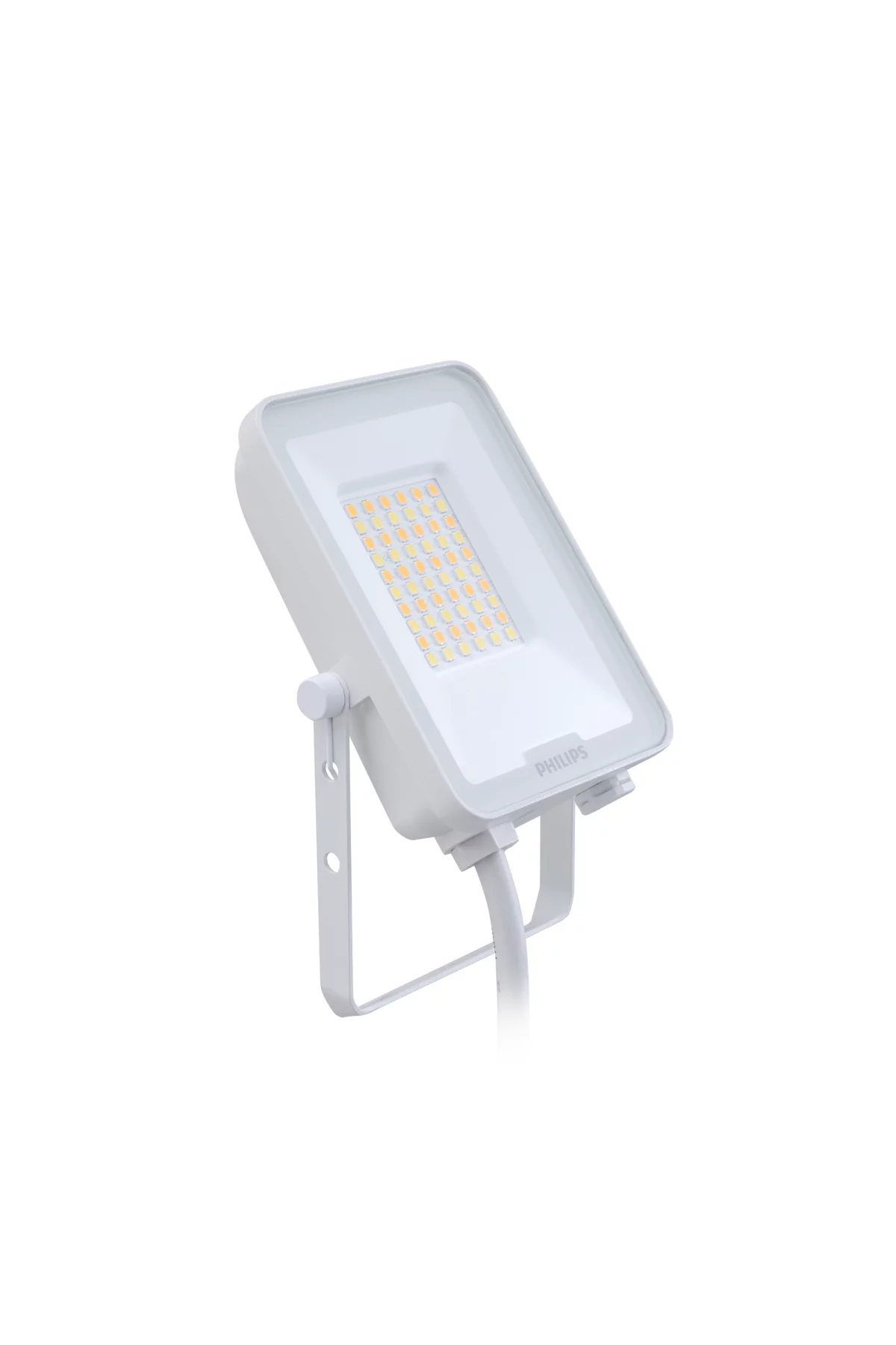

| 911401865988 | BVP167 LED24/830_40_65PSU 20W SWB WH Ledinaire All-in floodlights, 20 W, 2200 lm, 2400 lm, 3000 K, 4000 K, 6500 K, CRI80, Symmetrical wide beam, IP65 | 2,200|2,400 lm | 20 W | 3000, 4000, 6500 | IP65 | Symmetrical wide beam | |

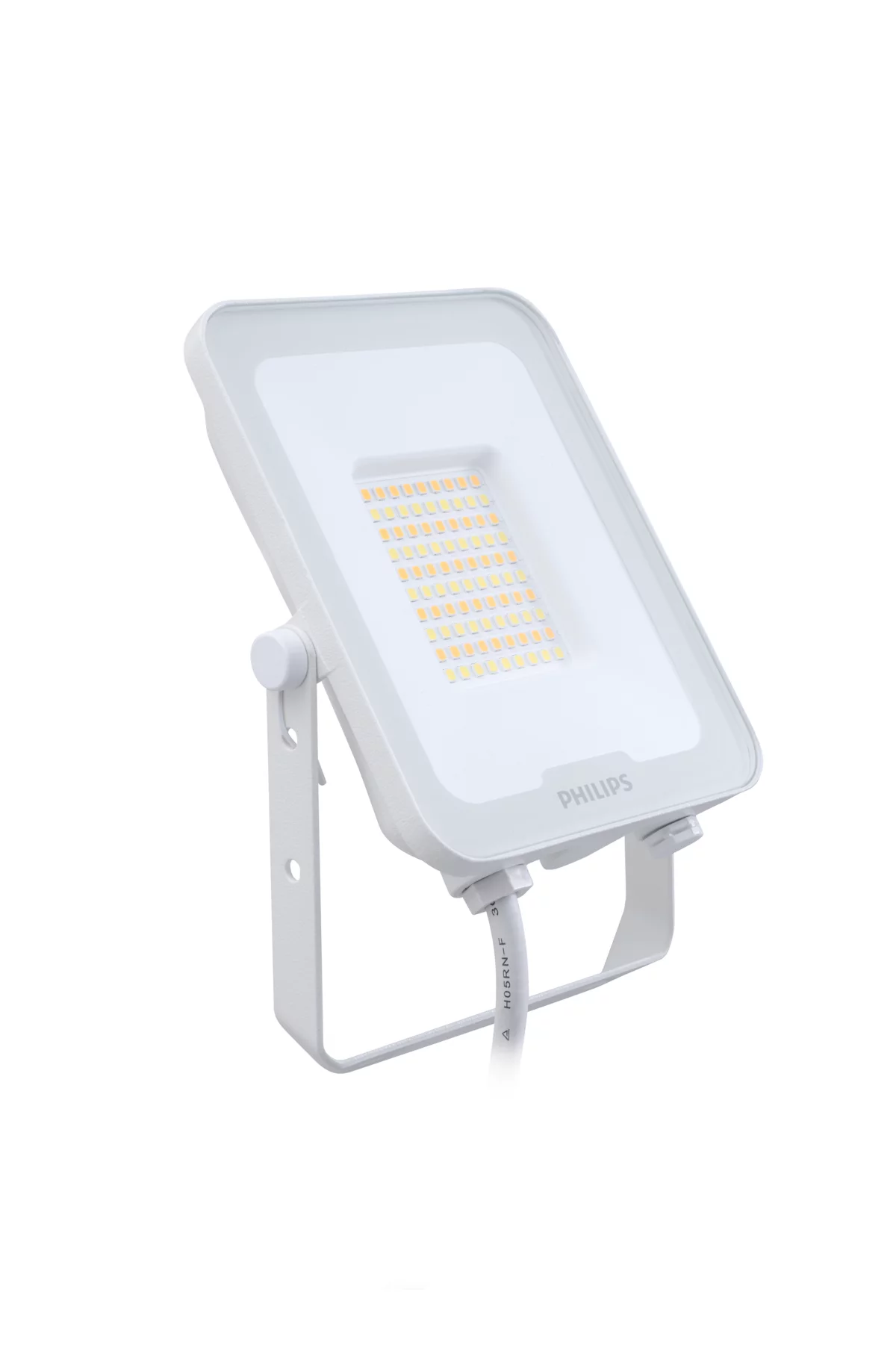

| 911401866088 | BVP167 LED36/830_40_65PSU 30W SWB WH Ledinaire All-in floodlights, 30 W, 3300 lm, 3600 lm, 3000 K, 4000 K, 6500 K, CRI80, Symmetrical wide beam, IP65 | 3,300|3,600 lm | 30 W | 3000, 4000, 6500 | IP65 | Symmetrical wide beam | |

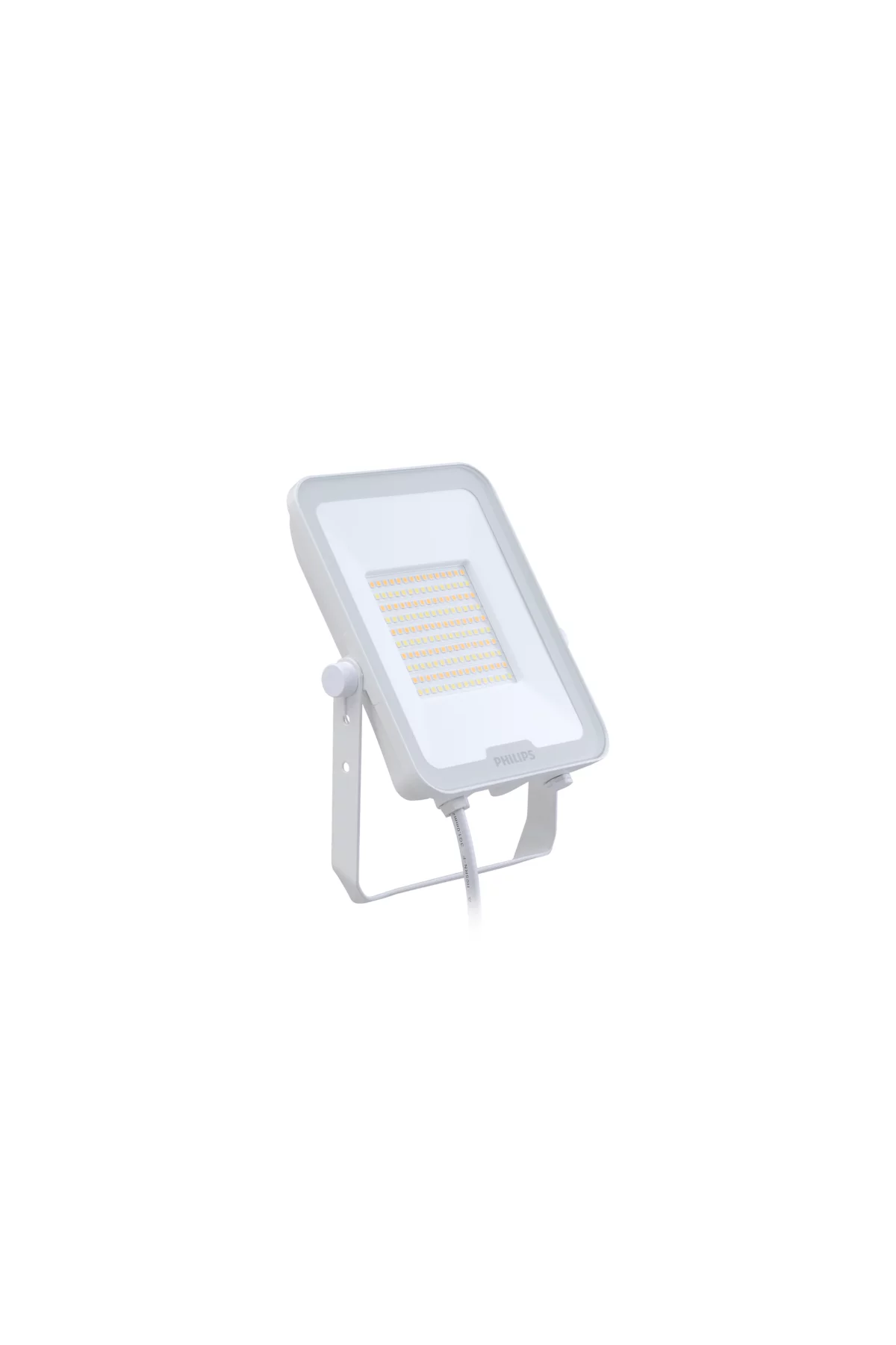

| 911401866188 | BVP167 LED60/830_40_65PSU 50W SWB WH Ledinaire All-in floodlights, 50 W, 5500 lm, 6000 lm, 3000 K, 4000 K, 6500 K, CRI80, Symmetrical wide beam, IP65 | 5,500|6,000 lm | 50 W | 3000, 4000, 6500 | IP65 | Symmetrical wide beam | |

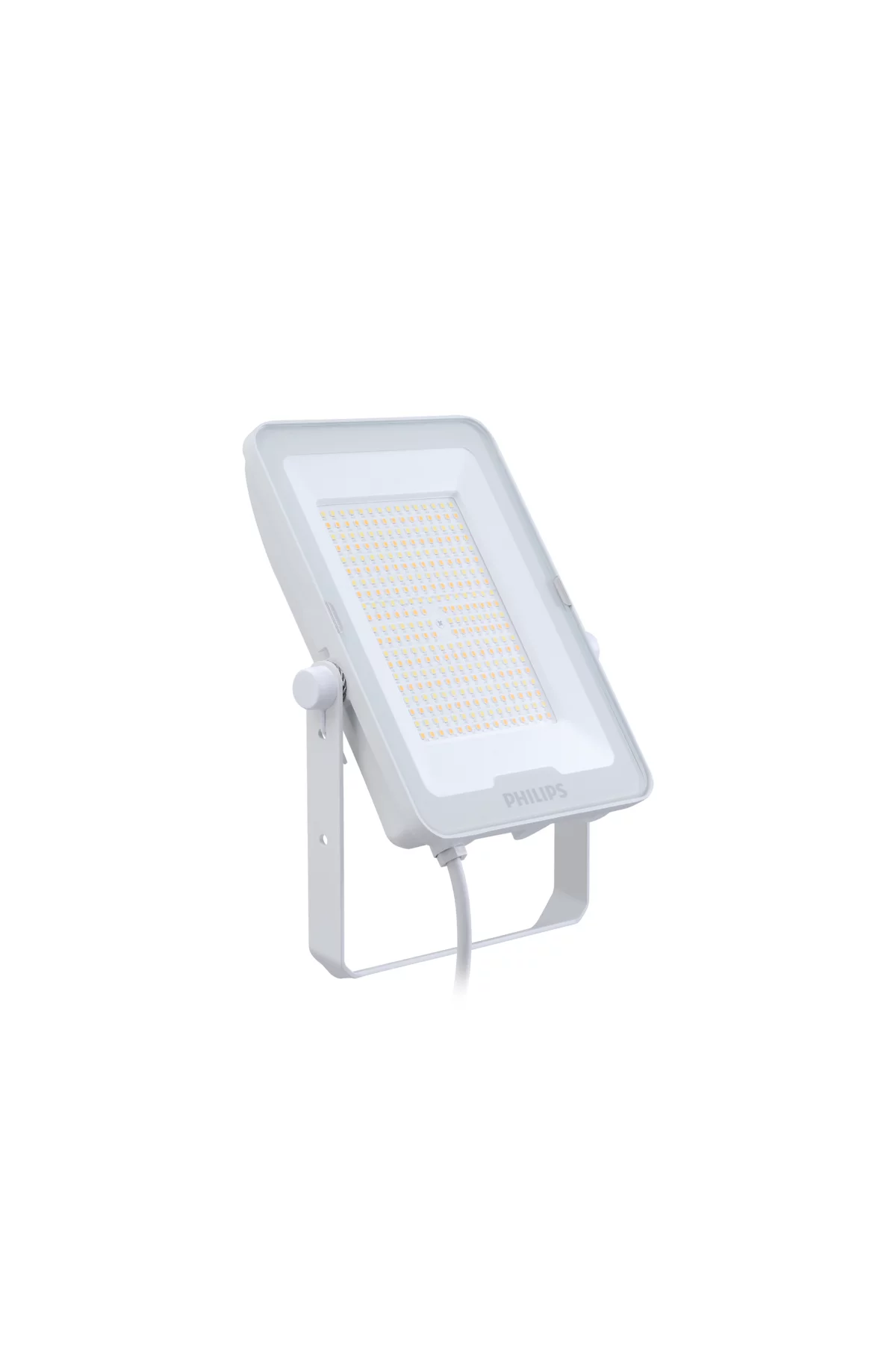

| 911401866288 | BVP169 LED120/830_40_65PSU 100W SWB WH Ledinaire All-in floodlights, 100 W, 11000 lm, 12000 lm, 3000 K, 4000 K, 6500 K, CRI80, Symmetrical wide beam, IP65 | 11,000|12,000 lm | 100 W | 3000, 4000, 6500 | IP65 | Symmetrical wide beam | |

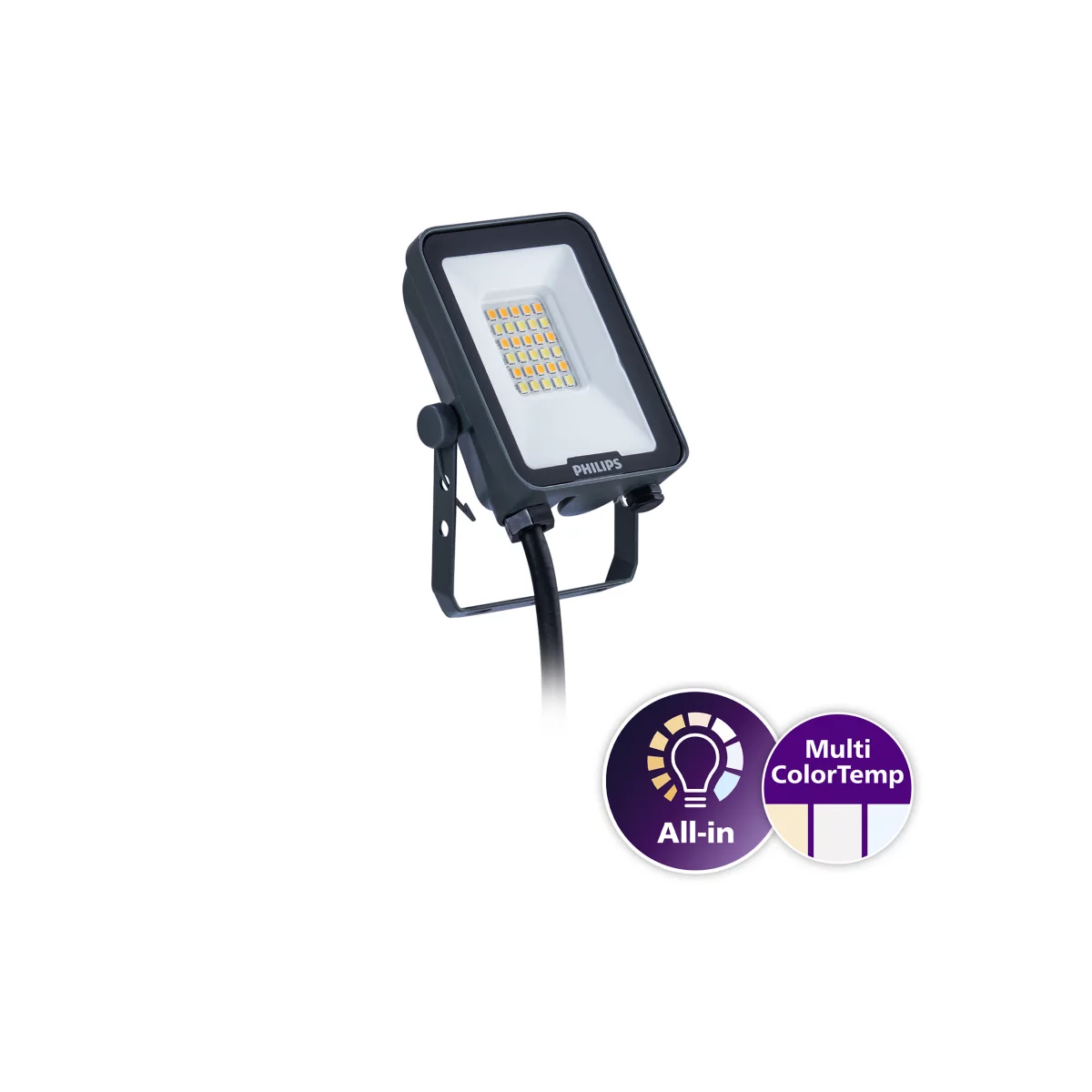

| 911401871386 | BVP167 LED12/830_40_65 PSU 10W SWB Ledinaire All-in floodlights, 10 W, 1100 lm, 1200 lm, 3000 K, 4000 K, 6500 K, CRI80, Symmetrical, IP65 | 1,100|1,200 lm | 10 W | 3000, 4000, 6500 | IP65 | Symmetrical, Symmetric 110⁰ | |
| 911401872386 | BVP167 LED24/830_40_65 PSU 20W SWB Ledinaire All-in floodlights, 20 W, 2200 lm, 2400 lm, 3000 K, 4000 K, 6500 K, CRI80, Symmetrical, IP65 | 2,200|2,400 lm | 20 W | 3000, 4000, 6500 | IP65 | Symmetrical, Symmetric 110⁰ | |
| 911401873386 | BVP167 LED36/830_40_65 PSU 30W SWB Ledinaire All-in floodlights, 30 W, 3300 lm, 3600 lm, 3000 K, 4000 K, 6500 K, CRI80, Symmetrical, IP65 | 3,300|3,600 lm | 30 W | 3000, 4000, 6500 | IP65 | Symmetrical, Symmetric 110⁰ | |
| 911401874386 | BVP167 LED60/830_40_65 PSU 50W SWB Ledinaire All-in floodlights, 50 W, 5500 lm, 6000 lm, 3000 K, 4000 K, 6500 K, CRI80, Symmetrical, IP65 | 5,500|6,000 lm | 50 W | 3000, 4000, 6500 | IP65 | Symmetrical, Symmetric 110⁰ | |
| 911401875386 | BVP167 LED84/830_40_65 PSU 70W SWB Ledinaire All-in floodlights, 70 W, 7700 lm, 8400 lm, 3000 K, 4000 K, 6500 K, CRI80, Symmetrical, IP65 | 7,700|8,400 lm | 70 W | 3000, 4000, 6500 | IP65 | Symmetrical, Symmetric 110⁰ | |
| 911401875586 | BVP167 LED84/830_40_65 PSU 65W SWB PH Ledinaire All-in floodlights, 65 W, 7700 lm, 8400 lm, 3000 K, 4000 K, 6500 K, CRI80, Symmetrical, IP65 | 7,700|8,400 lm | 65 W | 3000, 4000, 6500 | IP65 | Symmetrical, Symmetric 110⁰ | |
| 911401876386 | BVP169 LED120/830_40_65 PSU 100W SWB Ledinaire All-in floodlights, 100 W, 11000 lm, 12000 lm, 3000 K, 4000 K, 6500 K, CRI80, Symmetrical, IP65 | 11,000|12,000 lm | 100 W | 3000, 4000, 6500 | IP65 | Symmetrical, Symmetric 110⁰ | |
| 911401876586 | BVP169 LED120/830_40_65 PSU 90W SWB PH Ledinaire All-in floodlights, 90 W, 11000 lm, 12000 lm, 3000 K, 4000 K, 6500 K, CRI80, Symmetrical, IP65 | 11,000|12,000 lm | 90 W | 3000, 4000, 6500 | IP65 | Symmetrical, Symmetric 110⁰ | |
| 911401877386 | BVP169 LED180/830_40_65 PSU 150W SWB Ledinaire All-in floodlights, 150 W, 16500 lm, 18000 lm, 3000 K, 4000 K, 6500 K, CRI80, Symmetrical, IP65 | 16,500|18,000 lm | 150 W | 3000, 4000, 6500 | IP65 | Symmetrical, Symmetric 110⁰ | |
| 911401877586 | BVP169 LED180/830_40_65 PSU 135W SWB PH Ledinaire All-in floodlights, 135 W, 16500 lm, 18000 lm, 3000 K, 4000 K, 6500 K, CRI80, Symmetrical, IP65 | 16,500|18,000 lm | 135 W | 3000, 4000, 6500 | IP65 | Symmetrical, Symmetric 110⁰ | |
| 911401878386 | BVP169 LED240/830_40_65 PSU 200W SWB Ledinaire All-in floodlights, 200 W, 22000 lm, 24000 lm, 3000 K, 4000 K, 6500 K, CRI80, Symmetrical, IP65 | 22,000|24,000 lm | 200 W | 3000, 4000, 6500 | IP65 | Symmetrical, Symmetric 110⁰ | |
| 911401878586 | BVP169 LED240/830_40_65 PSU 180W SWB PH Ledinaire All-in floodlights, 180 W, 22000 lm, 24000 lm, 3000 K, 4000 K, 6500 K, CRI80, Symmetrical, IP65 | 22,000|24,000 lm | 180 W | 3000, 4000, 6500 | IP65 | Symmetrical, Symmetric 110⁰ | |
| 911401883386 | BVP167 LED73/830_40_65 PSU 65W AWB Ledinaire All-in floodlights, 65 W, 7000 lm, 7350 lm, 3000 K, 4000 K, 6500 K, CRI80, Asymmetrical, IP65 | 7,000|7,350 lm | 65 W | 3000, 4000, 6500 | IP65 | Asymmetrical, Assymetric Beam angle | |
| 911401883586 | BVP167 LED73/830_40_65 PSU 65W AWB PH Ledinaire All-in floodlights, 65 W, 7000 lm, 7350 lm, 3000 K, 4000 K, 6500 K, CRI80, Asymmetrical, IP65 | 7,000|7,350 lm | 65 W | 3000, 4000, 6500 | IP65 | Asymmetrical, Assymetric Beam angle | |
| 911401884386 | BVP169 LED105/830_40_65 PSU 90W AWB Ledinaire All-in floodlights, 90 W, 10000 lm, 10500 lm, 3000 K, 4000 K, 6500 K, CRI80, Asymmetrical, IP65 | 10,000|10,500 lm | 90 W | 3000, 4000, 6500 | IP65 | Asymmetrical, Assymetric Beam angle | |
| 911401884586 | BVP169 LED105/830_40_65 PSU 90W AWB PH Ledinaire All-in floodlights, 90 W, 10000 lm, 10500 lm, 3000 K, 4000 K, 6500 K, CRI80, Asymmetrical, IP65 | 10,000|10,500 lm | 90 W | 3000, 4000, 6500 | IP65 | Asymmetrical, Assymetric Beam angle | |
| 911401885386 | BVP169 LED157/830_40_65 PSU 135W AWB Ledinaire All-in floodlights, 135 W, 15000 lm, 15750 lm, 3000 K, 4000 K, 6500 K, CRI80, Asymmetrical, IP65 | 15,000|15,750 lm | 135 W | 3000, 4000, 6500 | IP65 | Asymmetrical, Assymetric Beam angle | |
| 911401885586 | BVP169 LED157/830_40_65 PSU 135W AWB PH Ledinaire All-in floodlights, 135 W, 15000 lm, 15750 lm, 3000 K, 4000 K, 6500 K, CRI80, Asymmetrical, IP65 | 15,000|15,750 lm | 135 W | 3000, 4000, 6500 | IP65 | Asymmetrical, Assymetric Beam angle | |
| 911401886386 | BVP169 LED210/830_40_65 PSU 180W AWB Ledinaire All-in floodlights, 180 W, 20000 lm, 21000 lm, 3000 K, 4000 K, 6500 K, CRI80, Asymmetrical, IP65 | 20,000|21,000 lm | 180 W | 3000, 4000, 6500 | IP65 | Asymmetrical, Assymetric Beam angle | |
| 911401886586 | BVP169 LED210/830_40_65 PSU 180W AWB PH Ledinaire All-in floodlights, 180 W, 20000 lm, 21000 lm, 3000 K, 4000 K, 6500 K, CRI80, Asymmetrical, IP65 | 20,000|21,000 lm | 180 W | 3000, 4000, 6500 | IP65 | Asymmetrical, Assymetric Beam angle | |
| 911401891386 | BVP167 LED12/830_40_65 PSU 10W SWB MDU Ledinaire All-in floodlights, 10 W, 1100 lm, 1200 lm, 3000 K, 4000 K, 6500 K, CRI80, Sensor-based on/off, Symmetrical, MDU1, IP65 | 1,100|1,200 lm | 10 W | 3000, 4000, 6500 | IP65 | Symmetrical, Symmetric 110⁰ | |
| 911401892386 | BVP167 LED24/830_40_65 PSU 20W SWB MDU Ledinaire All-in floodlights, 20 W, 2200 lm, 2400 lm, 3000 K, 4000 K, 6500 K, CRI80, Sensor-based on/off, Symmetrical, MDU1, IP65 | 2,200|2,400 lm | 20 W | 3000, 4000, 6500 | IP65 | Symmetrical, Symmetric 110⁰ | |
| 911401893386 | BVP167 LED36/830_40_65 PSU 30W SWB MDU Ledinaire All-in floodlights, 30 W, 3300 lm, 3600 lm, 3000 K, 4000 K, 6500 K, CRI80, Sensor-based on/off, Symmetrical, MDU1, IP65 | 3,300|3,600 lm | 30 W | 3000, 4000, 6500 | IP65 | Symmetrical, Symmetric 110⁰ | |
| 911401894386 | BVP167 LED60/830_40_65 PSU 50W SWB MDU Ledinaire All-in floodlights, 50 W, 5500 lm, 6000 lm, 3000 K, 4000 K, 6500 K, CRI80, Sensor-based on/off, Symmetrical, MDU1, IP65 | 5,500|6,000 lm | 50 W | 3000, 4000, 6500 | IP65 | Symmetrical, Symmetric 110⁰ |
911401865988
BVP167 LED24/830_40_65PSU 20W SWB WH
911401866088
BVP167 LED36/830_40_65PSU 30W SWB WH
911401866188
BVP167 LED60/830_40_65PSU 50W SWB WH
911401866288
BVP169 LED120/830_40_65PSU 100W SWB WH
911401871386
BVP167 LED12/830_40_65 PSU 10W SWB
911401872386
BVP167 LED24/830_40_65 PSU 20W SWB
911401873386
BVP167 LED36/830_40_65 PSU 30W SWB
911401874386
BVP167 LED60/830_40_65 PSU 50W SWB
911401875386
BVP167 LED84/830_40_65 PSU 70W SWB
911401875586
BVP167 LED84/830_40_65 PSU 65W SWB PH
911401876386
BVP169 LED120/830_40_65 PSU 100W SWB
911401876586
BVP169 LED120/830_40_65 PSU 90W SWB PH
911401877386
BVP169 LED180/830_40_65 PSU 150W SWB
911401877586
BVP169 LED180/830_40_65 PSU 135W SWB PH
911401878386
BVP169 LED240/830_40_65 PSU 200W SWB
911401878586
BVP169 LED240/830_40_65 PSU 180W SWB PH
911401883386
BVP167 LED73/830_40_65 PSU 65W AWB
911401883586
BVP167 LED73/830_40_65 PSU 65W AWB PH
911401884386
BVP169 LED105/830_40_65 PSU 90W AWB
911401884586
BVP169 LED105/830_40_65 PSU 90W AWB PH
911401885386
BVP169 LED157/830_40_65 PSU 135W AWB
911401885586
BVP169 LED157/830_40_65 PSU 135W AWB PH
911401886386
BVP169 LED210/830_40_65 PSU 180W AWB
911401886586
BVP169 LED210/830_40_65 PSU 180W AWB PH
911401891386
BVP167 LED12/830_40_65 PSU 10W SWB MDU
911401892386
BVP167 LED24/830_40_65 PSU 20W SWB MDU
911401893386
BVP167 LED36/830_40_65 PSU 30W SWB MDU
911401894386
BVP167 LED60/830_40_65 PSU 50W SWB MDU
