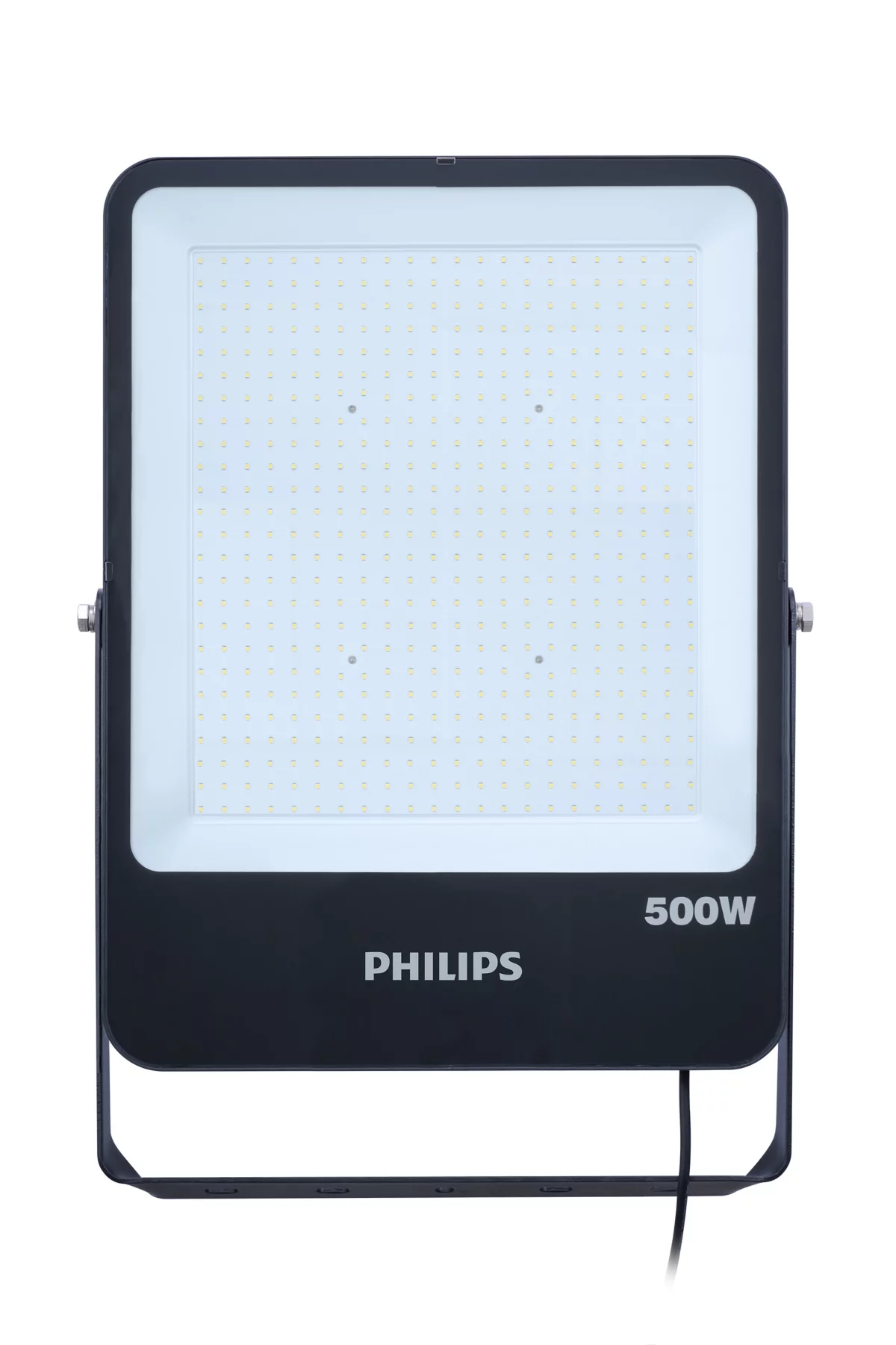

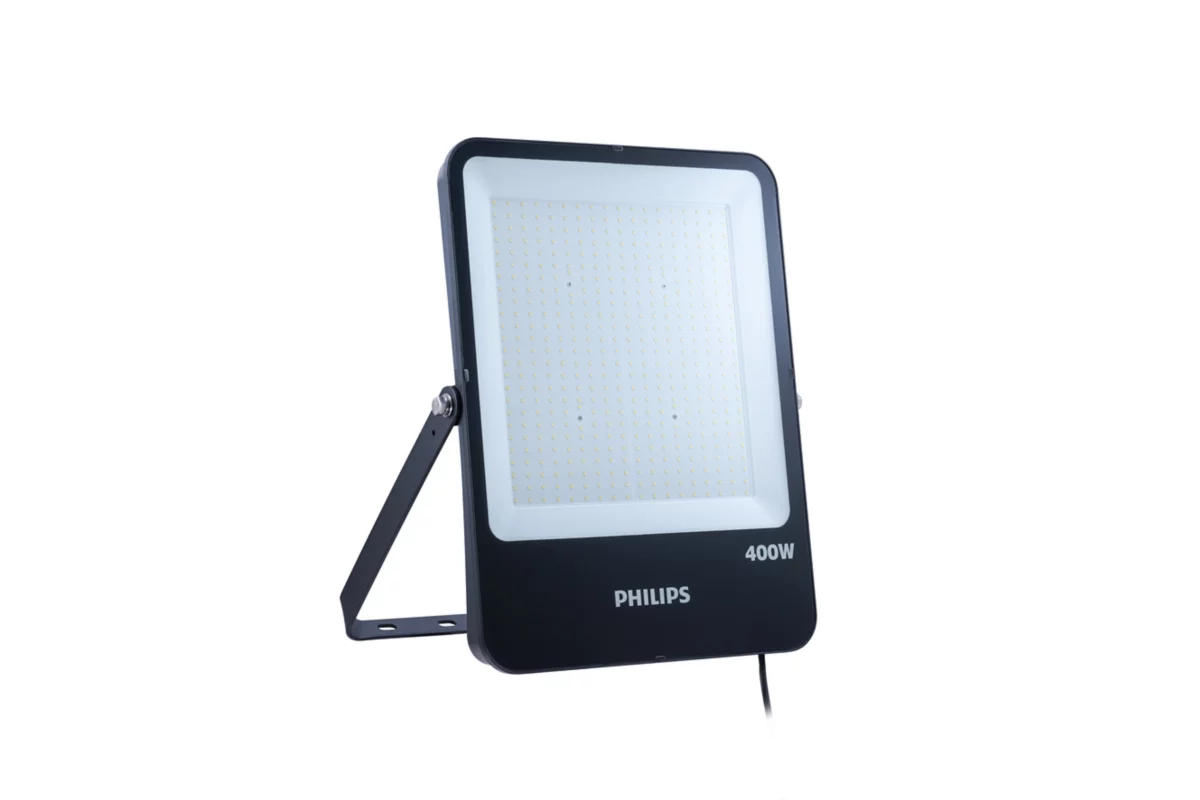

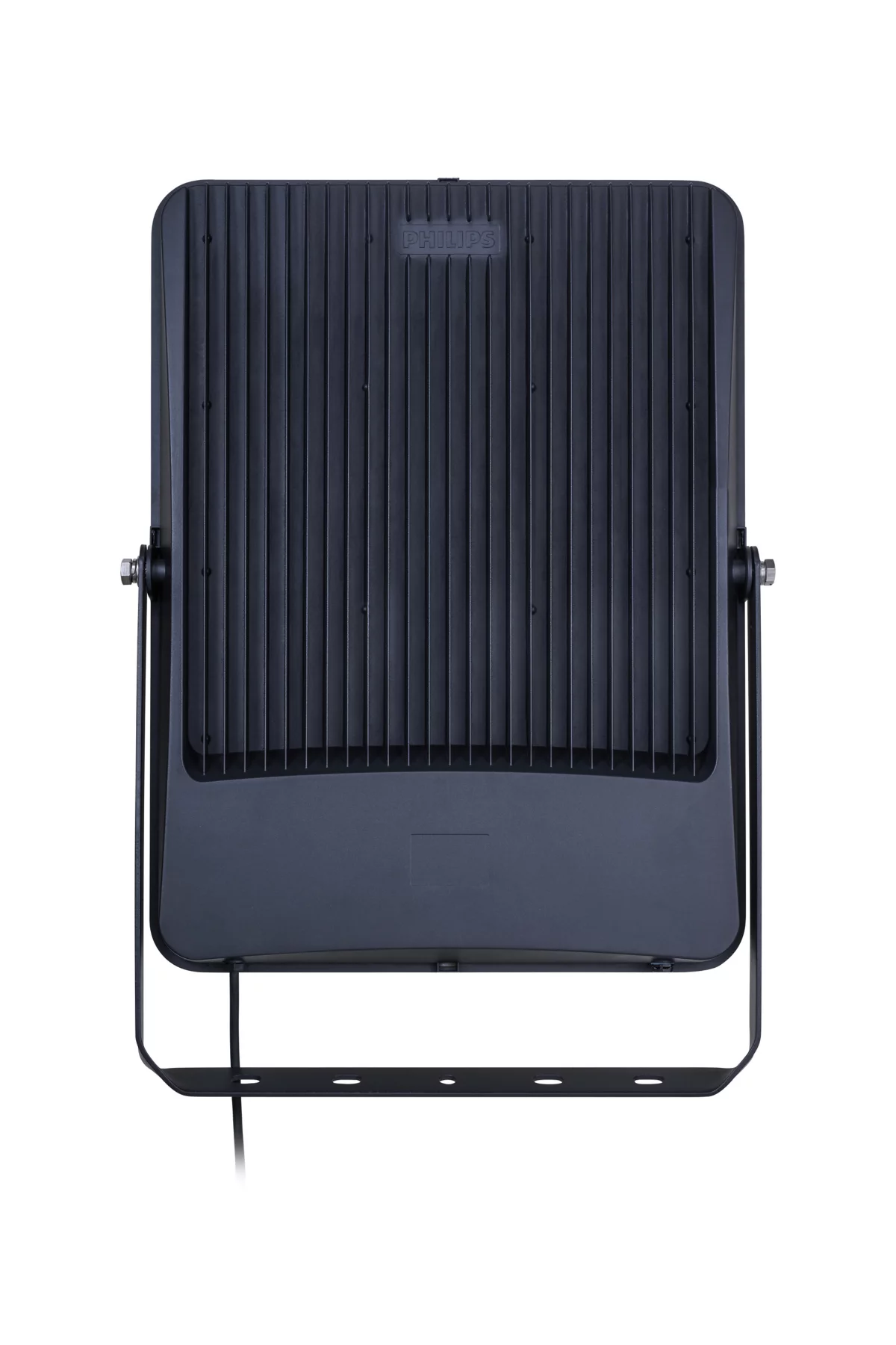

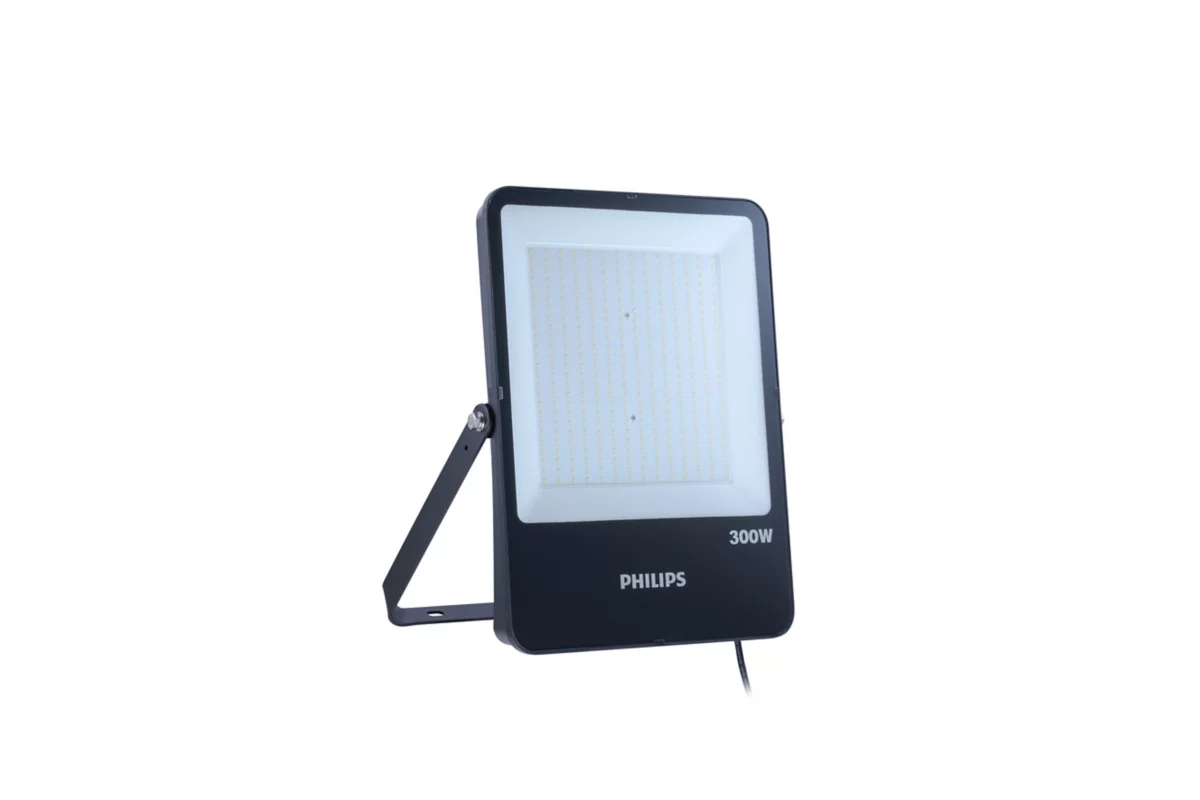

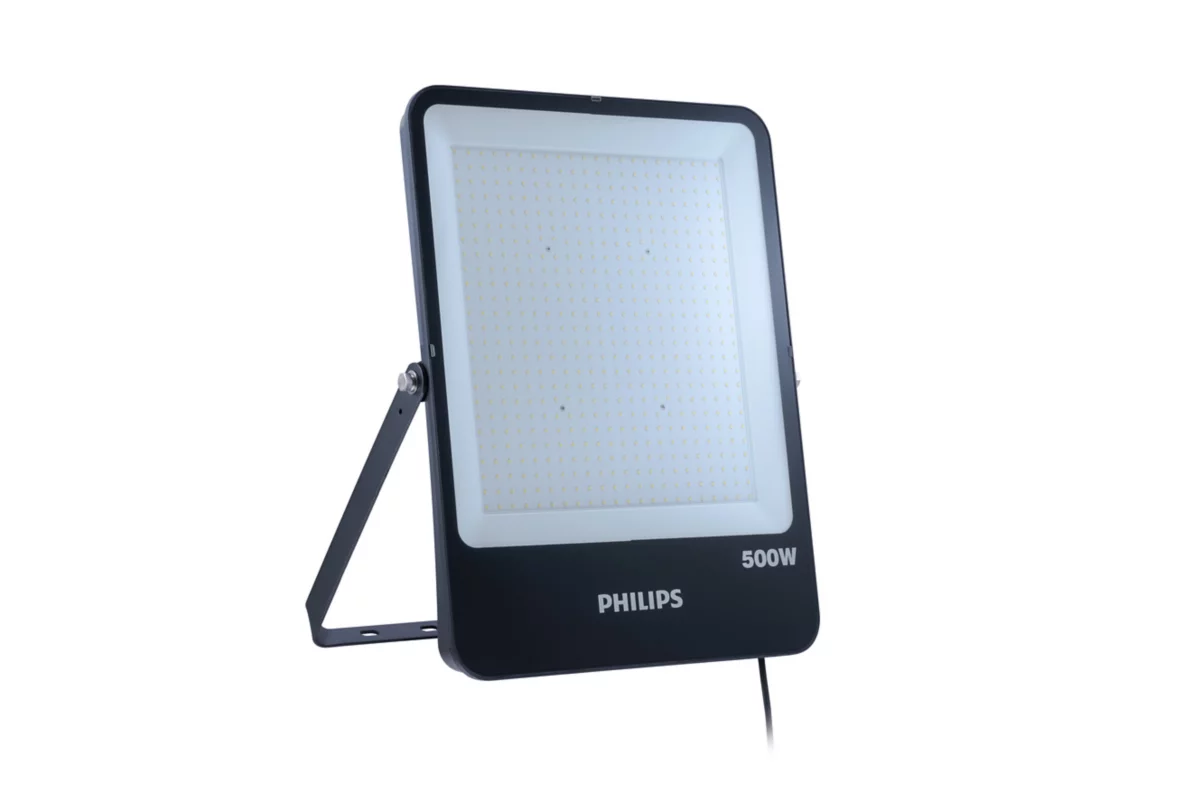

BVP231 / BVP232 / BVP233
The Smartbright high wattage Floodlighting is a basic and easy to use floodlight with a focused wattage option (300,400,500W), which offers an ideal solution for various outdoor applications such as car park , general outdoor areas, parks and playgrounds etc
List the order codes — we prepare a quotation and check availability. · 3 order codes

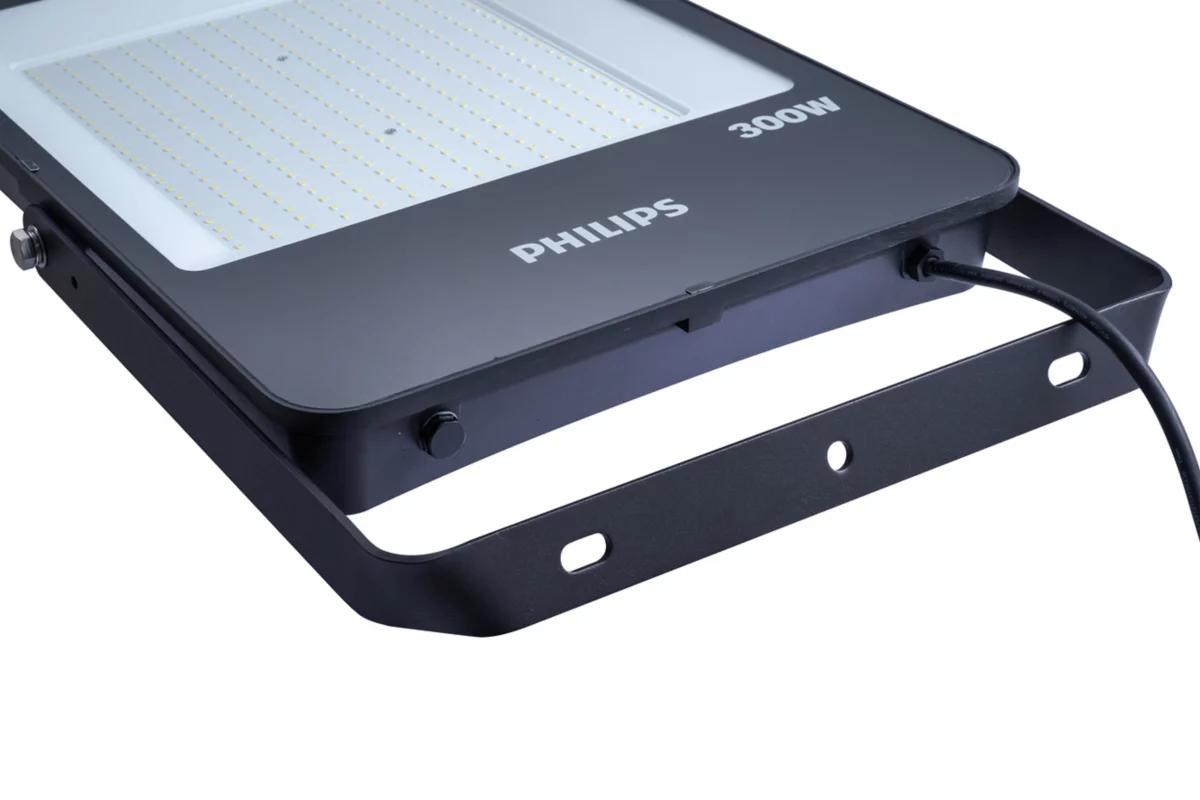

The Smartbright high wattage Floodlighting is a basic and easy to use floodlight with a focused wattage option (300,400,500W), which offers an ideal solution for various outdoor applications such as car park , general outdoor areas, parks and playgrounds etc. The luminaire is easy to install thanks to its U-shaped universal mounting bracket. In addition, the luminaire is designed under global-recognized performance and safety criteria, which delivers outstanding user experience for customers.
Every version of the family from the official catalogue. Click PDF to download the datasheet of a specific order code.
| Order code | Name | Luminous flux | Wattage | CCT | IP | Optic | |
|---|---|---|---|---|---|---|---|
| 911401831187 | BVP231 LED360/CW PSU 300W 120-277V SWB SmartBright LED Floodlight Max, 36000 lm, 300 W, 865 cool daylight, 110°, Safety class I, Mounting bracket adjustable | 36,000 lm | 300 W | 6500 | IP65 | Symmetric 110⁰ | |
| 911401831287 | BVP232 LED480/CW PSU 400W 120-277V SWB SmartBright LED Floodlight Max, 48000 lm, 400 W, 865 cool daylight, 110°, Safety class I, Mounting bracket adjustable | 48,000 lm | 400 W | 6500 | IP65 | Symmetric 110⁰ | |
| 911401831387 | BVP233 LED600/CW PSU 500W 120-277V SWB SmartBright LED Floodlight Max, 60000 lm, 500 W, 865 cool daylight, 110°, Safety class I, Mounting bracket adjustable | 60,000 lm | 500 W | 6500 | IP65 | Symmetric 110⁰ |
911401831187
BVP231 LED360/CW PSU 300W 120-277V SWB
911401831287
BVP232 LED480/CW PSU 400W 120-277V SWB
911401831387
BVP233 LED600/CW PSU 500W 120-277V SWB
